Zone Offroad

3-Inch Suspension Lift Kit Jeep Wrangler JK 4-Door 07-11 by Zone Offroad

3-Inch Suspension Lift Kit Jeep Wrangler JK 4-Door 07-11 by Zone Offroad

$747.75 USD
$747.75 USD
Sale Sold out
Shock Option

OVERVIEW

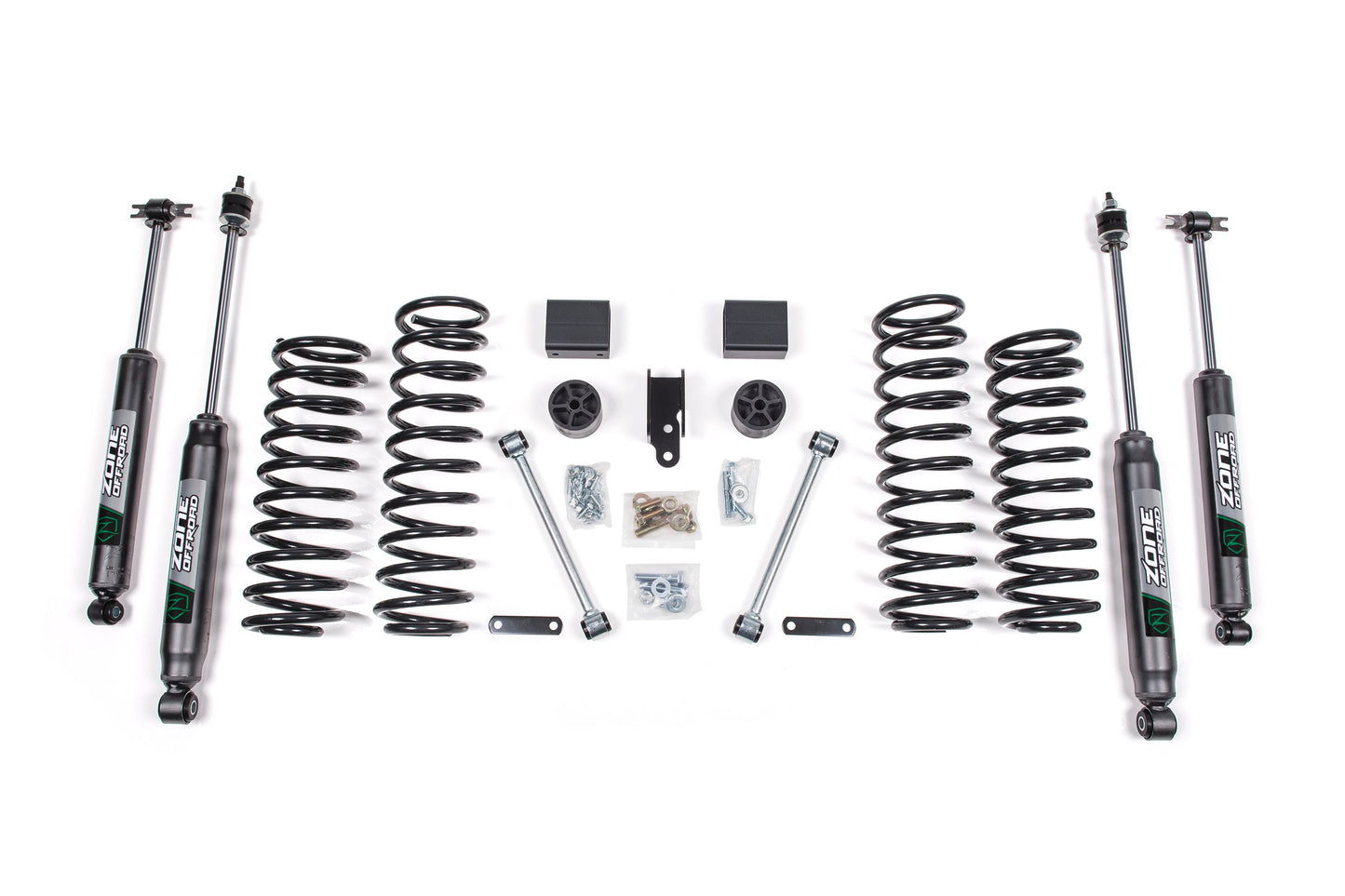

Get the look and the performance you want for your Jeep. This 3" Lift Kit for your 4WD 2007 - 2011 Jeep Wrangler (JK) will clear 35" tires and includes heavy-duty coil spacers that offer a dramatic improvement in both ground clearance and wheel travel.

Features & Benefits

  • Brake line relocation brackets increase wheel travel and allow use of factory brake lines.
  • Bump stop extensions properly limit up-travel, protecting your vehicle.
  • Full length replacement coil springs add additional ride height while maintaining ride quality.
  • Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll.
  • Rear track bar bracket correctly positions rear axle under vehicle.

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 16 x 8 and 4.5 in. Backspace
  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace

Shock Option

Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

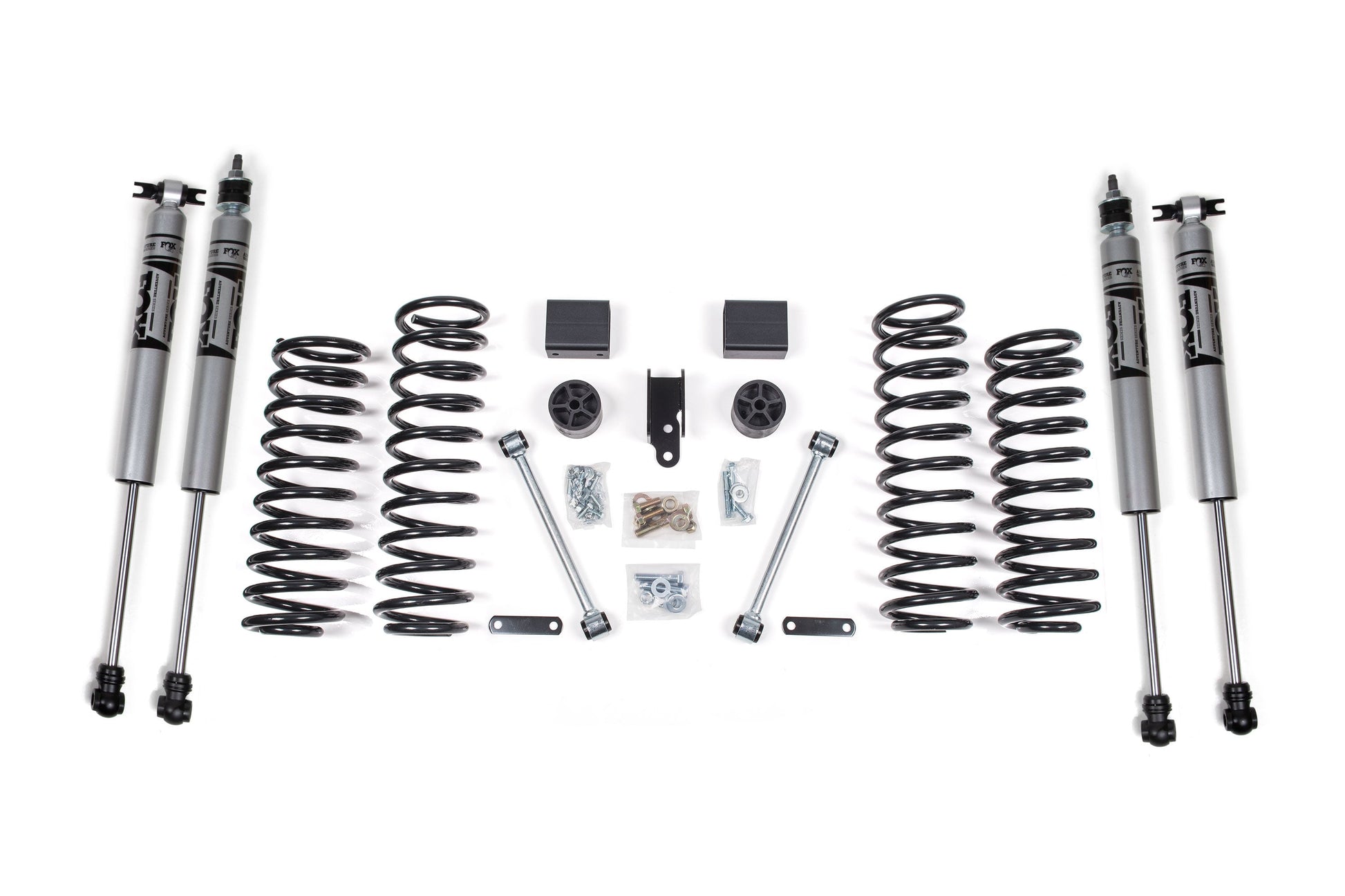

FOX 2.0 Adventure Series

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

IMPORTANT NOTES

  1. Will work on Rubicon models.
  2. Stock Control Arms? Alignment cam locks will add 2 degrees of caster when used on stock length control arms, which will better align your wheels.


Wheels / Tires:

  • Factory wheels cannot be reinstalled with lift kit due to rear sway bar interference. Follow recommended wheel/tire specifications for proper clearance.

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

4.5 hrs

Difficulty Level :

Moderately Easy

Tools Needed :

Wrenches: Standard

SPECIFICATION

  • Front Lift Method : Coil Spring
  • Front Lift Height : 3"
  • Rear Lift Method : Coil Spring
  • Rear Lift Height : 3"
  • Shocks Included : Yes

FITMENT

Year Make Model Submodel Drive Type Fuel Type Position Lift Height
2007 Jeep Wrangler Unlimited Rubicon ALL ALL Front and Rear 3"
2007 Jeep Wrangler Unlimited Sahara ALL ALL Front and Rear 3"
2007 Jeep Wrangler Unlimited X ALL ALL Front and Rear 3"
2008 Jeep Wrangler Unlimited Rubicon ALL ALL Front and Rear 3"
2008 Jeep Wrangler Unlimited Sahara ALL ALL Front and Rear 3"
2008 Jeep Wrangler Unlimited X ALL ALL Front and Rear 3"
2009 Jeep Wrangler Unlimited Rubicon ALL ALL Front and Rear 3"
2009 Jeep Wrangler Unlimited Sahara ALL ALL Front and Rear 3"
2009 Jeep Wrangler Unlimited X ALL ALL Front and Rear 3"
2010 Jeep Wrangler Unlimited Mountain ALL ALL Front and Rear 3"
2010 Jeep Wrangler Unlimited Rubicon ALL ALL Front and Rear 3"
2010 Jeep Wrangler Unlimited Sahara ALL ALL Front and Rear 3"
2010 Jeep Wrangler Unlimited Sport ALL ALL Front and Rear 3"
2010 Jeep Wrangler Unlimited X ALL ALL Front and Rear 3"
2011 Jeep Wrangler Unlimited 70th Anniversary ALL ALL Front and Rear 3"
2011 Jeep Wrangler Unlimited Rubicon ALL ALL Front and Rear 3"
2011 Jeep Wrangler Unlimited Sahara ALL ALL Front and Rear 3"
2011 Jeep Wrangler Unlimited Sport ALL ALL Front and Rear 3"
2011 Jeep Wrangler Unlimited X ALL ALL Front and Rear 3"
