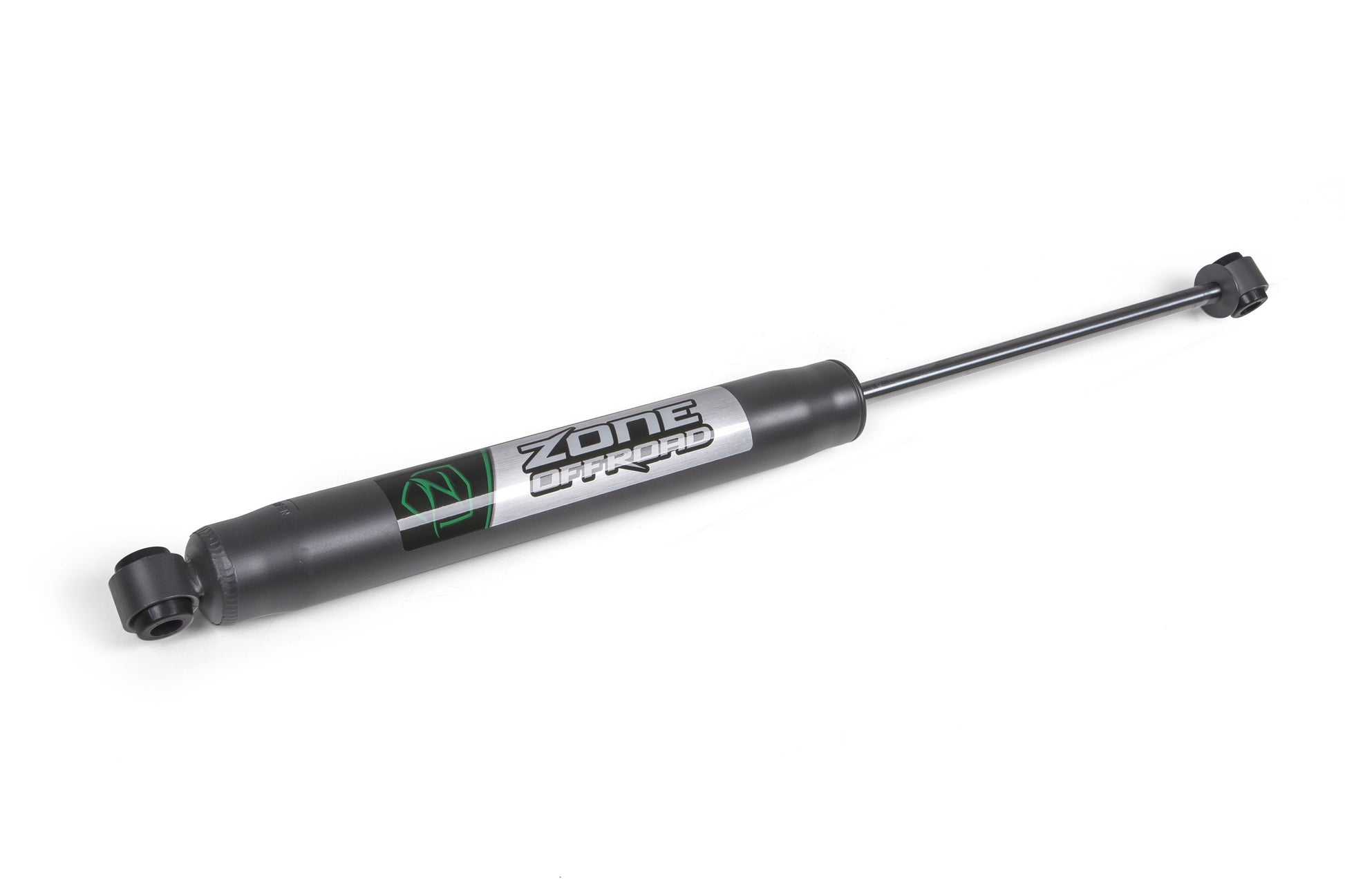

Nitro Shock Vehicle Specific 26.50 x 15.60 x 2-3/8 - S1/EB1 by Zone Offroad

OVERVIEW

Zone Nitro Series shock absorber offers stock-like control and performance with fully displaced valving for improved compression and extension travel. This vehicle specific valving is pressurized with 50 psi nitrogen gas; this gas charge ensures split second response and reduced aeration. Combine these features with the special Fluon-banded piston and this shock is built to perform! Shock absorbers are sold individually and include bushings/sleeves.

Features & Benefits

• Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance
• Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft
• Bushings and sleeves included for easy, direct replacement installation
• Shock absorbers are sold individually

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

30 mins

Difficulty Level :

Easy

Tools Needed :

Wrenches: Standard

SPECIFICATION

• Adjustable Damping : No
• Compressed Length : 15.55
• Extended Length : 26.17
• Finish : Matte Black
• Gas Charged : Yes
• Lower Mount Code : EB1
• Lower Mount Type : Eyelet
• Position : Front or Rear
• Shaft Diameter : 5/8"
• Travel Length : 10.62
• Type : Twin Tube
• Upper Mount Code : S1
• Upper Mount Type : Stem

FITMENT

Year	Make	Model	Submodel	Drive Type	Fuel Type	Position	Lift Height
2005	Toyota	Tacoma	Base	4WD	ALL	Rear	3"
2006	Toyota	Tacoma	Base	4WD	ALL	Rear	3"
2007	Toyota	Tacoma	Base	4WD	ALL	Rear	3"
2008	Toyota	Tacoma	Base	4WD	ALL	Rear	3"
2009	Toyota	Tacoma	Base	4WD	ALL	Rear	3"
2010	Toyota	Tacoma	Base	4WD	ALL	Rear	3"
2010	Toyota	Tacoma	TRD Sport	4WD	ALL	Rear	3"
2011	Toyota	Tacoma	Base	4WD	ALL	Rear	3"
2011	Toyota	Tacoma	TRD Sport	4WD	ALL	Rear	3"
2012	Toyota	Tacoma	Base	4WD	ALL	Rear	3"
2012	Toyota	Tacoma	TRD Sport	4WD	ALL	Rear	3"
2013	Toyota	Tacoma	Base	4WD	ALL	Rear	3"
2013	Toyota	Tacoma	TRD Sport	4WD	ALL	Rear	3"
2014	Toyota	Tacoma	Base	4WD	ALL	Rear	3"
2014	Toyota	Tacoma	TRD Sport	4WD	ALL	Rear	3"
2015	Toyota	Tacoma	Base	4WD	ALL	Rear	3"
2015	Toyota	Tacoma	TRD Pro	ALL	ALL	Rear	3"
2015	Toyota	Tacoma	TRD Sport	4WD	ALL	Rear	3"
2016	Toyota	Tacoma	ALL	4WD	ALL	Rear	3"
2017	Toyota	Tacoma	ALL	4WD	ALL	Rear	3"
2018	Toyota	Tacoma	ALL	4WD	ALL	Rear	3"
2019	Toyota	Tacoma	ALL	4WD	ALL	Rear	3"
2020	Toyota	Tacoma	ALL	4WD	ALL	Rear	3"
