HD Adjustable Front Track Bar Jeep Wrangler JK 07-18 by JKS Manufacturing

HD Adjustable Front Track Bar Jeep Wrangler JK 07-18 by JKS Manufacturing

$255.95 USD
$255.95 USD
Sale Sold out

OVERVIEW

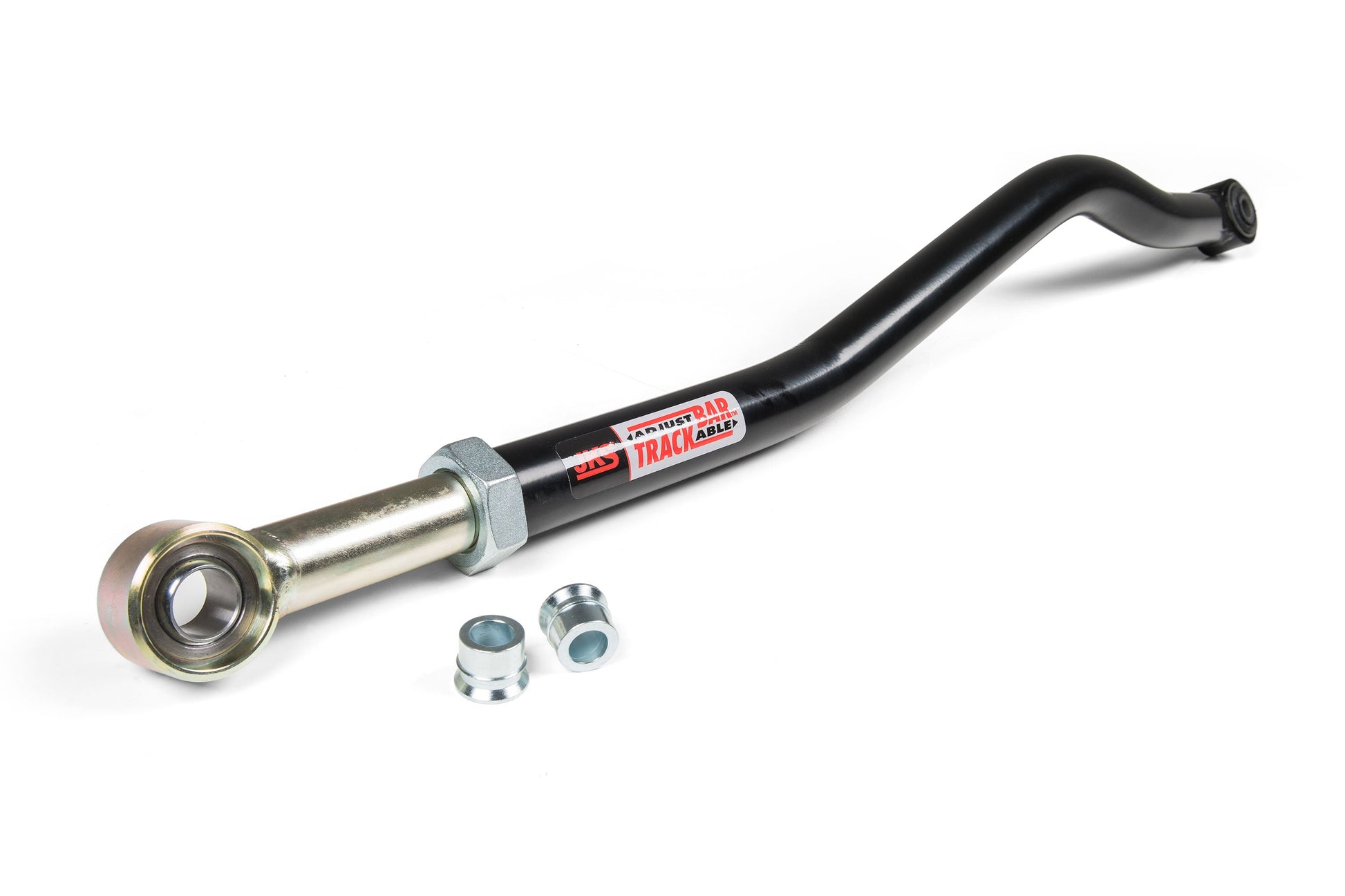

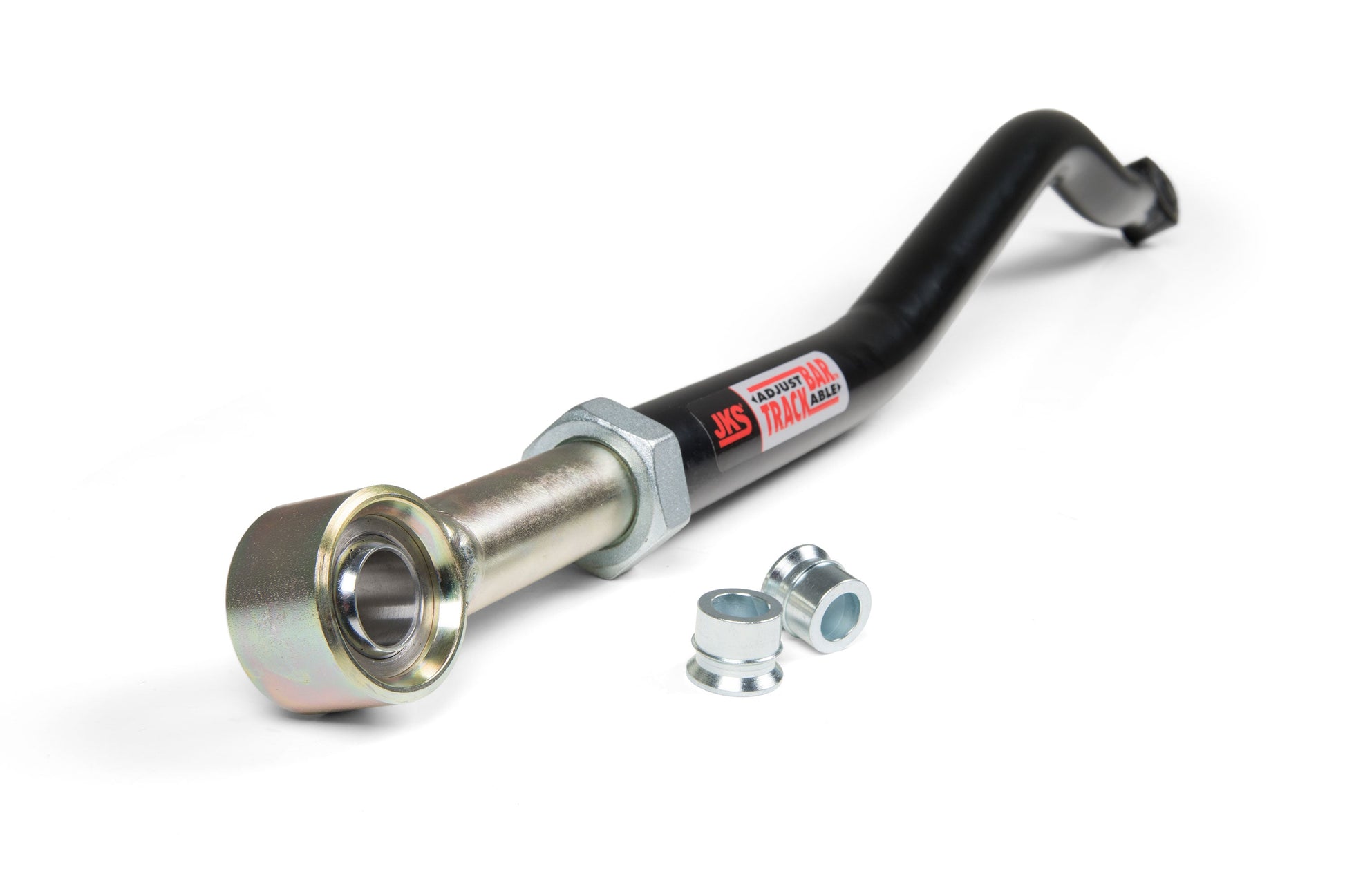

Upgrade the front suspension of your Jeep Wrangler JK with the JKS HD adjustable track bar. Modern JK suspension technology have increased droop travel to the point that the axle bushing of the track bar was becoming a limiting factor. We have corrected that with the use of a high-misalignment style bushing on the axle end, and the OE style rubber bushing at the frame. Recenter the axle, control lateral forces, and run the longest shocks your springs will allow, this HD bar will do its job to keep you on the trail and out of the shop.

Features & Benefits

  • Superior quality replacement for original fixed length panhard rod
  • Variable length design properly aligns axle housing with chassis and prevents undue stress on related components
  • Fine adjustment threads enable ultra precise axle positioning
  • Extremely strong DOM tube construction utilizes OE bends for correct geometry and clearance
  • The replaceable COM bearing has a self-lubricating, injection molded race and is rated to 42,000lbs static load for long life and reliable function
  • Includes high-angle misalignment spacers to maximize the angular travel of the COM end.

Important Notes

Suggested Starting Length - 33.25"
Min. Adjusted Length - 32.2"
Max Adjusted Length - 34.2"
*See Instructions for further details.

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

2 -3hrs

Difficulty Level :

Moderate


Installation Video :

SPECIFICATION

  • Bushings Included : No
  • Lift Height : 0-6.5"
  • Material : Steel

FITMENT

Year Make Model Submodel Drive Type Fuel Type Position Lift Height
2007 Jeep Wrangler ALL ALL ALL N/A
2008 Jeep Wrangler ALL ALL ALL N/A
2009 Jeep Wrangler ALL ALL ALL N/A
2010 Jeep Wrangler ALL ALL ALL N/A
2011 Jeep Wrangler ALL ALL ALL N/A
2012 Jeep Wrangler ALL ALL ALL N/A
2013 Jeep Wrangler ALL ALL ALL N/A
2014 Jeep Wrangler ALL ALL ALL N/A
2015 Jeep Wrangler ALL ALL ALL N/A
2016 Jeep Wrangler ALL ALL ALL N/A
2017 Jeep Wrangler ALL ALL ALL N/A
2018 Jeep Wrangler JK ALL ALL ALL N/A
