Front Control Arm Correction Brackets Fits 2"-4.5" Lift Jeep Wrangler JK 07-18 by JKS Manufacturing

Front Control Arm Correction Brackets Fits 2"-4.5" Lift Jeep Wrangler JK 07-18 by JKS Manufacturing

$185.95 USD
$185.95 USD
Sale Sold out

OVERVIEW

Improve the handling of your lifted Jeep Wrangler JK with JKS Front Control Arm Correction Brackets. Designed for use with 2"-4.5" lift kits the brackets improve control arm operating angle to mimic or improve on factory arm angles as well as improve anti-dive during braking. Lowering the control arm mounting point slightly places the arms closer to the axle mount which corrects caster and geometry caused by the lifted ride height. Two mounting hole positions correct geometry for given lift heights. Heavy duty, 1pc, fully boxed 7GA steel brackets install inside the factory upper and lower control arm mounts with the factory hardware. The fully gusseted design you extra confidence both on and off road. For ultimate performance, Control Arm Correction Brackets can be used with JKS adjustable control arms.

Features & Benefits

  • Correct control arm operating angle and mimic factory suspension geometry.
  • Improve on-road handling and control.
  • Corrects caster for 2"-4.5" of lift.
  • Improves the front drive shaft CV joint operating angles.

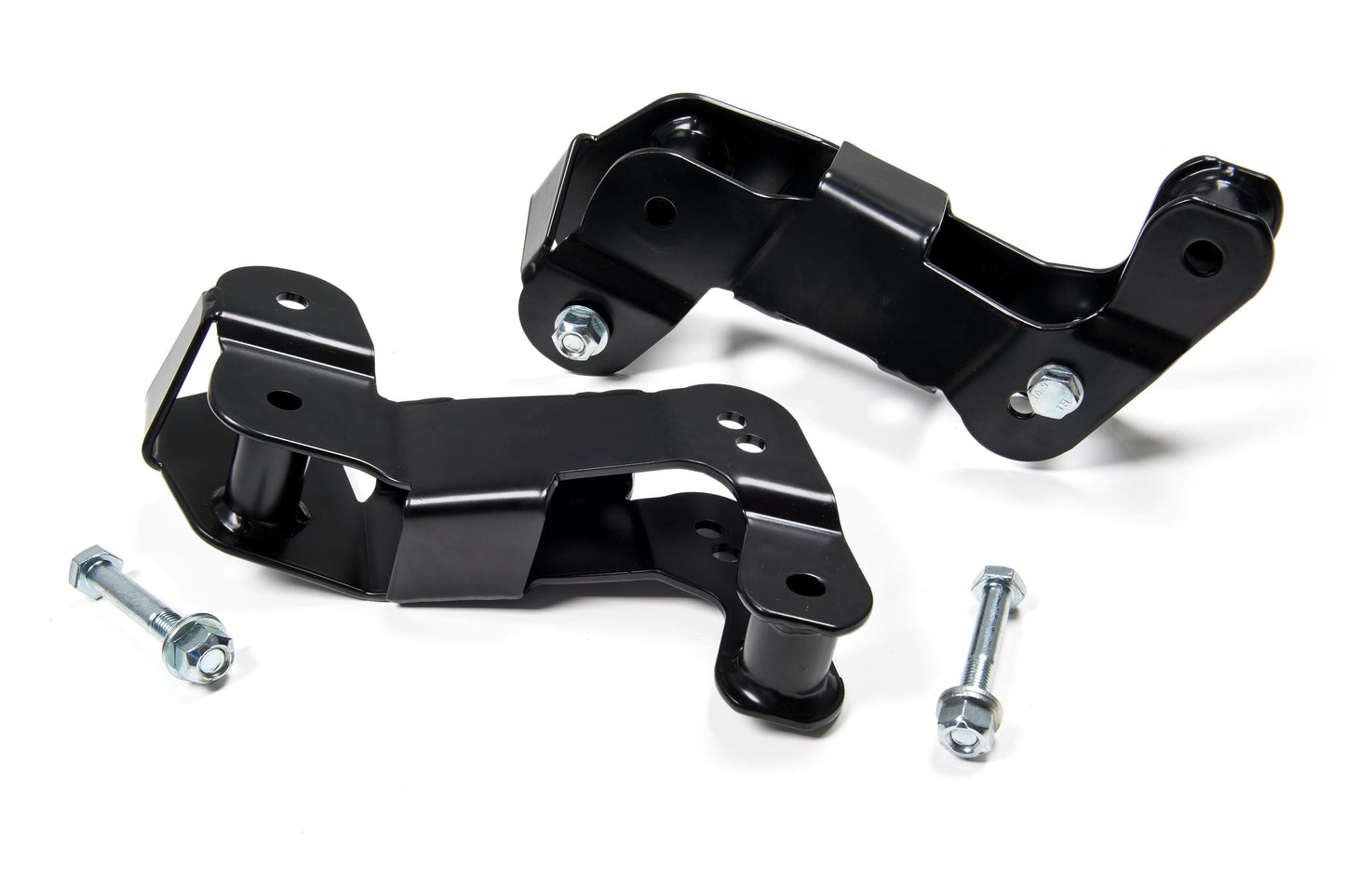

  • Made from heavy-duty 7GA steel and are fully boxed and welded for superior strength.

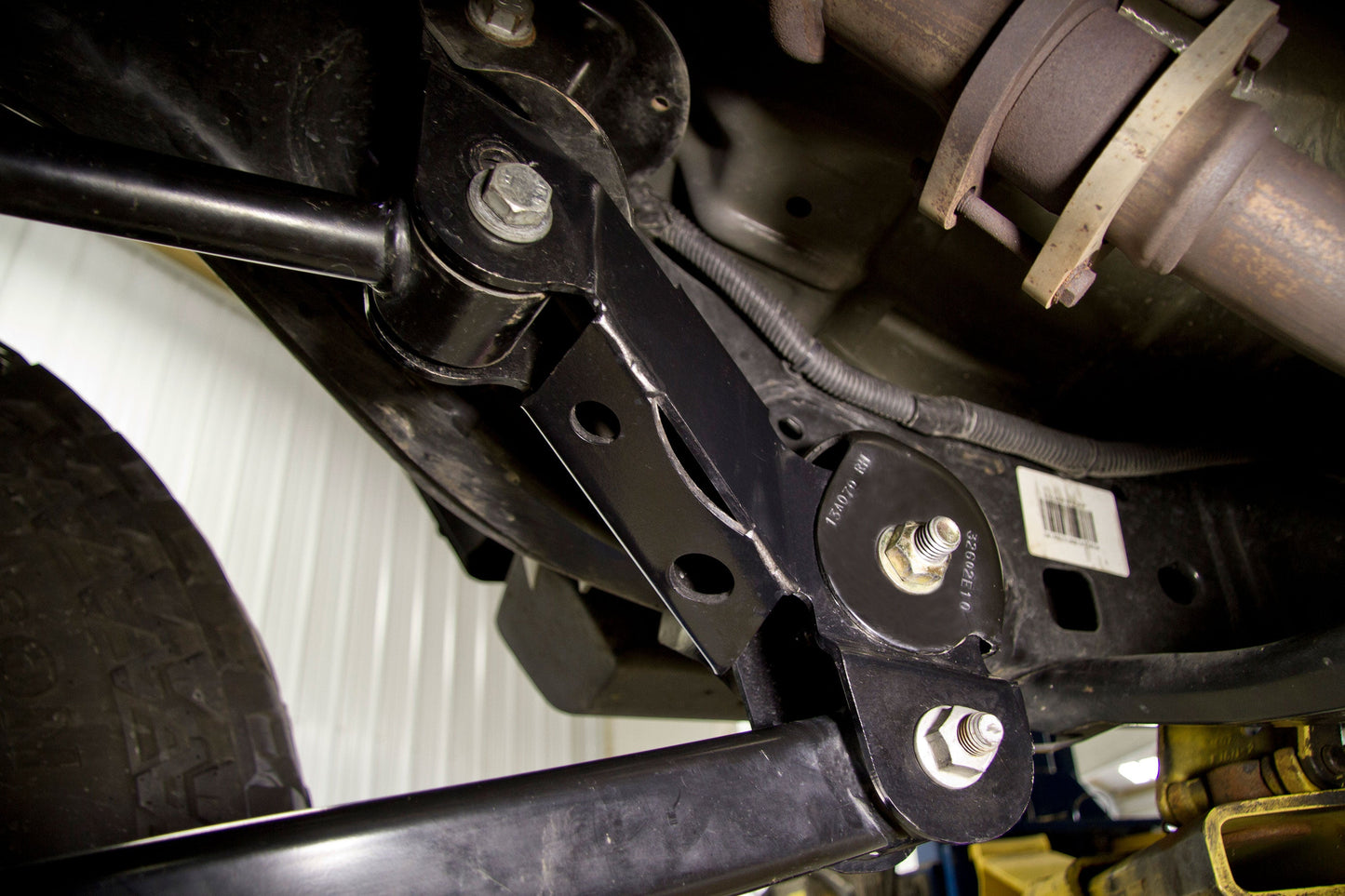

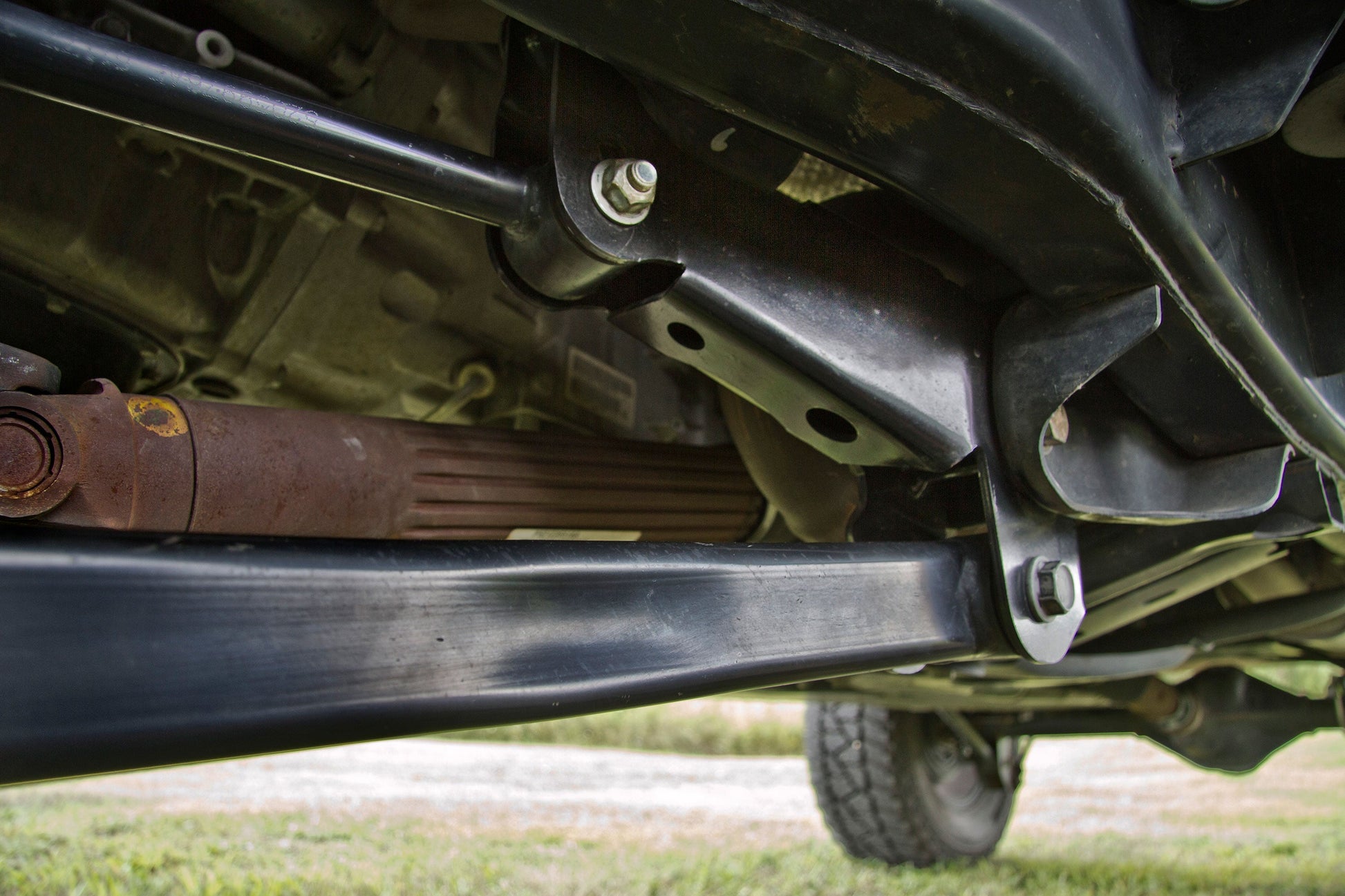

  • Install inside the factory upper and lower control arm mounts with the factory hardware.

Important Notes

  • Requires 2" of front bump stop extension for adequate clearance at full suspension compression. JKS 2" bump stop extension are available separately (#1120)
  • Can be used in conjunction with JKS or other aftermarket control arms that can be set to factory length.
  • Designed for use with 2"+ lift. Ideal lift range is 2"-4.5" but can be used up to 6".
  • Do not combine with any other drop/relocation brackets

INSTALLATION

Installation Guides :

SPECIFICATION

Lift Height : 3-4"

FITMENT

Year Make Model Submodel Drive Type Fuel Type Position Lift Height
2007 Jeep Wrangler ALL ALL ALL N/A
2008 Jeep Wrangler ALL ALL ALL N/A
2009 Jeep Wrangler ALL ALL ALL N/A
2010 Jeep Wrangler ALL ALL ALL N/A
2011 Jeep Wrangler ALL ALL ALL N/A
2012 Jeep Wrangler ALL ALL ALL N/A
2013 Jeep Wrangler ALL ALL ALL N/A
2014 Jeep Wrangler ALL ALL ALL N/A
2015 Jeep Wrangler ALL ALL ALL N/A
2016 Jeep Wrangler ALL ALL ALL N/A
2017 Jeep Wrangler ALL ALL ALL N/A
2018 Jeep Wrangler JK ALL ALL ALL N/A
