- Correct control arm operating angle and mimic factory suspension geometry.
- Improve on-road handling and control.
- Corrects caster for 2"-4.5" of lift. Improves the front drive shaft CV joint operating angles.
- Made from heavy-duty 7GA steel and are fully boxed and welded for superior strength.
- Install inside the factory upper and lower control arm mounts with the factory hardware.
JKS Manufacturing

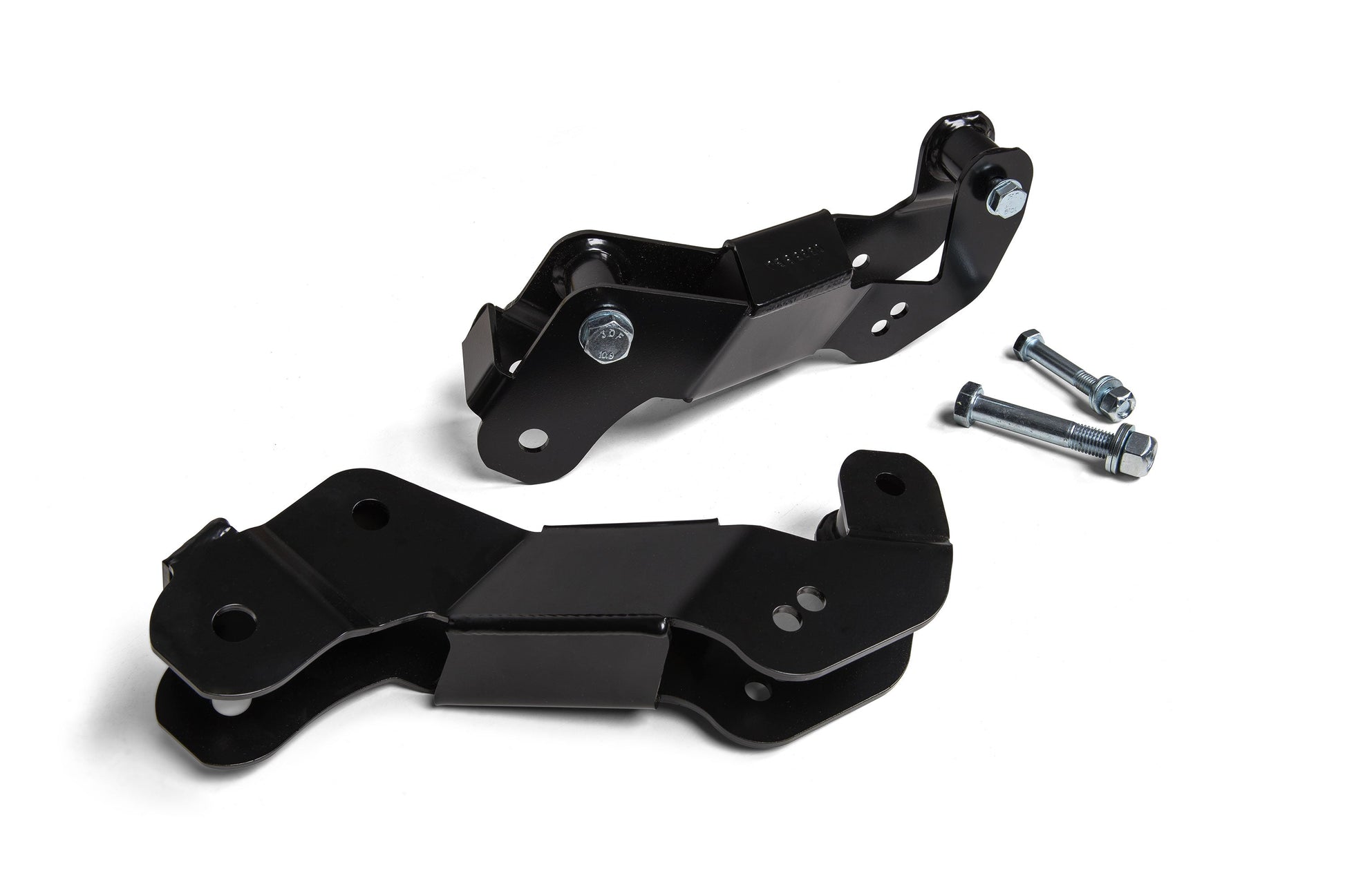

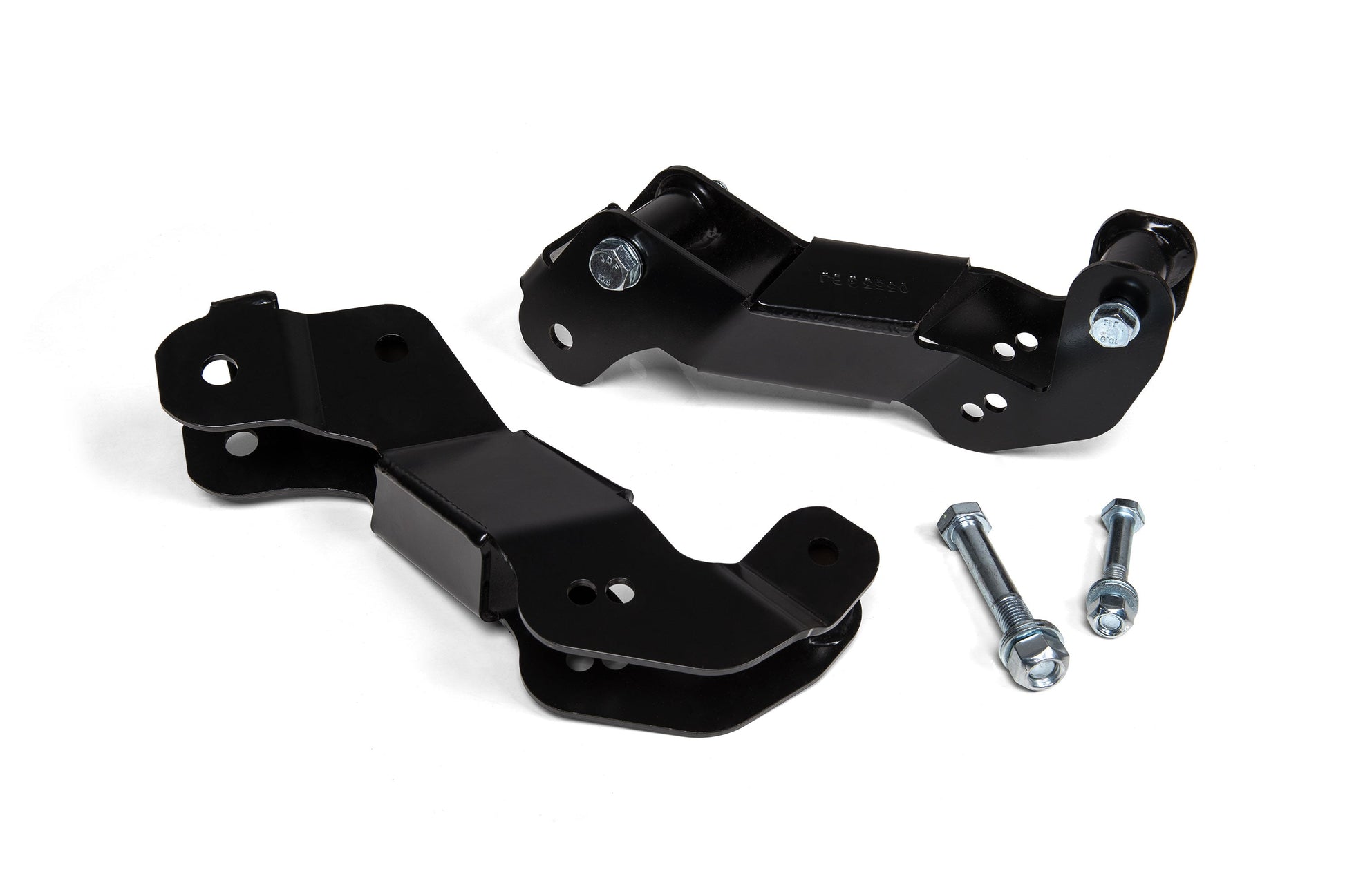

Front Control Arm Correction Brackets Fits 2"-4.5" Lift Jeep Wrangler JL 18-25 Gladiator JT 20-25 by JKS Manufacturing
Front Control Arm Correction Brackets Fits 2"-4.5" Lift Jeep Wrangler JL 18-25 Gladiator JT 20-25 by JKS Manufacturing
Regular price
$207.95 USD
Regular price
Sale price
$207.95 USD
Unit price
per
Couldn't load pickup availability
OVERVIEW

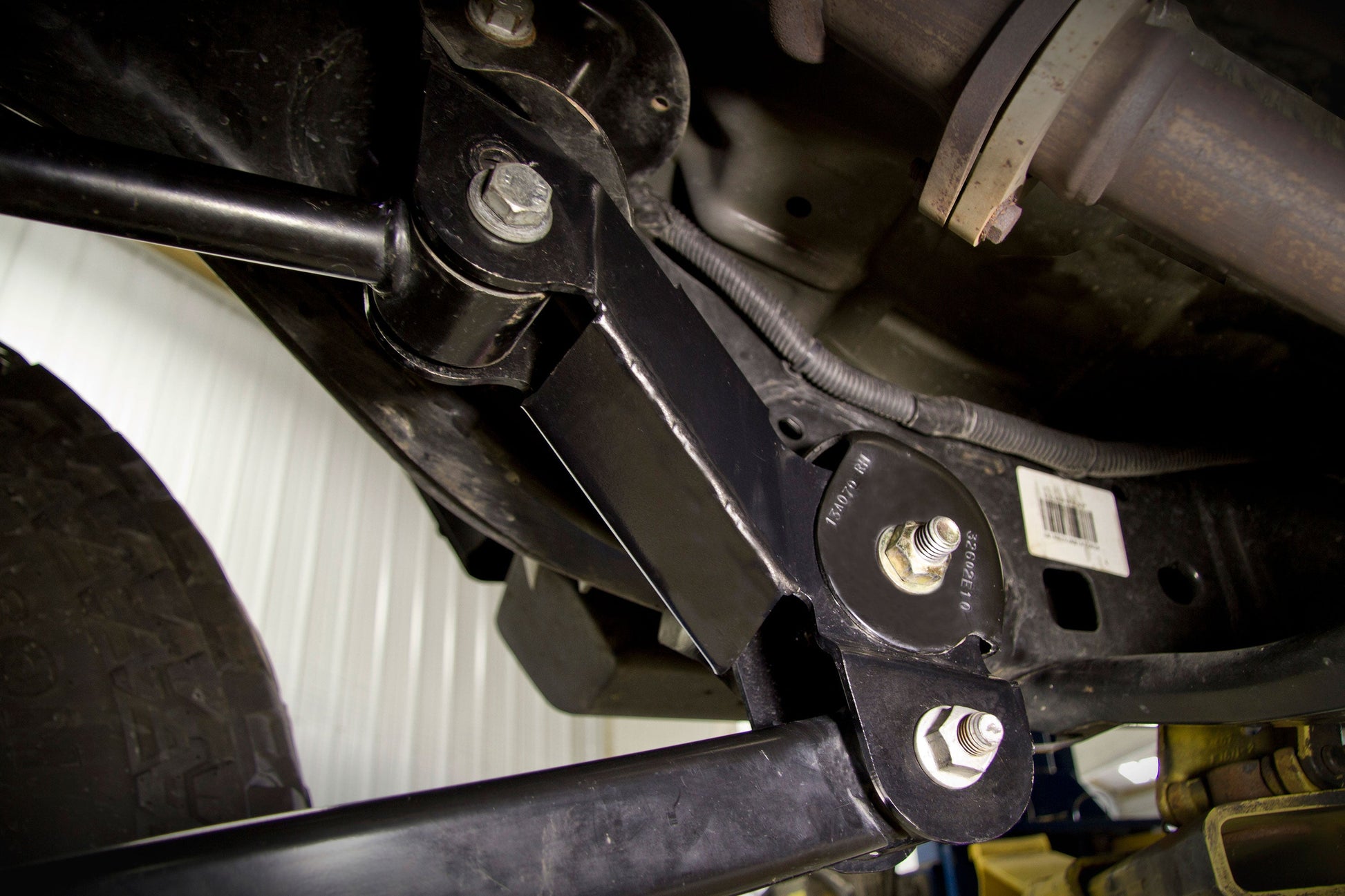

Improve the handling of your lifted Jeep Wrangler JL or Gladiator JT with JKS Front Control Arm Correction Brackets. Designed for use with 2"-4.5" lift kits the brackets improve control arm operating angle to mimic or improve on factory arm angles as well as improve anti-dive during braking. Lowering the control arm mounting point slightly places the arms closer to the axle mount which corrects caster and geometry caused by the lifted ride height. Two mounting hole positions correct geometry for given lift heights. Heavy duty, 1pc, fully boxed 7GA steel brackets install inside the factory upper and lower control arm mounts with the factory hardware. The fully gusseted design you extra confidence both on and off road. For ultimate performance, Control Arm Correction Brackets can be used with JKS adjustable control arms.
Features & Benefits
Important Notes
- Requires 2" of front bump stop extension for adequate clearance at full suspension compression.
- JKS 2" bump stop extension are available separately (#1120)
- Can be used in conjunction with JKS or other aftermarket control arms that can be set to factory length.
- Designed for use with 2"+ lift. Ideal lift range is 2"-4.5" but can be used up to 6".
- Do not combine with any other drop/relocation brackets
INSTALLATION
Installation Guides :
SPECIFICATION
Lift Height : 3-4"
FITMENT
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
|---|---|---|---|---|---|---|---|
| 2018 | Jeep | Wrangler | ALL | ALL | ALL | Front Rearward | |
| 2019 | Jeep | Wrangler | ALL | ALL | ALL | Front Rearward | |
| 2020 | Jeep | Gladiator | ALL | ALL | ALL | Front Rearward | |
| 2020 | Jeep | Wrangler | ALL | ALL | ALL | Front Rearward | |
| 2021 | Jeep | Gladiator | ALL | ALL | ALL | Front Rearward | |
| 2021 | Jeep | Wrangler | ALL | ALL | ALL | Front Rearward | |
| 2022 | Jeep | Gladiator | ALL | ALL | ALL | Front Rearward | |
| 2022 | Jeep | Wrangler | ALL | ALL | ALL | Front Rearward | |
| 2023 | Jeep | Gladiator | ALL | ALL | ALL | Front Rearward | |
| 2024 | Jeep | Gladiator | Mojave | ALL | ALL | Front Rearward | |
| 2024 | Jeep | Gladiator | Mojave X | ALL | ALL | Front Rearward | |
| 2024 | Jeep | Gladiator | Rubicon | ALL | ALL | Front Rearward | |
| 2024 | Jeep | Gladiator | Rubicon X | ALL | ALL | Front Rearward | |
| 2024 | Jeep | Gladiator | Sport | ALL | ALL | Front Rearward | |
| 2024 | Jeep | Gladiator | Sport S | ALL | ALL | Front Rearward | |
| 2024 | Jeep | Gladiator | Willys | ALL | ALL | Front Rearward | |
| 2025 | Jeep | Gladiator | ALL | ALL | ALL | Front Rearward |
