BDS Suspension

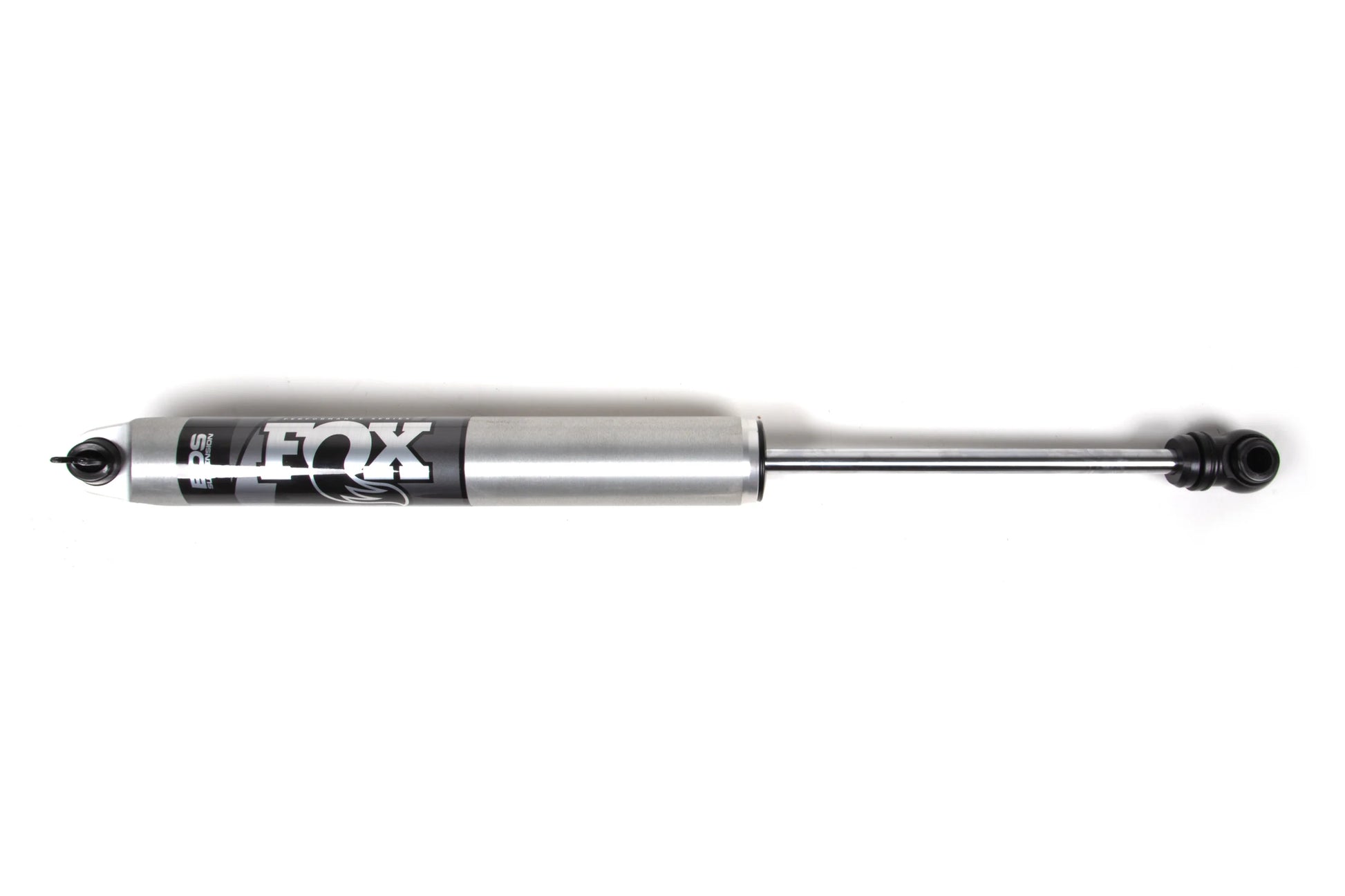

FOX 2.0 IFP Rear Shock 2-3 Inch Lift Performance Series Jeep Wrangler JK 07-18 by BDS

FOX 2.0 IFP Rear Shock 2-3 Inch Lift Performance Series Jeep Wrangler JK 07-18 by BDS

Regular price $199.95 USD
Regular price Sale price $199.95 USD
Sale Sold out

OVERVIEW

Upgrade the on-road comfort and off-road control of your 2007-2018 Jeep Wrangler JK to FOX Performance Series 2.0 IFP (internal floating piston) rear shocks. Designed to fit a BDS 2 to 3-inch lift suspension kit. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

FOX and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. Based on FOX race products but re-designed to turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Features & Benefits

  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Internal IFP mono-tube reservoir design

SPECIFICATION

  • Adjustable Damping : No
  • Compressed Length : 16.75
  • Extended Length : 26.35
  • Finish : Clear-anodized
  • Gas Charged : Yes
  • Lower Mount Code : EB1
  • Lower Mount Type : Eyelet
  • Shaft Diameter : 5_8
  • Travel Length : 9.6
  • Type : Smooth Body
  • Upper Mount Code : BP18
  • Upper Mount Type : Bar Pin
