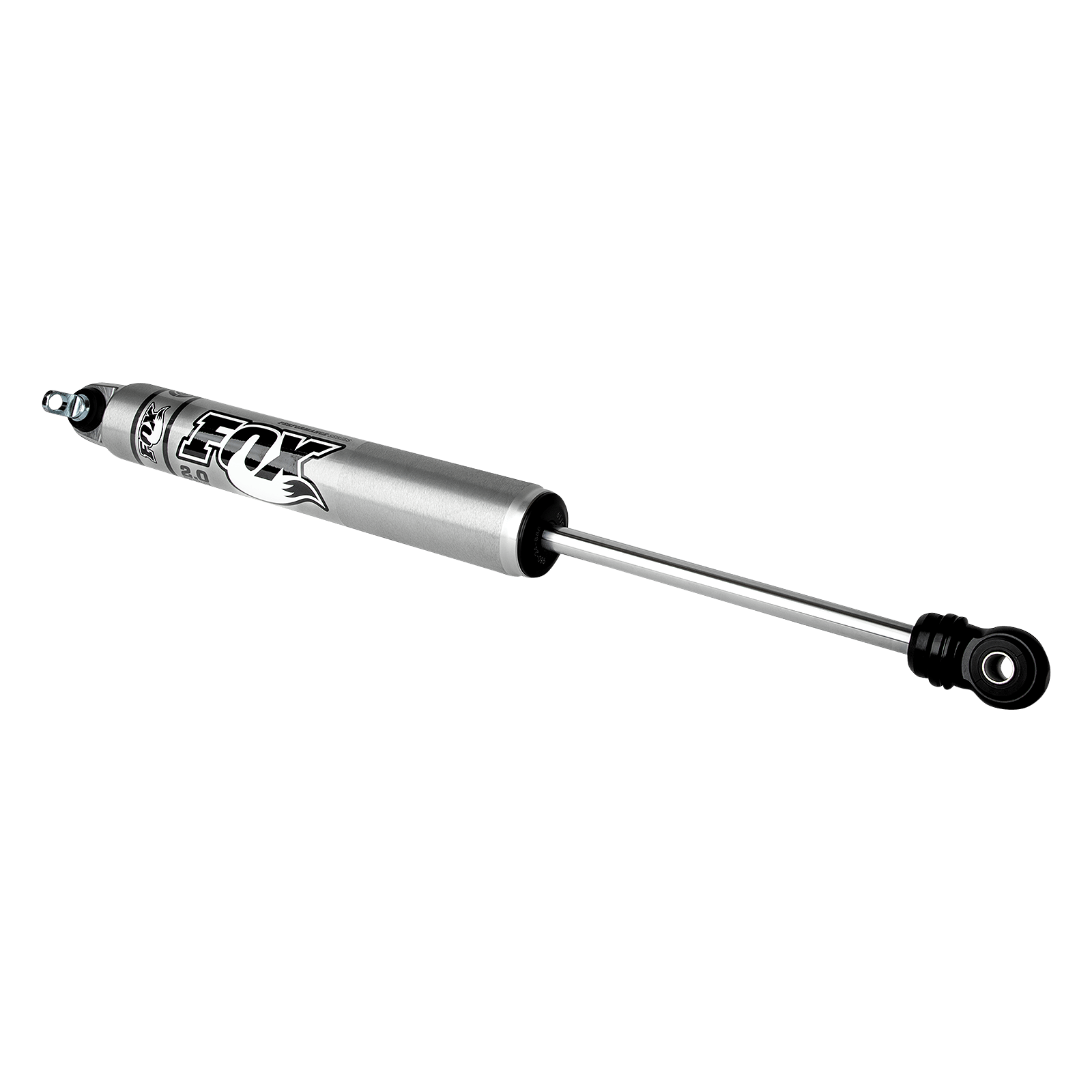

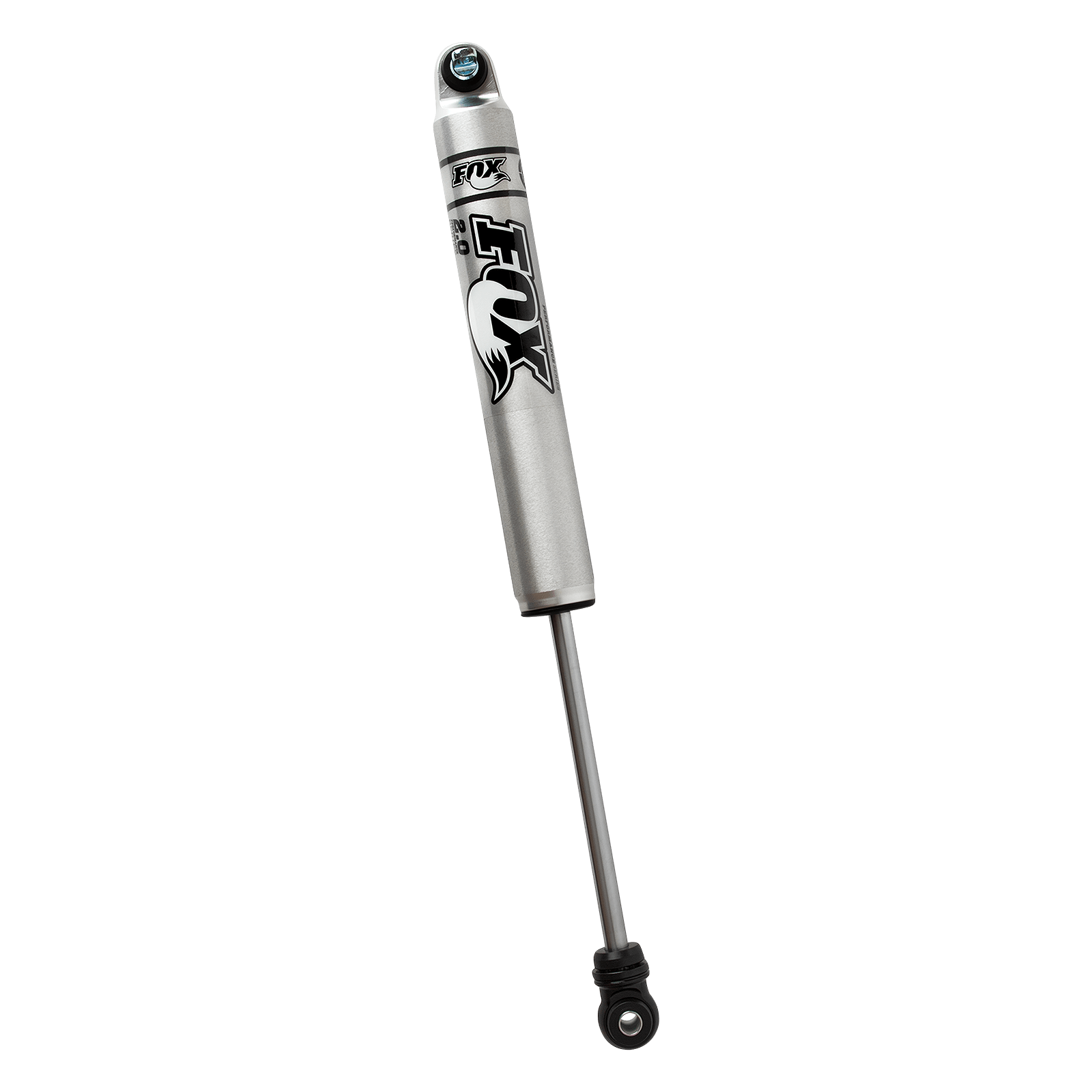

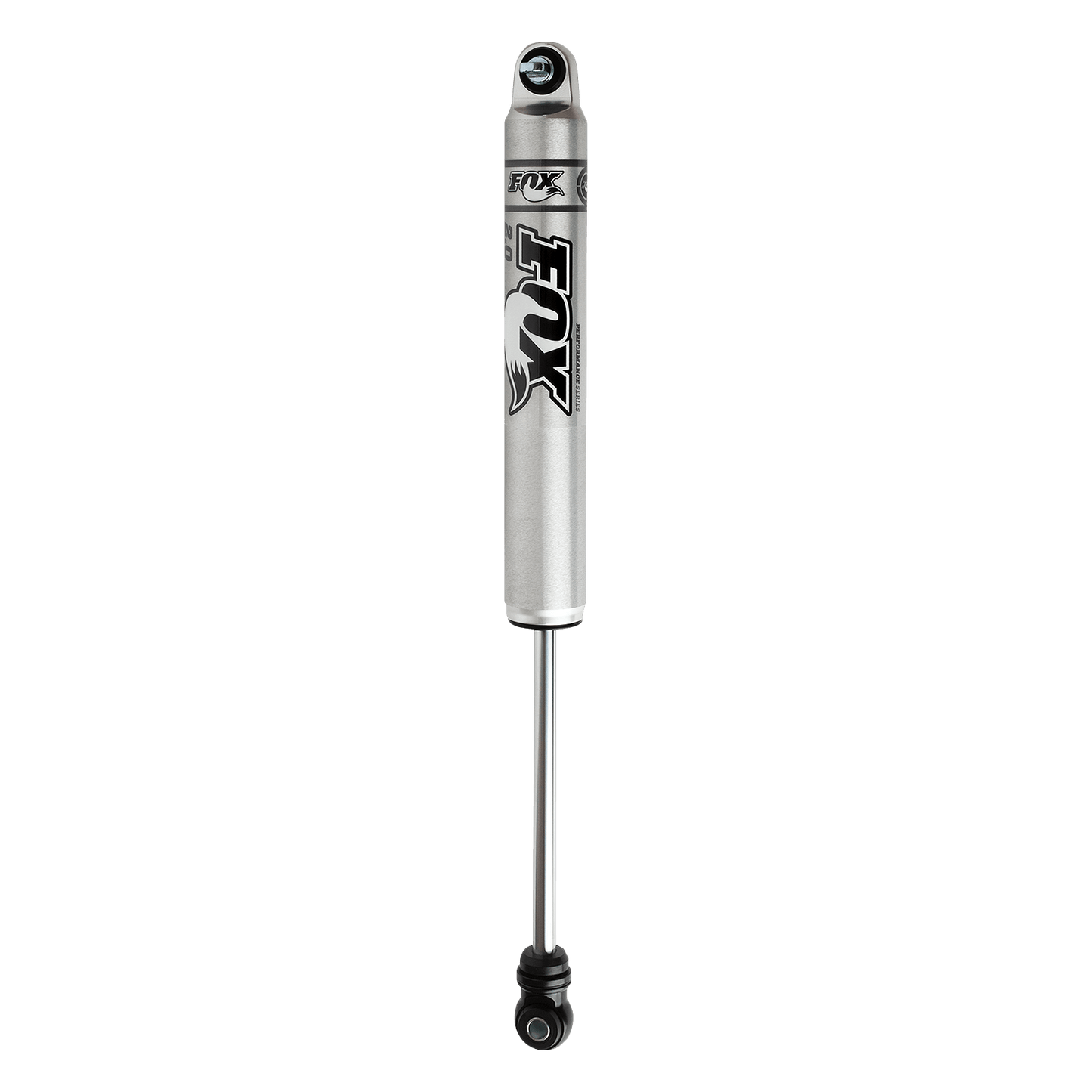

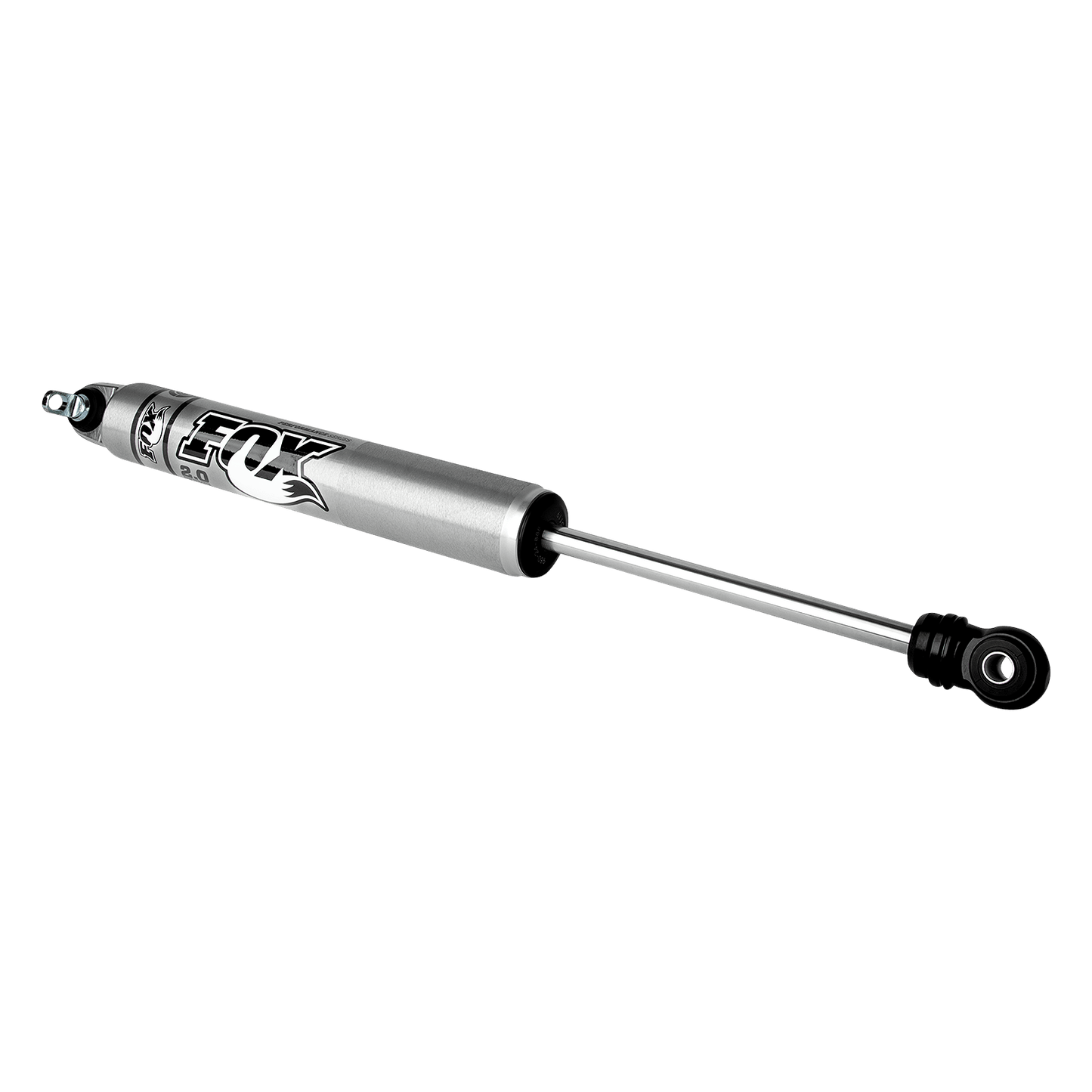

FOX 2.0 IFP Rear Shock 1.5-3.5 Inch Lift Performance Series Jeep Wrangler JK 07-18 by Fox

OVERVIEW

Upgrade the on-road comfort and off-road control of your 2007-2018 Jeep Wrangler JK to FOX Performance Series 2.0 IFP (internal floating piston) rear shocks. Designed to fit a BDS 1.5 to 3.5-inch lift suspension kit. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

FOX and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. Based on FOX race products but re-designed to turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Features & Benefits

• 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Internal IFP mono-tube reservoir design

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

1 hr

Difficulty Level :

Moderately Easy

SPECIFICATION

• Adjustable Damping : No
• Compressed Length : 15.7
• Extended Length : 24.82
• Finish : Clear-anodized
• Gas Charged : Yes
• Lift Height : 0-1.5", 2-3.5"
• Lower Mount Code : EB1
• Lower Mount Type : Eyelet
• Position : Rear
• Shaft Diameter : 5_8
• Travel Length : 9.12
• Type : Smooth Body
• Upper Mount Code : Bar Pin
• Upper Mount Type : Bar Pin

FITMENT

Year	Make	Model	Submodel	Drive Type	Fuel Type	Position	Lift Height
2007	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2007	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2008	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2008	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2009	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2009	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2010	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2010	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2011	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2011	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2012	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2012	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2013	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2013	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2014	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2014	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2015	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2015	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2016	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2016	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2017	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2017	Jeep	Wrangler	ALL	ALL	ALL	Rear	3.5"
2018	Jeep	Wrangler JK	ALL	ALL	ALL	Rear	3.5"
2018	Jeep	Wrangler JK	ALL	ALL	ALL	Rear	3.5"
