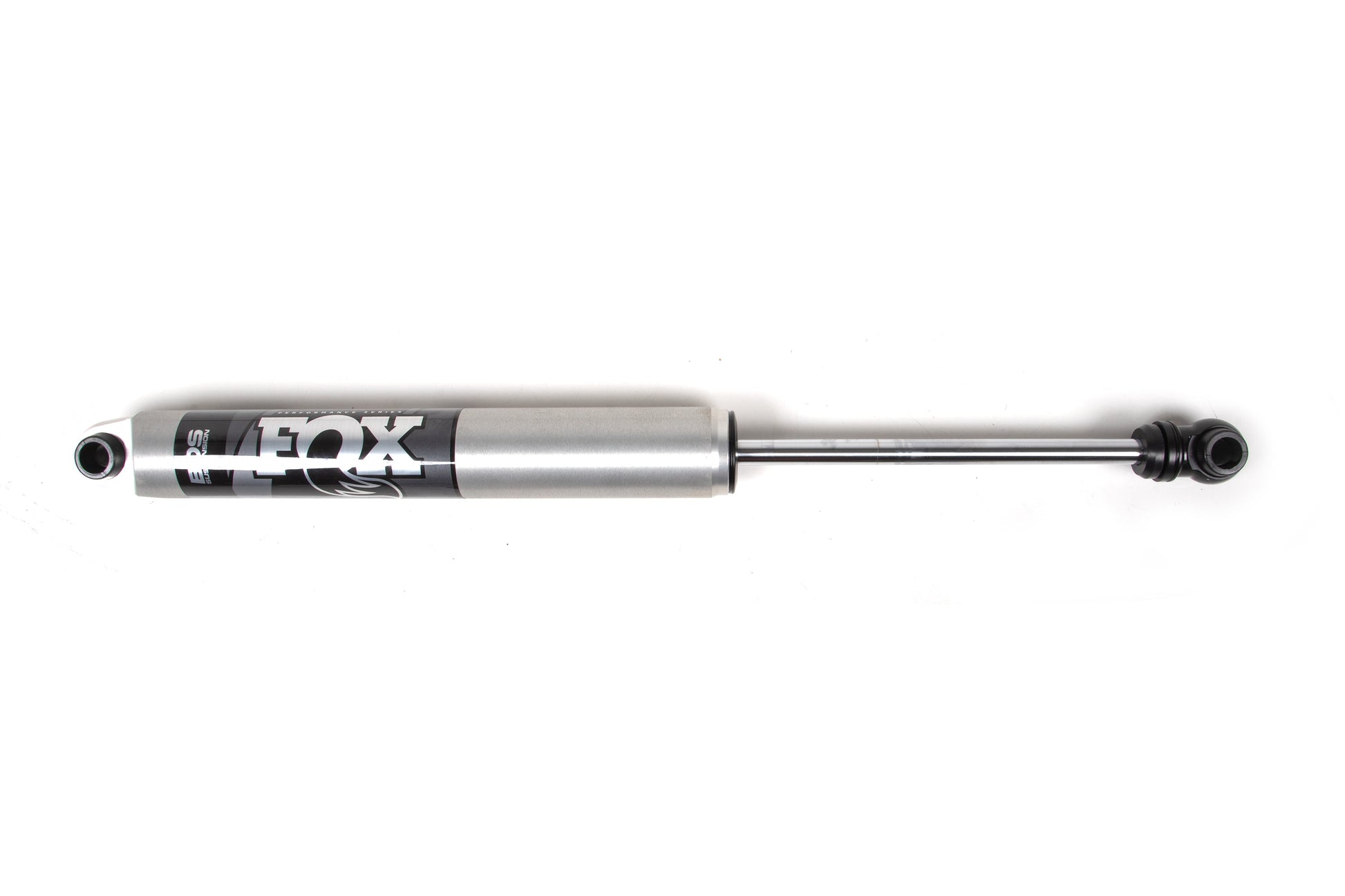

FOX 2.0 IFP Front Shock 2.5-4 Inch Lift Performance Series Jeep CJ5, CJ7, Scrambler 53-86 by FOX

FOX 2.0 IFP Front Shock 2.5-4 Inch Lift Performance Series Jeep CJ5, CJ7, Scrambler 53-86 by FOX

$199.95 USD
$199.95 USD
Sale Sold out

OVERVIEW

Upgrade the on-road comfort and off-road control of your 1953-1986 Jeep CJ5, CJ7, or Scrambler to FOX Performance Series 2.0 IFP (internal floating piston) front shocks. Designed to fit a BDS 2.5 to 4-inch lift suspension kit. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

FOX and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. Based on FOX race products but re-designed to turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Features & Benefits

  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Internal IFP mono-tube reservoir design

SPECIFICATION

  • Adjustable Damping : No
  • Compressed Length : 13.42
  • Extended Length : 21.7
  • Finish : Clear-anodized
  • Gas Charged : Yes
  • Lower Mount Code : EB1
  • Lower Mount Type : Eyelet
  • Shaft Diameter : 5_8
  • Travel Length : 8.28
  • Type : Smooth Body
  • Upper Mount Code : EB1
  • Upper Mount Type : Eyelet

FITMENT

Year Make Model Submodel Drive Type Fuel Type Position Lift Height
1959 Jeep CJ5 ALL ALL ALL Front 4"
1960 Jeep CJ5 ALL ALL ALL Front 4"
1961 Jeep CJ5 ALL ALL ALL Front 4"
1962 Jeep CJ5 ALL ALL ALL Front 4"
1963 Jeep CJ5 ALL ALL ALL Front 4"
1964 Jeep CJ5 ALL ALL ALL Front 4"
1965 Jeep CJ5 ALL ALL ALL Front 4"
1966 Jeep CJ5 ALL ALL ALL Front 4"
1967 Jeep CJ5 ALL ALL ALL Front 4"
1968 Jeep CJ5 ALL ALL ALL Front 4"
1969 Jeep CJ5 ALL ALL ALL Front 4"
1970 Jeep CJ5 ALL ALL ALL Front 4"
1971 Jeep CJ5 ALL ALL ALL Front 4"
1972 Jeep CJ5 ALL ALL ALL Front 4"
1973 Jeep CJ5 ALL ALL ALL Front 4"
1974 Jeep CJ5 ALL ALL ALL Front 4"
1975 Jeep CJ5 ALL ALL ALL Front 4"
1976 Jeep CJ7 ALL ALL ALL Front 4"
1977 Jeep CJ7 ALL ALL ALL Front 4"
1978 Jeep CJ7 ALL ALL ALL Front 4"
1979 Jeep CJ7 ALL ALL ALL Front 4"
1980 Jeep CJ7 ALL ALL ALL Front 4"
1981 Jeep CJ7 ALL ALL ALL Front 4"
1981 Jeep Scrambler ALL ALL ALL Front 4"
1982 Jeep Scrambler ALL ALL ALL Front 4"
1982 Jeep CJ7 ALL ALL ALL Front 4"
1983 Jeep Scrambler ALL ALL ALL Front 4"
1983 Jeep CJ7 ALL ALL ALL Front 4"
1984 Jeep Scrambler ALL ALL ALL Front 4"
1984 Jeep CJ7 ALL ALL ALL Front 4"
1985 Jeep CJ7 ALL ALL ALL Front 4"
1985 Jeep Scrambler ALL ALL ALL Front 4"
1986 Jeep Scrambler ALL ALL ALL Front 4"
1986 Jeep CJ7 ALL ALL ALL Front 4"
