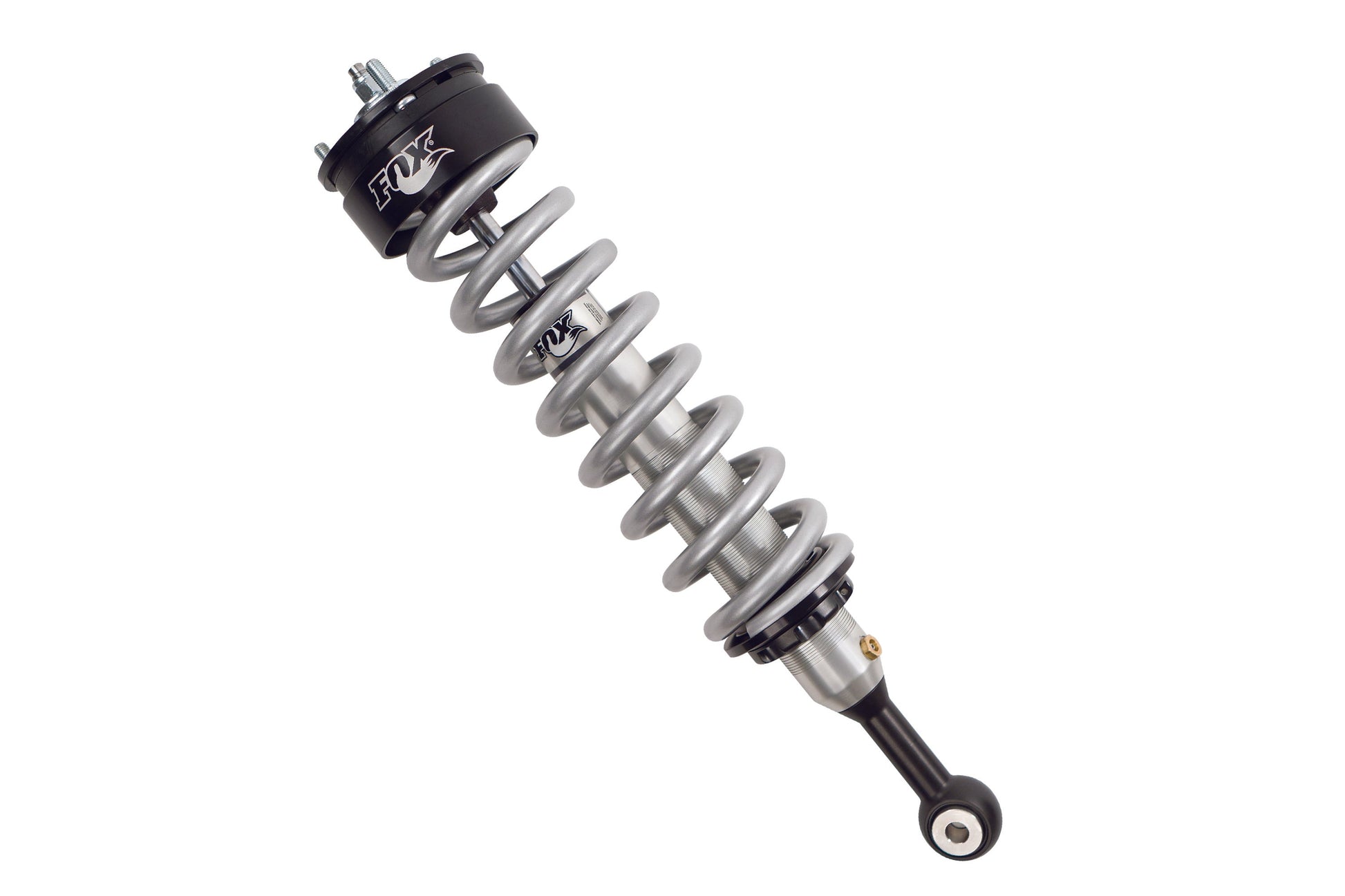

FOX 2.0 Coil-Over IFP Shock 0-2 Inch Lift Performance Series Ford F150 4WD 09-13 by FOX

OVERVIEW

Upgrade the on-road comfort and off-road control of your 2009-2013 Ford F150 4WD to FOX Performance Series 2.0 Coil-Over IFP (internal floating piston) shocks. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top-quality racing coil, selected to deliver the optimal spring rate. FOX shocks bolt on with no modifications and are designed to level your truck front-to-rear. The metal impact-extruded aluminum body increases cooling capacity and resists rust. Vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Features & Benefits

• 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Internal IFP mono-tube reservoir design

IMPORTANT NOTES

Sold individually - order QTY 2 for a pair.

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

1-2 hrs

Difficulty Level :

Moderately Easy

SPECIFICATION

• Adjustable Damping : No
• Compressed Length : 17.6
• Extended Length : 23.02
• Finish : Clear-anodized
• Gas Charged : Yes
• Lower Mount Type : Eyelet
• Position : Front
• Shaft Diameter : 5/8"
• Travel Length : 5.42
• Type : Coil-Over
• Upper Mount Type : OEM

FITMENT

Year	Make	Model	Submodel	Drive Type	Fuel Type	Position	Lift Height
2009	Ford	F-150	FX4	ALL	ALL	Front	2"
2009	Ford	F-150	King Ranch	4WD	ALL	Front	2"
2009	Ford	F-150	Lariat	4WD	ALL	Front	2"
2009	Ford	F-150	Platinum	4WD	ALL	Front	2"
2009	Ford	F-150	STX	4WD	ALL	Front	2"
2009	Ford	F-150	XL	4WD	ALL	Front	2"
2009	Ford	F-150	XLT	4WD	ALL	Front	2"
2010	Ford	F-150	FX4	ALL	ALL	Front	2"
2010	Ford	F-150	King Ranch	4WD	ALL	Front	2"
2010	Ford	F-150	Lariat	4WD	ALL	Front	2"
2010	Ford	F-150	Platinum	4WD	ALL	Front	2"
2010	Ford	F-150	STX	4WD	ALL	Front	2"
2010	Ford	F-150	XL	4WD	ALL	Front	2"
2010	Ford	F-150	XLT	4WD	ALL	Front	2"
2011	Ford	F-150	FX4	ALL	ALL	Front	2"
2011	Ford	F-150	King Ranch	4WD	ALL	Front	2"
2011	Ford	F-150	Lariat	4WD	ALL	Front	2"
2011	Ford	F-150	Lariat Limited	4WD	ALL	Front	2"
2011	Ford	F-150	Platinum	4WD	ALL	Front	2"
2011	Ford	F-150	STX	4WD	ALL	Front	2"
2011	Ford	F-150	XL	4WD	ALL	Front	2"
2011	Ford	F-150	XLT	4WD	ALL	Front	2"
2012	Ford	F-150	FX4	ALL	ALL	Front	2"
2012	Ford	F-150	King Ranch	4WD	ALL	Front	2"
2012	Ford	F-150	Lariat	4WD	ALL	Front	2"
2012	Ford	F-150	Platinum	4WD	ALL	Front	2"
2012	Ford	F-150	STX	4WD	ALL	Front	2"
2012	Ford	F-150	XL	4WD	ALL	Front	2"
2012	Ford	F-150	XLT	4WD	ALL	Front	2"
2013	Ford	F-150	FX4	ALL	ALL	Front	2"
2013	Ford	F-150	King Ranch	4WD	ALL	Front	2"
2013	Ford	F-150	Lariat	4WD	ALL	Front	2"
2013	Ford	F-150	Limited	4WD	ALL	Front	2"
2013	Ford	F-150	Platinum	4WD	ALL	Front	2"
2013	Ford	F-150	STX	4WD	ALL	Front	2"
2013	Ford	F-150	XL	4WD	ALL	Front	2"
2013	Ford	F-150	XLT	4WD	ALL	Front	2"
