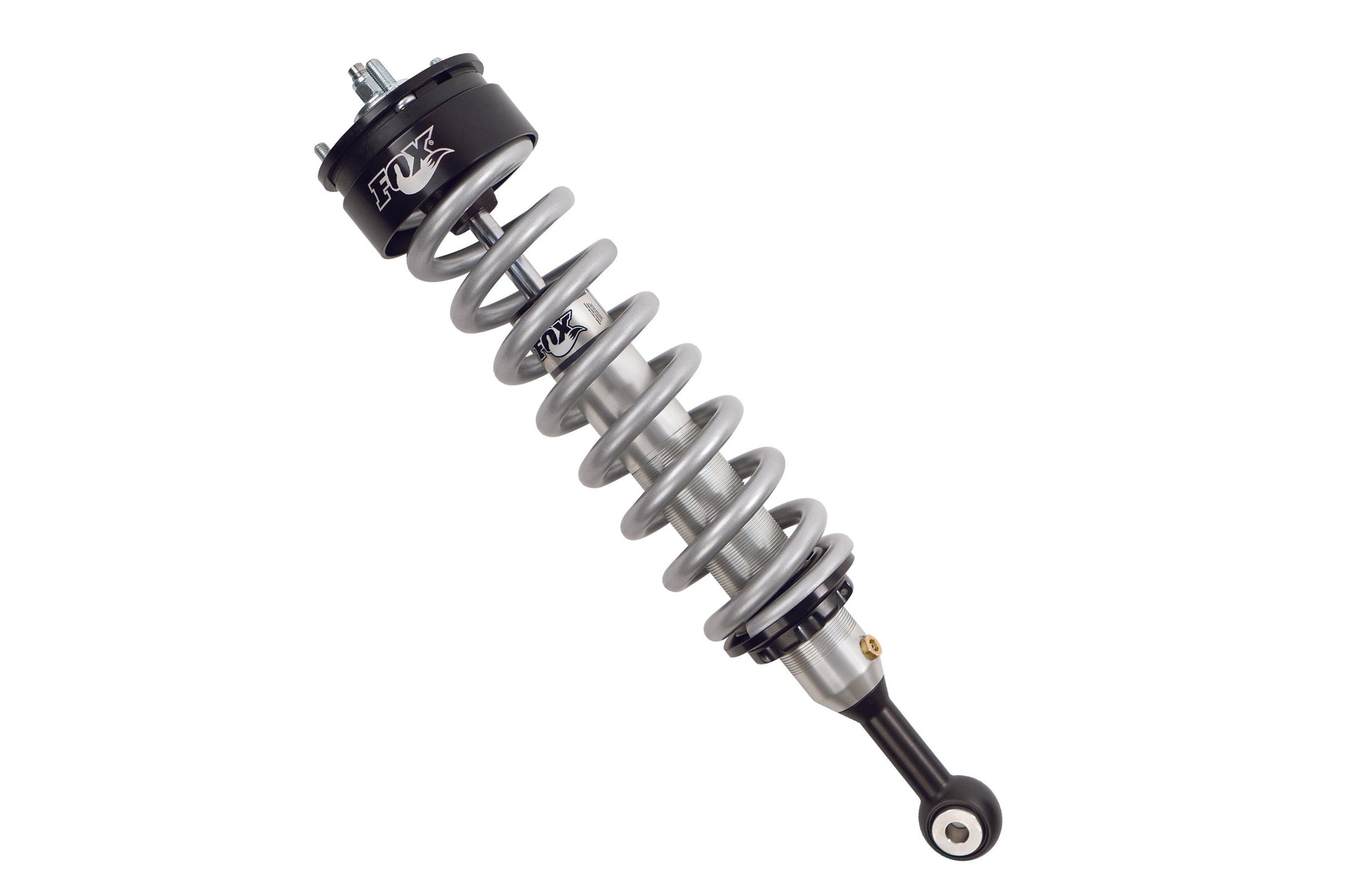

FOX 2.0 Coil-Over IFP Shock 0-2 Inch Lift Performance Series Dodge Ram 1500 4wd 06-18 by Fox
FOX 2.0 Coil-Over IFP Shock 0-2 Inch Lift Performance Series Dodge Ram 1500 4wd 06-18 by Fox
Couldn't load pickup availability
Overview
Transform your truck's performance with the FOX Performance Series 2.0 Front Coil-Over IFP Shock. Engineered for Dodge Ram 1500 and Dodge Ram 1500 4WD models (2006-2018), this direct-replacement coil-over delivers race-proven damping control for superior on-road comfort and predictable off-road handling. The 2.0" aluminum body dissipates heat three times faster than steel, while the Internal Floating Piston (IFP) mono-tube design separates shock oil from high-pressure nitrogen gas to prevent foaming and maintain consistent performance in extreme conditions.
Key Features
-
Vehicle-Specific Valving: Precision-tuned damping for your exact application
-
2.0" Aluminum Body: Metal-impact extruded 6061-T6 aluminum with clear anodized finish resists rust and dissipates heat faster than steel
-
IFP Mono-Tube Design: Internal floating piston separates oil from nitrogen gas for consistent performance
-
5/8" Hard Chrome Shaft: Heat-treated alloy steel shaft for durability
-
CNC-Machined Components: Black-anodized 6061-T6 billet aluminum upper mounts
-
Included Coil Spring: 500 lbs/in spring rate with gray/silver finish
-
Direct Bolt-On Installation: No modifications required, reuses factory mounts
Technical Specifications
| Specification | Value |
| Front Lift Height | 0" - 2.0" |
| Spring Rate | 500 lbs/in (8.9 kg/mm) |
| Extended Length | 22.36" (567.9 mm) |
| Compressed Length | 16.93" (430.0 mm) |
| Travel | 5.43" |
| Body Diameter | 2.0" |
| Shaft Diameter | 5/8" (0.625") |
| Upper Mount | OEM Stud |
| Lower Mount | Eyelet |
| Reservoir Type | Internal Floating Piston (IFP) |
| Internal Design | Monotube, Gas Charged |
| Adjustable Valving | No |
| Quantity | Sold Individually |
Vehicle Application Guide
Compatible Vehicles
Dodge Ram 1500 4WD (2006-2018)
| Year Range | Make | Model | Drive Type | Position | Lift Range | Notes |
| 2013-2018 | RAM | 1500 | 4WD | Front | 0"-2" | All Cab Styles |
| 2009-2012 | RAM | 1500 | 4WD | Front | 0"-2" | All Cab Styles |
| 2006-2008 | Dodge | Ram 1500 | 4WD | Front | 0"-2" | Excludes MegaCab |
Important Fitment Notes
-
4WD Models Only: This part number is specifically designed for 4-wheel drive applications
-
MegaCab Exclusion: 2006-2008 MegaCab models require different part number
-
Sold Individually: Purchase quantity of 2 for complete front axle installation
-
Direct Replacement: Bolts directly to factory mounting points with no modifications
-
Leveling Compatible: Ideal for stock height or up to 2" front leveling kits
-
Spring Preload: Adjustable via threaded spring seat (adjust off-vehicle only with spring compressor)
Installation Requirements
-
Professional installation recommended
-
Requires chassis lift or properly secured jack stands
-
Spring compressor needed for preload adjustments
-
Reuses factory lower bolt and nut
-
Medium-strength thread locker recommended on all bolts
Recommended Pairing
For complete suspension upgrade, pair with:
-
Rear: FOX 985-24-032 Performance Series 2.0 IFP Shock (sold separately)
-
Complete Kit: Front coil-overs + rear shocks for balanced performance
