Belly Pan Skid Plate Jeep Wrangler TJ 97-06 by BDS Suspension

OVERVIEW

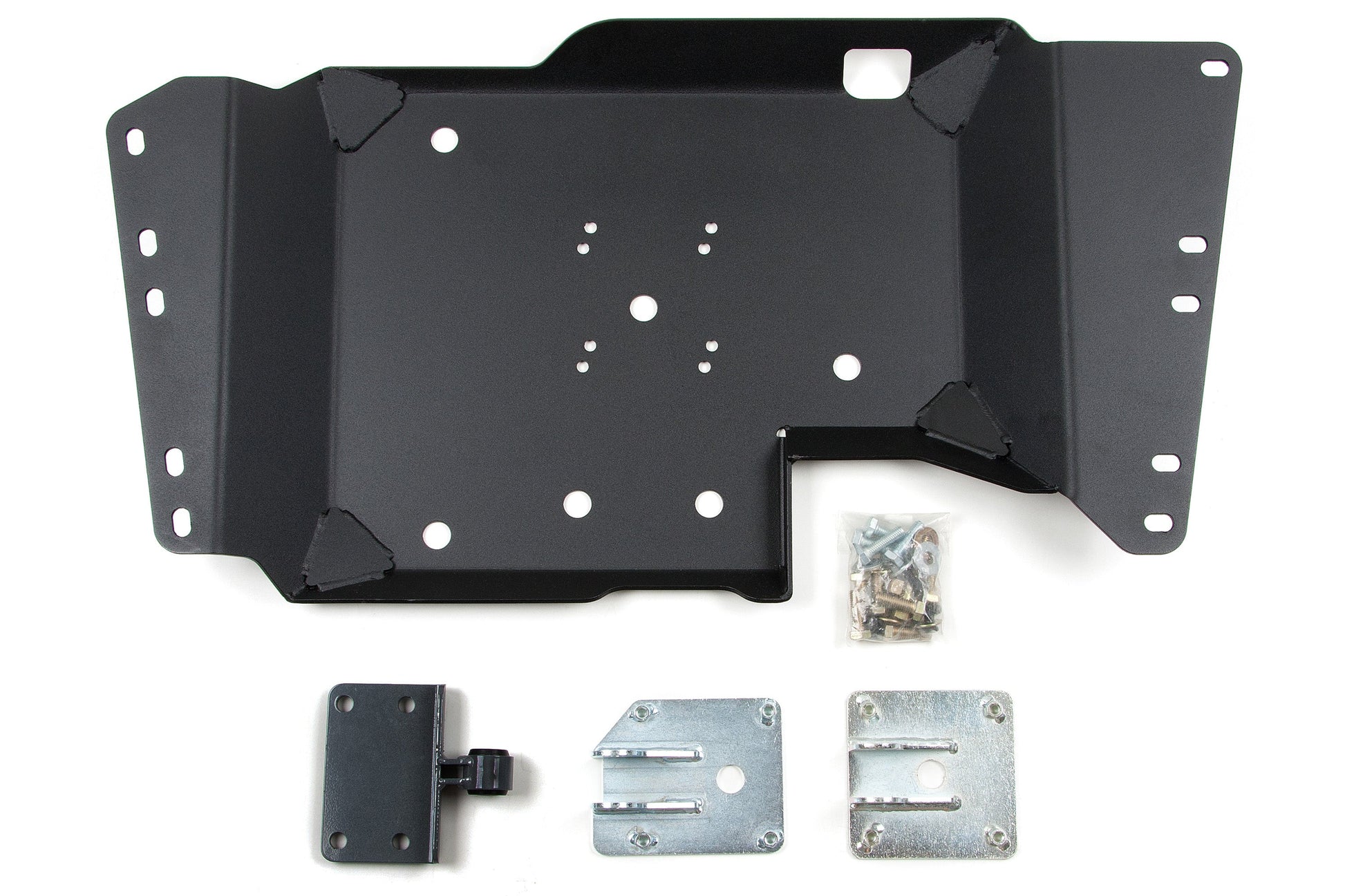

This innovative "belly up" style pan is made from 3/16" steel and ready for some serious abuse. The BDS belly pan increases ground clearance on the '02-06 models by 1-1/4" and by 1/2" on 97-02 models. Unlike other belly up pans on the market, the BDS system includes a new transmission mount. This allows for additional ground clearance without having to change the motor mounts like many systems require.

The pan is designed to fit both stock and BDS lifted applications. The pan will fit the Rubicon models with minor modifications. This pan will not work with a transfer case drop system and will not fit vehicles equipped with 4 cylinders. This pan will work on all 6 cylinder applications except '03-'06 automatics.

1. This belly pan will not work on applications with a 4 cylinder motor.
2. This pan will not fit '03-06 Automatic models with 6 cylinder motor.
3. Exhaust modification to the hanger on the transmission mount may be required depending upon the model year / transmission.

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

1-2 hrs

FITMENT

Year	Make	Model	Submodel	Drive Type	Fuel Type	Position	Lift Height
1997	Jeep	Wrangler	ALL	ALL	ALL
1998	Jeep	Wrangler	ALL	ALL	ALL
1999	Jeep	Wrangler	ALL	ALL	ALL
2000	Jeep	Wrangler	ALL	ALL	ALL
2001	Jeep	Wrangler	ALL	ALL	ALL
2002	Jeep	Wrangler	ALL	ALL	ALL
2003	Jeep	Wrangler	ALL	ALL	ALL
2004	Jeep	Wrangler	ALL	ALL	ALL
2005	Jeep	Wrangler	ALL	ALL	ALL
2006	Jeep	Wrangler	ALL	ALL	ALL
