4-Inch Lift Kit Jeep Cherokee SJ, Wagoneer J10/J20 Full size 74-89 by BDS Suspension

4-Inch Lift Kit Jeep Cherokee SJ, Wagoneer J10/J20 Full size 74-89 by BDS Suspension

$766.65 USD
$766.65 USD
Sale Sold out
Rear Lift Option

OVERVIEW

Update the style of your Jeep Cherokee SJ Full Size,Wagoneer, and Grand Wagoneer with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

Up front the lift kit includes Glide-Ride leaf springs, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Glideride leaf springs to provide full lift height and increased capacity
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control

Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 15 x 8 and 3.5 in. Backspace

Rear Lift Option

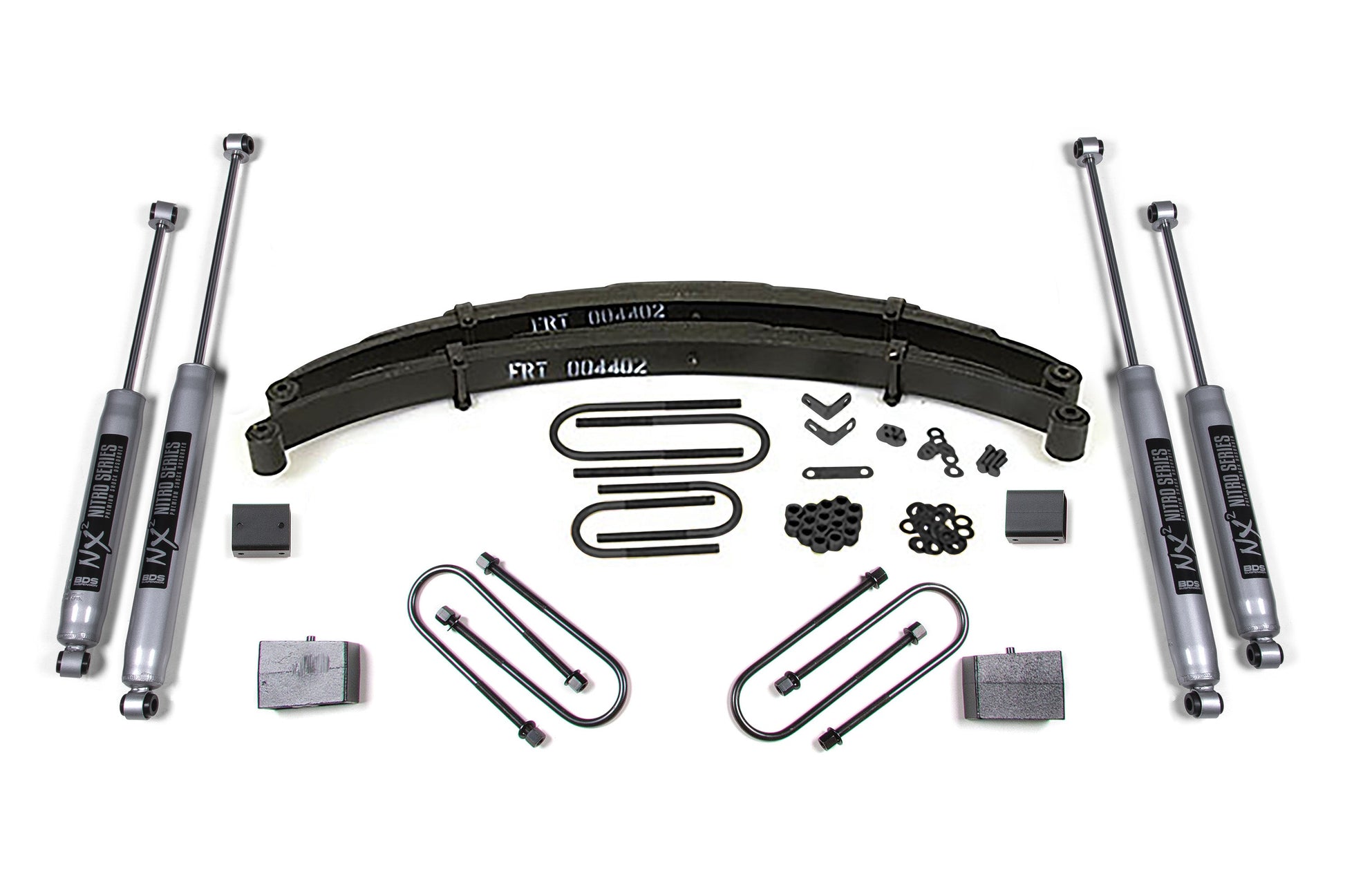

Block Kit

  • Blocks are made from cast iron for strength.
  • Tapered for correct pinion angle.
  • Steel pin and hole are offset to restore axle position.

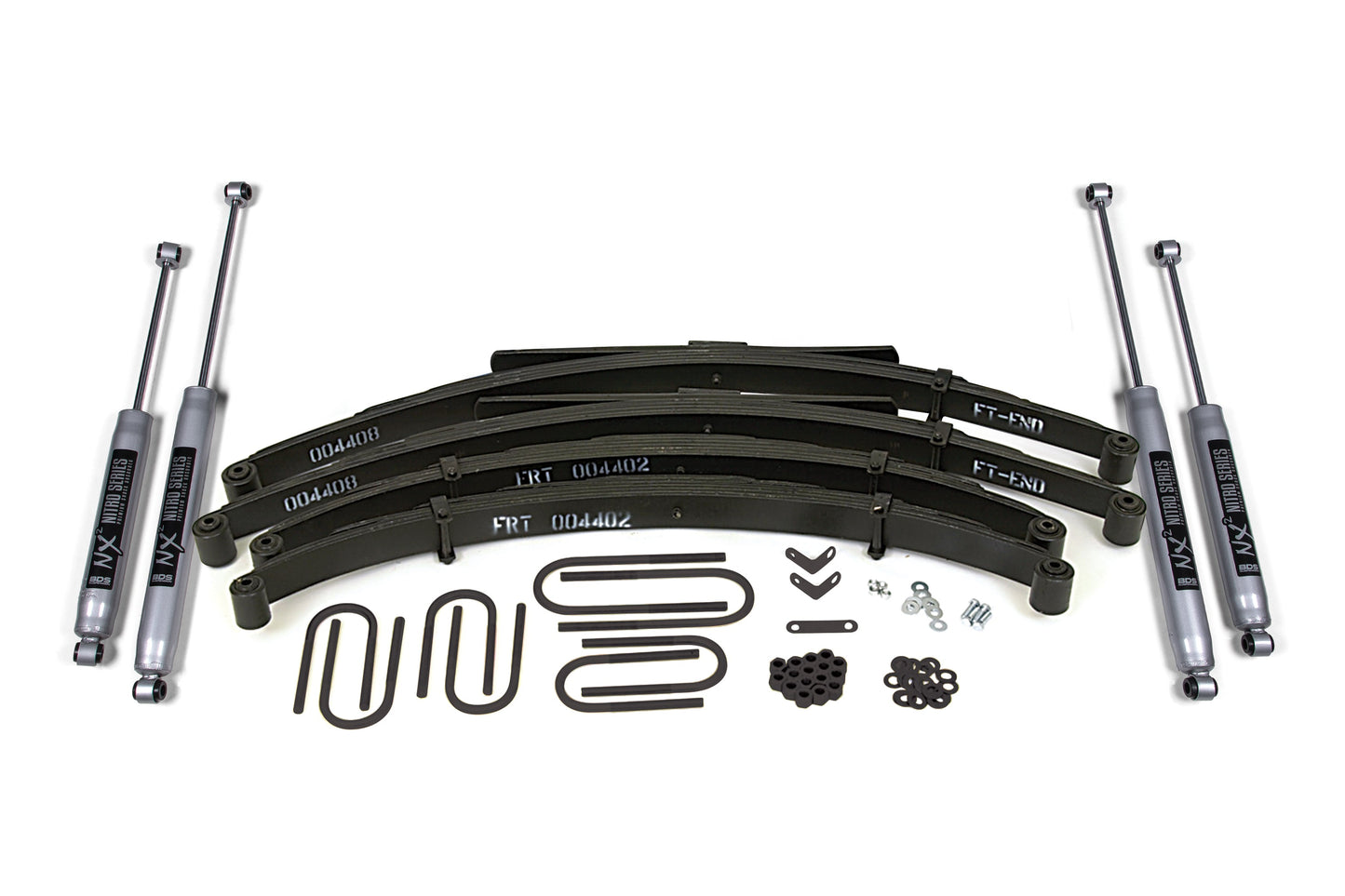

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

IMPORTANT NOTES

  1. 083402 Pitman arm will increase turning radius. (cannot turn as sharp)
  2. Not recommended for Wagoneers or Cherokees with front and/or rear track rods.
  3. 1974-1975 models must have 131" wheelbase and 7200# GVWR or more for #004408 rear springs to fit.
  4. Some 1974 J20s with stock 401 come with a rear 15/16" spring eye stud.
  5. #004402 and #004408 come with OE rubber bushings installed.
  6. Rear shock mount may need to be relocated.
  7. If equipped with Dana 44 rear axle will require a 9/16 X3-1/4" X 7-1/2" rear u-bolt. (Not supplied by BDS)

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

6 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Torque Wrench, Jack / Jack Stands, Pitman Arm Puller

SPECIFICATION

  • Front Lift Method : Leaf Spring
  • Front Lift Height : 4"
  • Rear Lift Method : Block
  • Rear Lift Height : 3"
  • Shocks Included : Yes
  • Lift Height : 4-5.5"

FITMENT

Year Make Model Submodel Drive Type Fuel Type Position Lift Height
1974 Jeep J20 ALL ALL ALL Front and Rear 4"
1974 Jeep Cherokee ALL ALL ALL
1974 Jeep J10 ALL ALL ALL
1974 Jeep Wagoneer ALL ALL ALL
1975 Jeep J20 ALL ALL ALL Front and Rear 4"
1975 Jeep J10 ALL ALL ALL
1975 Jeep Wagoneer ALL ALL ALL
1975 Jeep Cherokee ALL ALL ALL
1976 Jeep J20 ALL ALL ALL Front and Rear 4"
1976 Jeep Cherokee ALL ALL ALL
1976 Jeep Wagoneer ALL ALL ALL
1976 Jeep J10 ALL ALL ALL
1977 Jeep J20 ALL ALL ALL Front and Rear 4"
1977 Jeep Wagoneer ALL ALL ALL
1977 Jeep Cherokee ALL ALL ALL
1977 Jeep J10 ALL ALL ALL
1978 Jeep J20 ALL ALL ALL Front and Rear 4"
1978 Jeep Cherokee ALL ALL ALL
1978 Jeep Wagoneer ALL ALL ALL
1978 Jeep J10 ALL ALL ALL
1979 Jeep J20 ALL ALL ALL Front and Rear 4"
1979 Jeep Cherokee ALL ALL ALL
1979 Jeep Wagoneer ALL ALL ALL
1979 Jeep J10 ALL ALL ALL
1980 Jeep J20 ALL ALL ALL Front and Rear 4"
1980 Jeep J10 ALL ALL ALL
1980 Jeep Wagoneer ALL ALL ALL
1980 Jeep Cherokee ALL ALL ALL
1981 Jeep J20 ALL ALL ALL Front and Rear 4"
1981 Jeep Cherokee ALL ALL ALL
1981 Jeep J10 ALL ALL ALL
1981 Jeep Wagoneer ALL ALL ALL
1982 Jeep J20 ALL ALL ALL Front and Rear 4"
1982 Jeep Wagoneer ALL ALL ALL
1982 Jeep J10 ALL ALL ALL
1982 Jeep Cherokee ALL ALL ALL
1983 Jeep J20 ALL ALL ALL Front and Rear 4"
1983 Jeep J10 ALL ALL ALL
1983 Jeep Wagoneer ALL ALL ALL
1983 Jeep Cherokee ALL ALL ALL
1984 Jeep J20 ALL ALL ALL Front and Rear 4"
1984 Jeep Wagoneer ALL ALL ALL
1984 Jeep J10 ALL ALL ALL
1985 Jeep J20 ALL ALL ALL Front and Rear 4"
1985 Jeep Wagoneer ALL ALL ALL
1985 Jeep J10 ALL ALL ALL
1986 Jeep J20 ALL ALL ALL Front and Rear 4"
1986 Jeep J10 ALL ALL ALL
1986 Jeep Wagoneer ALL ALL ALL
1987 Jeep J20 ALL ALL ALL Front and Rear 4"
1987 Jeep Wagoneer ALL ALL ALL
1988 Jeep J20 ALL ALL ALL Front and Rear 4"
1988 Jeep Wagoneer ALL ALL ALL
1989 Jeep Wagoneer ALL ALL ALL
