BDS Suspension

6.5 inch long arm lift kit Jeep Wrangler TJ TJ Rubicon 97-06 by BDS Suspension

6.5 inch long arm lift kit Jeep Wrangler TJ TJ Rubicon 97-06 by BDS Suspension

$3,034.55 USD
$3,034.55 USD
Sale Sold out

OVERVIEW

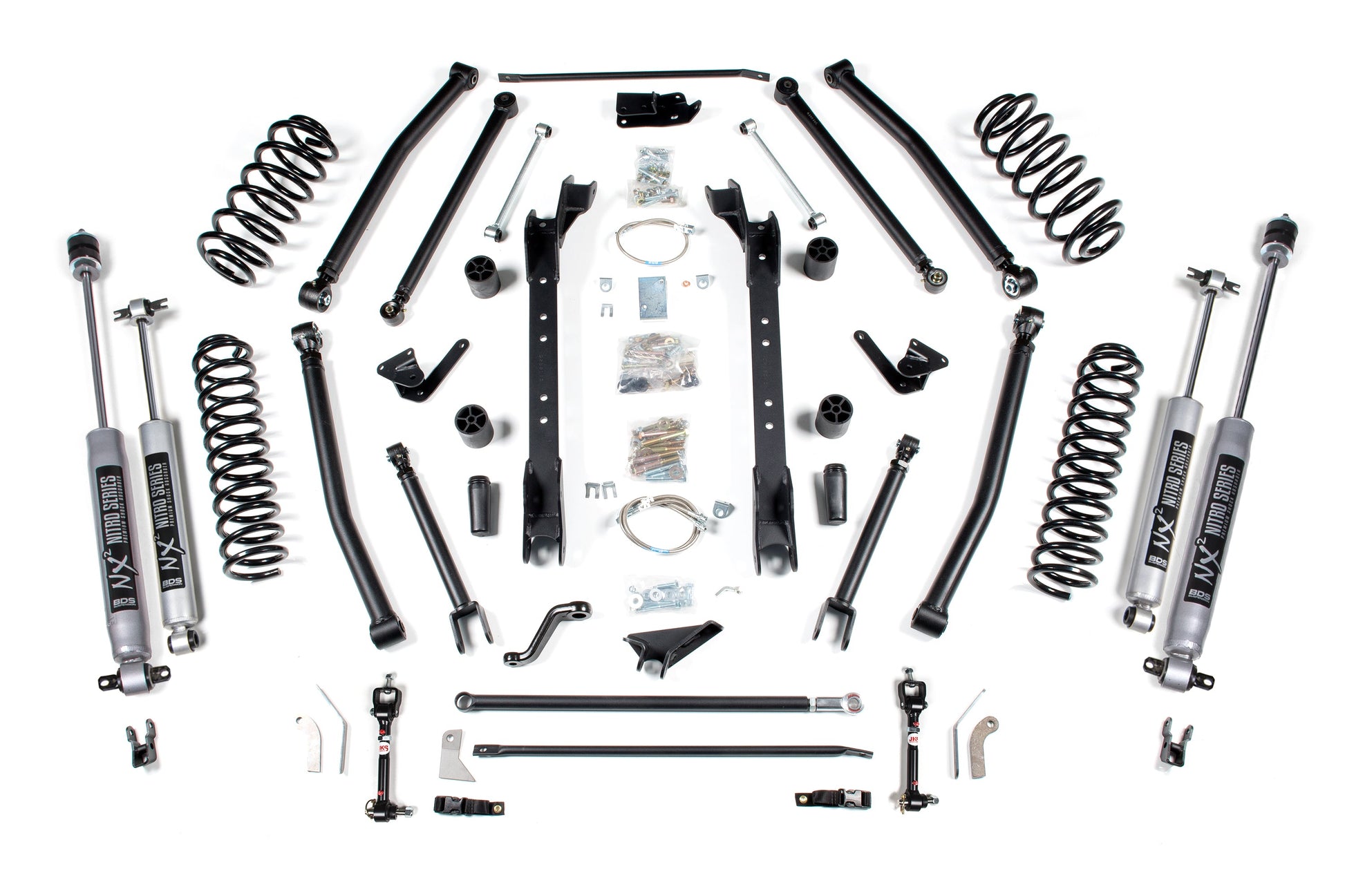

This lift kit comes with four new Pro-Ride Coil Springs capable of full coil bind. The box kit includes a pitman arm for steering correction, adjustable front track bar with a track bar relocation system to match the track bar angles with the steering angles. Four long lower arms are included with flex ends to ensure off road performance.

Features & Benefits

All new long upper arms are included that are adjustable to fine tune the rear pinion angles as well as the front caster angles, D.O.T. approved Kevlar lined stainless steel brake lines for front and rear, ultimate sway bar disconnects for the front and extended links for the rear, and NX² series shocks.

IMPORTANT NOTES
  • A slip yoke eliminator kit and CV style rear drive shaft is required.
  • May require exhaust modification.
  • Some welding required.
  • Long Arm systems also fit short wheel base Rubicon models (not Unlimited models)

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

10 hrs

SPECIFICATION

  • Front Lift Method : Coil Spring
  • Front Lift Height : 6
  • Rear Lift Method : Coil Spring
  • Rear Lift Height : 6"
  • Shocks Included : No
  • Lift Height : 6-7.5"

FITMENT

Year Make Model Submodel Drive Type Fuel Type Position Lift Height
1997 Jeep Wrangler ALL ALL ALL
1998 Jeep Wrangler ALL ALL ALL
1999 Jeep Wrangler ALL ALL ALL
2000 Jeep Wrangler ALL ALL ALL
2001 Jeep Wrangler ALL ALL ALL
2002 Jeep Wrangler ALL ALL ALL
2003 Jeep Wrangler ALL ALL ALL
2004 Jeep Wrangler ALL ALL ALL
2005 Jeep Wrangler ALL ALL ALL
2006 Jeep Wrangler ALL ALL ALL
View full details
