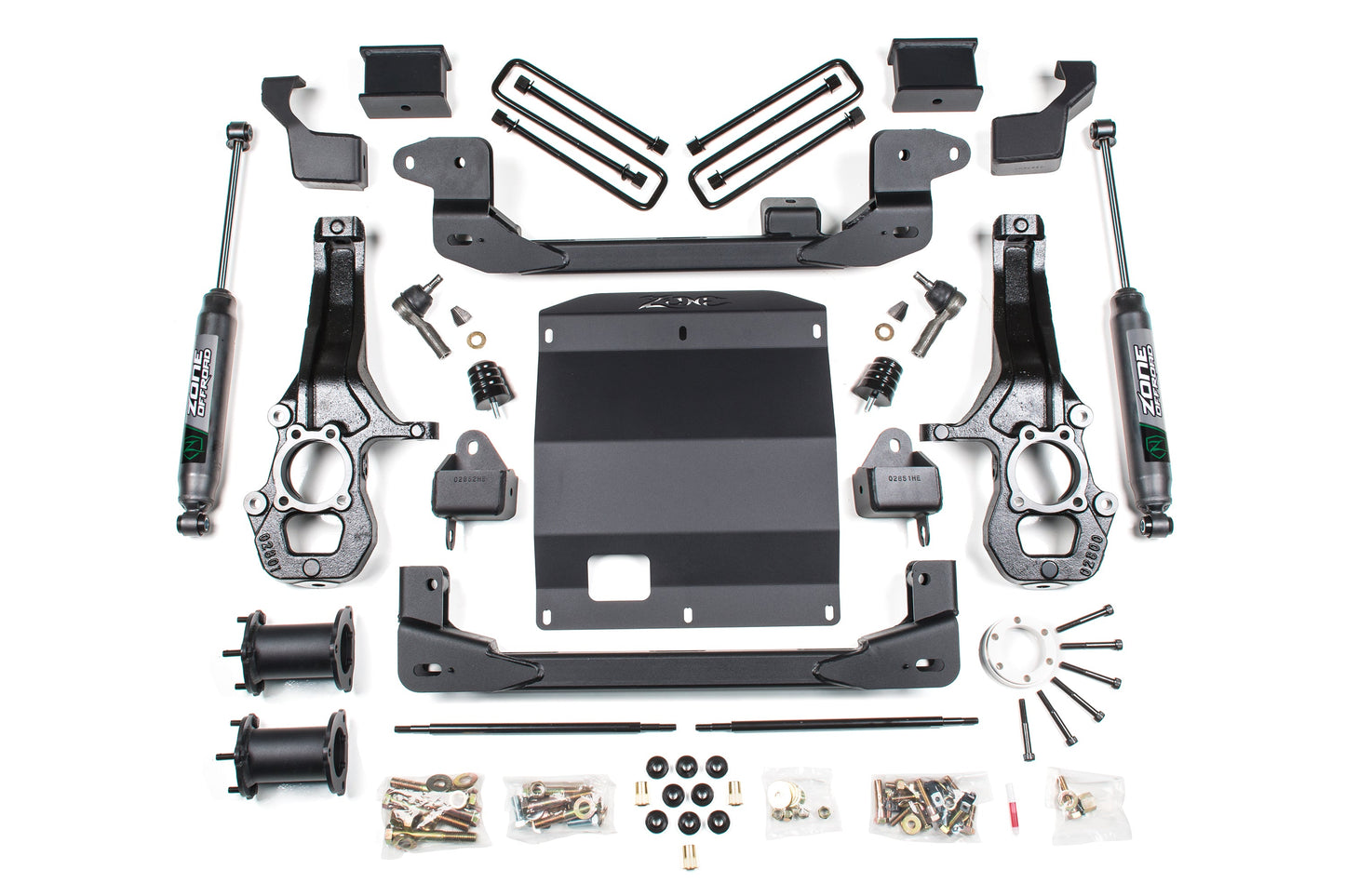

5.5 Inch Lift Kit Chevy Colorado GMC Canyon 4WD 15-22 by Zone Offroad

OVERVIEW

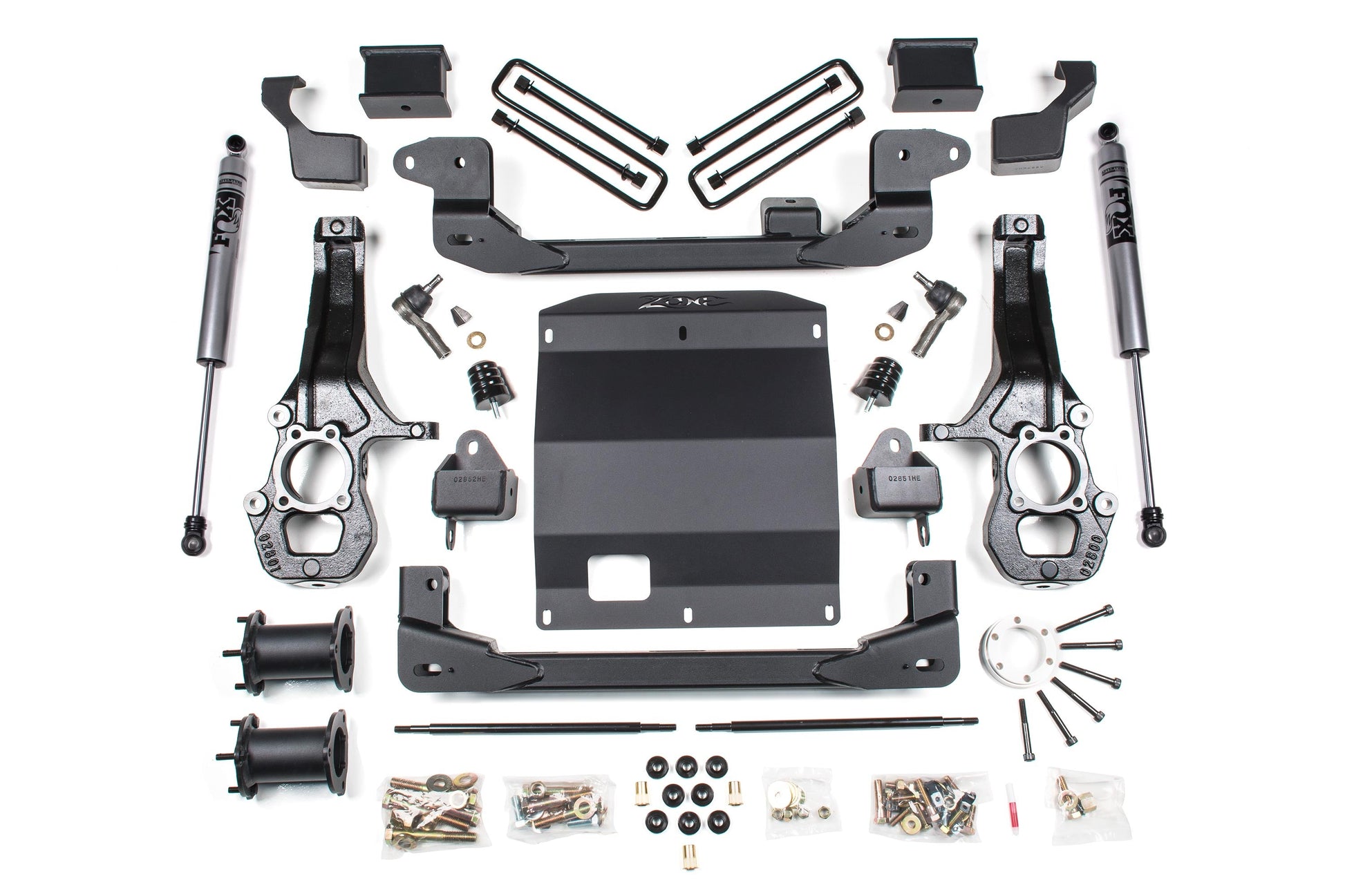

To properly lift the Colorado/Canyon suspension 5.5", we started with ductile cast iron steering knuckles that reposition critical steering and control arm mounting locations, and work in harmony with the heavy-duty, fabricated crossmembers. Differential drop brackets lower and reposition the front differential for correct CV shaft angles and still allow for use of the factory front driveshaft with the help of a spacer that helps retain optimum CV joint positioning. A full-width differential skid plate protects the relocated differential from the underside and ties the front and rear crossmembers together. Factory struts are retained and relocated with top spacers to gain a full 5.5" of lift without requiring any strut disassembly and that position the struts to eliminate binding through wheel travel. In the rear, a new block and U-bolt kit provided 4" of lift to level out the rear with the front. Extended sway bar links, bump stop extensions, and brake line relocation are also included.

Rear Shock Option

Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• Self-lubricating seals

• Black powder coat finish

FOX 2.0 Adventure Series

• 2-inch diameter steel body
• Internal floating piston (IFP) monotube design
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting silver coated finish

IMPORTANT NOTES

1. Factory wheels cannot be reinstalled.
2. Fits Gas and Diesel models. Inner fender trimming may be required.
3. The factory Electric Power Assisted Steering (EPAS) is sensitive to out-of-round, out-of-balance, overly aggressive tires. Depending on the situation, some oscillating feedback in the steering wheel maybe experienced.
4. Will not fit ZR2 Models.

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

6-8 hrs

Difficulty Level :

Difficult

Tools Needed :

Torx Bit / Socket Set, Cut-off Tool, Wrenches: Standard

SPECIFICATION

• Front Lift Method : Strut Spacer
• Front Lift Height : 5.5"
• Rear Lift Method : Block
• Rear Lift Height : 4"
• Shocks Included : Yes
• Lift Height : 4-5.5"

FITMENT

Year	Make	Model	Submodel	Drive Type	Fuel Type	Position	Lift Height
2015	Chevrolet	Colorado	ALL	ALL	ALL	Front and Rear	5.5"
2015	GMC	Canyon	ALL	ALL	ALL	Front and Rear	5.5"
2016	Chevrolet	Colorado	ALL	ALL	ALL	Front and Rear	5.5"
2016	GMC	Canyon	ALL	ALL	ALL	Front and Rear	5.5"
2017	Chevrolet	Colorado	Base	ALL	ALL	Front and Rear	5.5"
2017	Chevrolet	Colorado	LT	ALL	ALL	Front and Rear	5.5"
2017	Chevrolet	Colorado	WT	ALL	ALL	Front and Rear	5.5"
2017	Chevrolet	Colorado	Z71	ALL	ALL	Front and Rear	5.5"
2017	GMC	Canyon	ALL	ALL	ALL	Front and Rear	5.5"
2018	Chevrolet	Colorado	Base	ALL	ALL	Front and Rear	5.5"
2018	Chevrolet	Colorado	LT	ALL	ALL	Front and Rear	5.5"
2018	Chevrolet	Colorado	WT	ALL	ALL	Front and Rear	5.5"
2018	Chevrolet	Colorado	Z71	ALL	ALL	Front and Rear	5.5"
2018	GMC	Canyon	ALL	ALL	ALL	Front and Rear	5.5"
2019	Chevrolet	Colorado	Base	ALL	ALL	Front and Rear	5.5"
2019	Chevrolet	Colorado	LT	ALL	ALL	Front and Rear	5.5"
2019	Chevrolet	Colorado	WT	ALL	ALL	Front and Rear	5.5"
2019	Chevrolet	Colorado	Z71	ALL	ALL	Front and Rear	5.5"
2019	GMC	Canyon	ALL	ALL	ALL	Front and Rear	5.5"
2020	Chevrolet	Colorado	Base	ALL	ALL	Front and Rear	5.5"
2020	Chevrolet	Colorado	LT	ALL	ALL	Front and Rear	5.5"
2020	Chevrolet	Colorado	WT	ALL	ALL	Front and Rear	5.5"
2020	Chevrolet	Colorado	Z71	ALL	ALL	Front and Rear	5.5"
2020	GMC	Canyon	ALL	ALL	ALL	Front and Rear	5.5"
2021	Chevrolet	Colorado	LT	ALL	ALL	Front and Rear	5.5"
2021	Chevrolet	Colorado	WT	ALL	ALL	Front and Rear	5.5"
2021	Chevrolet	Colorado	Z71	ALL	ALL	Front and Rear	5.5"
2021	Chevrolet	Colorado	Z71 LT	ALL	ALL	Front and Rear	5.5"
2021	GMC	Canyon	ALL	ALL	ALL	Front and Rear	5.5"
2022	Chevrolet	Colorado	LT	ALL	ALL	Front and Rear	5.5"
2022	Chevrolet	Colorado	WT	ALL	ALL	Front and Rear	5.5"
2022	Chevrolet	Colorado	Z71	ALL	ALL	Front and Rear	5.5"
2022	Chevrolet	Colorado	Z71 LT	ALL	ALL	Front and Rear	5.5"
2022	GMC	Canyon	ALL	ALL	ALL	Front and Rear	5.5"
