4 Inch Lift Kit Jeep Wrangler TJ 97-02 by Zone Offroad

4 Inch Lift Kit Jeep Wrangler TJ 97-02 by Zone Offroad

$579.70 USD
$579.70 USD
Sale Sold out
Shock Option

OVERVIEW

Want the perfect combination of off road performance and on road handling? This 4" Suspension Lift lets you clear 33" tires and have the ground clearance and wheel travel you want when you venture off road. Fits 4WD 1997 - 2002 Jeep Wrangler (TJ).

Features & Benefits

  • Bump stop extensions properly limit up-travel, protecting your vehicle.
  • Full length replacement coil springs add additional ride height while maintaining ride quality.
  • Heavy-duty lower control arms improve strength and articulation while correcting caster.
  • Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll.
  • Rear track bar bracket correctly positions rear axle under vehicle.
  • Transfer case drop kit included to correct rear driveline angle and allow use of factory rear driveshaft.

Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 15 x 8 and 3.5 in. Backspace
  • 33 x 12.5 with 16 x 8 and 3.5 in. Backspace
  • 33 x 12.5 with 17 x 9 and 3.5 in. Backspace

Shock Option

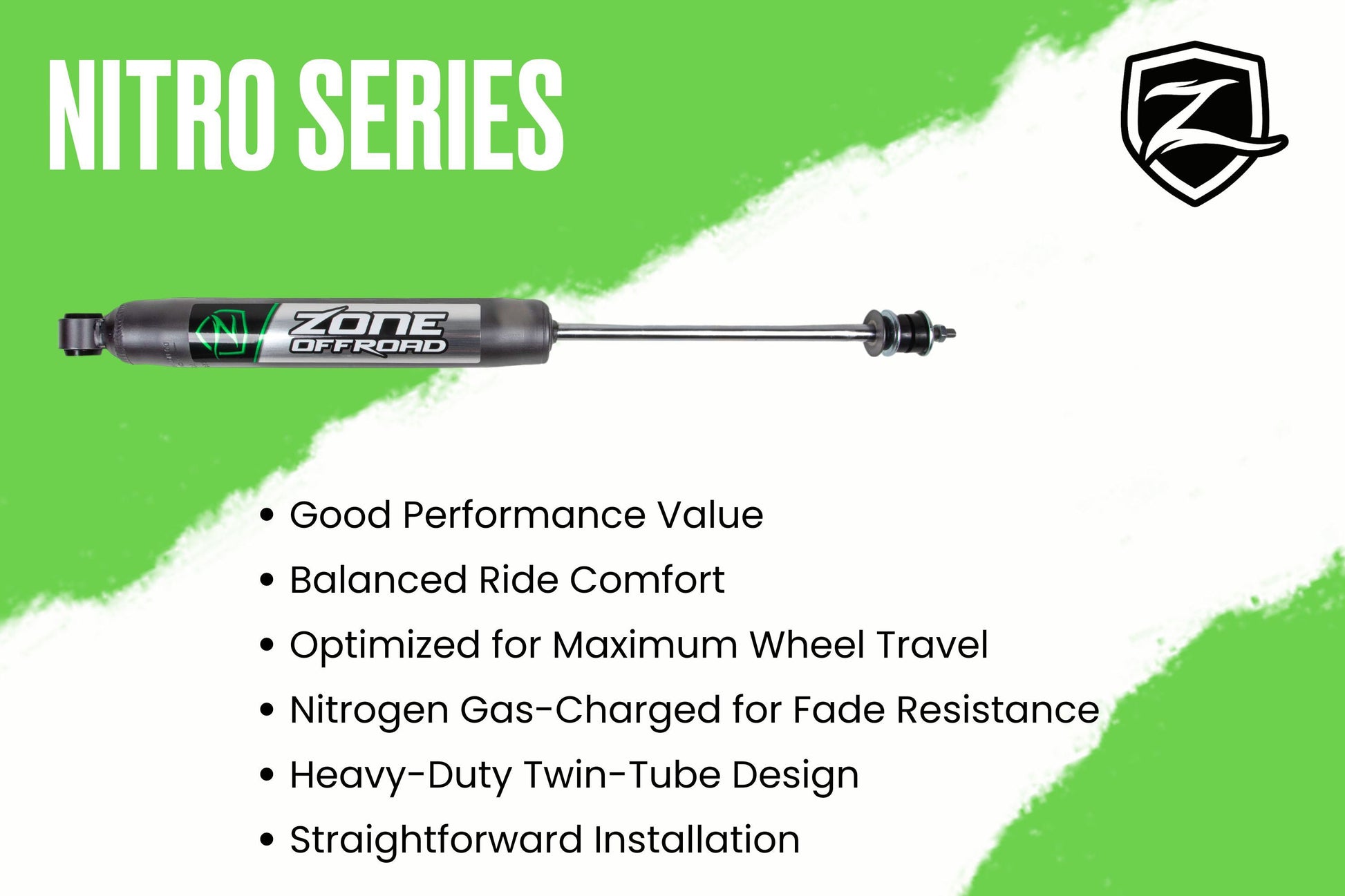

Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

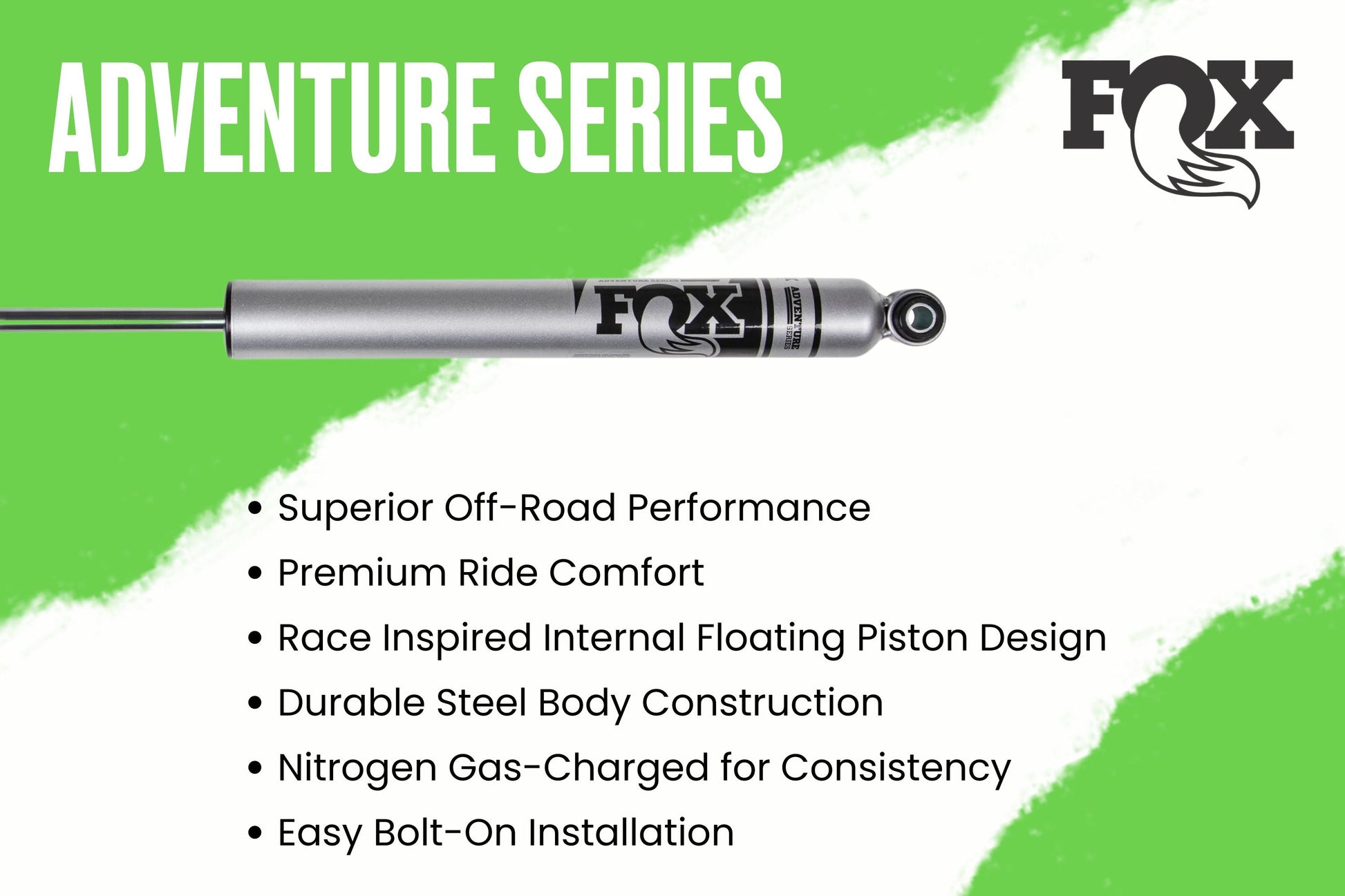

FOX 2.0 Adventure Series

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

Fits Rubicon and Unlimited models.

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

6 hrs

Difficulty Level :

Moderate

SPECIFICATION

  • Front Lift Method : Coil Spring
  • Front Lift Height : 4"
  • Rear Lift Method : Coil Spring
  • Rear Lift Height : 4"
  • Shocks Included : Yes

FITMENT

Year Make Model Submodel Drive Type Fuel Type Position Lift Height
1997 Jeep Wrangler ALL ALL ALL Front and Rear 4"
1998 Jeep Wrangler ALL ALL ALL Front and Rear 4"
1999 Jeep Wrangler ALL ALL ALL Front and Rear 4"
2000 Jeep Wrangler ALL ALL ALL Front and Rear 4"
2001 Jeep Wrangler ALL ALL ALL Front and Rear 4"
2002 Jeep Wrangler ALL ALL ALL Front and Rear 4"
2003 Jeep Wrangler ALL ALL ALL Front and Rear 4"
2004 Jeep Wrangler ALL ALL ALL Front and Rear 4"
2005 Jeep Wrangler ALL ALL ALL Front and Rear 4"
2006 Jeep Wrangler ALL ALL ALL Front and Rear 4"
