Zone Offroad

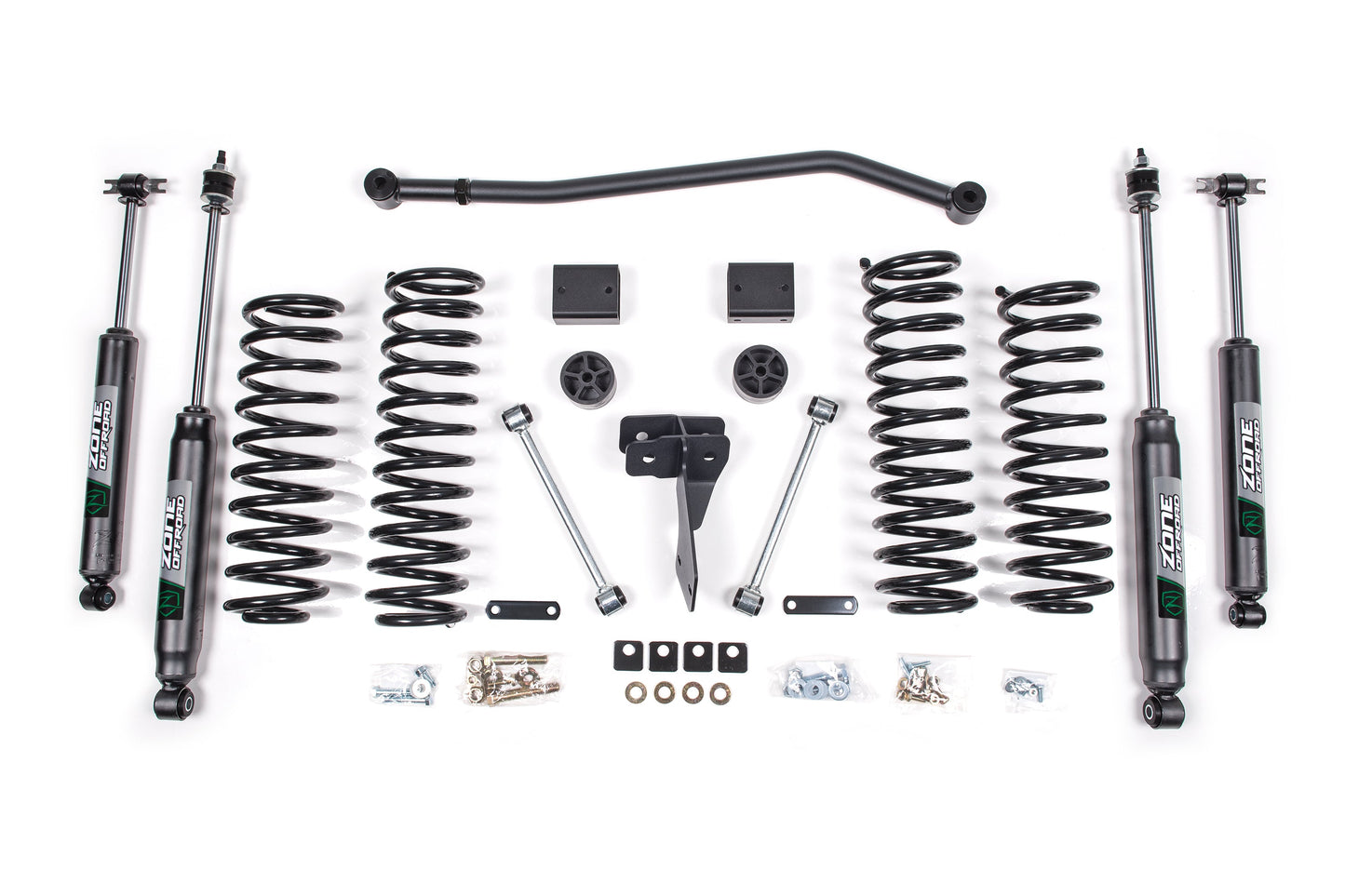

4 Inch Lift Kit Jeep Wrangler JK 07-11 4-Door by Zone Offroad

4 Inch Lift Kit Jeep Wrangler JK 07-11 4-Door by Zone Offroad

$886.75 USD
$886.75 USD
Sale Sold out
Shock Option

OVERVIEW

Want the perfect combination of off road performance and on road handling? This 4" Suspension Lift lets you clear 35" tires and have the ground clearance and wheel travel you want when you venture off road. Fits 4 door 4WD 2007 - 2011 Jeep Wrangler (JK).

Features & Benefits

  • Brake line relocation brackets increase wheel travel and allow use of factory brake lines.
  • Bump stop extensions properly limit up-travel, protecting your vehicle.
  • Full length replacement coil springs add additional ride height while maintaining ride quality.
  • Heavy-duty, adjustable front track bar re-centers front axle and adds strength.
  • Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll.
  • Lower cam washers correct axle caster for front end alignment.
  • Rear track bar bracket correctly positions rear axle under vehicle.

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 16 x 8 and 4.5 in. Backspace
  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace

Shock Option

Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

FOX 2.0 Adventure Series

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. 2012-18 models using the stock front driveshaft require exhaust extension kit J5305.


Wheels / Tires:

  • Factory wheels cannot be reinstalled with lift kit due to rear sway bar interference. Follow recommended wheel/tire specifications for proper clearance.

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

4.5 hrs

SPECIFICATION

  • Front Lift Method : Coil Spring
  • Front Lift Height : 4"
  • Rear Lift Method : Coil Spring
  • Rear Lift Height : 4"
  • Shocks Included : Yes

  • Difficulty Level :

    Moderately Easy

FITMENT

Year Make Model Submodel Drive Type Fuel Type Position Lift Height
2007 Jeep Wrangler Unlimited Rubicon 4WD ALL Front and Rear 4"
2007 Jeep Wrangler Unlimited Sahara ALL ALL Front and Rear 4"
2007 Jeep Wrangler Unlimited X ALL ALL Front and Rear 4"
2008 Jeep Wrangler Unlimited Rubicon 4WD ALL Front and Rear 4"
2008 Jeep Wrangler Unlimited Sahara ALL ALL Front and Rear 4"
2008 Jeep Wrangler Unlimited X ALL ALL Front and Rear 4"
2009 Jeep Wrangler Unlimited Rubicon 4WD ALL Front and Rear 4"
2009 Jeep Wrangler Unlimited Sahara ALL ALL Front and Rear 4"
2009 Jeep Wrangler Unlimited X ALL ALL Front and Rear 4"
2010 Jeep Wrangler Unlimited Mountain 4WD ALL Front and Rear 4"
2010 Jeep Wrangler Unlimited Rubicon 4WD ALL Front and Rear 4"
2010 Jeep Wrangler Unlimited Sahara ALL ALL Front and Rear 4"
2010 Jeep Wrangler Unlimited Sport ALL ALL Front and Rear 4"
2010 Jeep Wrangler Unlimited X ALL ALL Front and Rear 4"
2011 Jeep Wrangler Unlimited 70th Anniversary ALL ALL Front and Rear 4"
2011 Jeep Wrangler Unlimited Rubicon ALL ALL Front and Rear 4"
2011 Jeep Wrangler Unlimited Sahara ALL ALL Front and Rear 4"
2011 Jeep Wrangler Unlimited Sport ALL ALL Front and Rear 4"
2011 Jeep Wrangler Unlimited X ALL ALL Front and Rear 4"
2012 Jeep Wrangler Unlimited ALL ALL Front and Rear 4"
2012 Jeep Wrangler Unlimited Altitude ALL ALL Front and Rear 4"
2012 Jeep Wrangler Unlimited Mountain ALL ALL Front and Rear 4"
2012 Jeep Wrangler Unlimited Rubicon ALL ALL Front and Rear 4"
2012 Jeep Wrangler Unlimited Sahara ALL ALL Front and Rear 4"
2012 Jeep Wrangler Unlimited Sport ALL ALL Front and Rear 4"
2013 Jeep Wrangler Unlimited Rubicon ALL ALL Front and Rear 4"
2013 Jeep Wrangler Unlimited Sahara ALL ALL Front and Rear 4"
2013 Jeep Wrangler Unlimited Sport ALL ALL Front and Rear 4"
2014 Jeep Wrangler Unlimited Rubicon ALL ALL Front and Rear 4"
2014 Jeep Wrangler Unlimited Sahara ALL ALL Front and Rear 4"
2014 Jeep Wrangler Unlimited Sport ALL ALL Front and Rear 4"
2014 Jeep Wrangler Unlimited Willys Wheeler ALL ALL Front and Rear 4"
2015 Jeep Wrangler Unlimited Altitude ALL ALL Front and Rear 4"
2015 Jeep Wrangler Unlimited Hard Rock ALL ALL Front and Rear 4"
2015 Jeep Wrangler Unlimited Rubicon ALL ALL Front and Rear 4"
2015 Jeep Wrangler Unlimited Sahara ALL ALL Front and Rear 4"
2015 Jeep Wrangler Unlimited Sport ALL ALL Front and Rear 4"





View full details
