4 Inch Lift Kit Jeep Grand Cherokee ZJ 93-98 by Zone Offroad

4 Inch Lift Kit Jeep Grand Cherokee ZJ 93-98 by Zone Offroad

$951.75 USD
$951.75 USD
Sale Sold out
Shock Option

OVERVIEW

Want the perfect combination of looks, off road performance and on road handling? This 4" Suspension Lift lets you clear 32" tires and have the ground clearance and wheel travel you want when you venture off road. Fits 4WD 1993 - 1998 Jeep Grand Cherokee (ZJ).

Features & Benefits

  • Bump stop extensions properly limit up-travel, protecting your vehicle. Full length replacement coil springs add additional ride height while maintaining ride quality.
  • Heavy-duty lower control arms improve strength and articulation while correcting caster.
  • Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll.
  • Rear track bar bracket correctly positions rear axle under vehicle.
  • Transfer case drop kit included to correct rear driveline angle and allow use of factory rear driveshaft.

Recommended Tires & Wheels

(Trimming may be required)

  • 31 x 10.5 with 15 x 8 and 4 in. Backspace
  • 32 x 11.5 with 15 x 8 and 4.5 in. Backspace
  • 32 x 11.5 with 16 x 8 and 4.5 in. Backspace

Shock Option

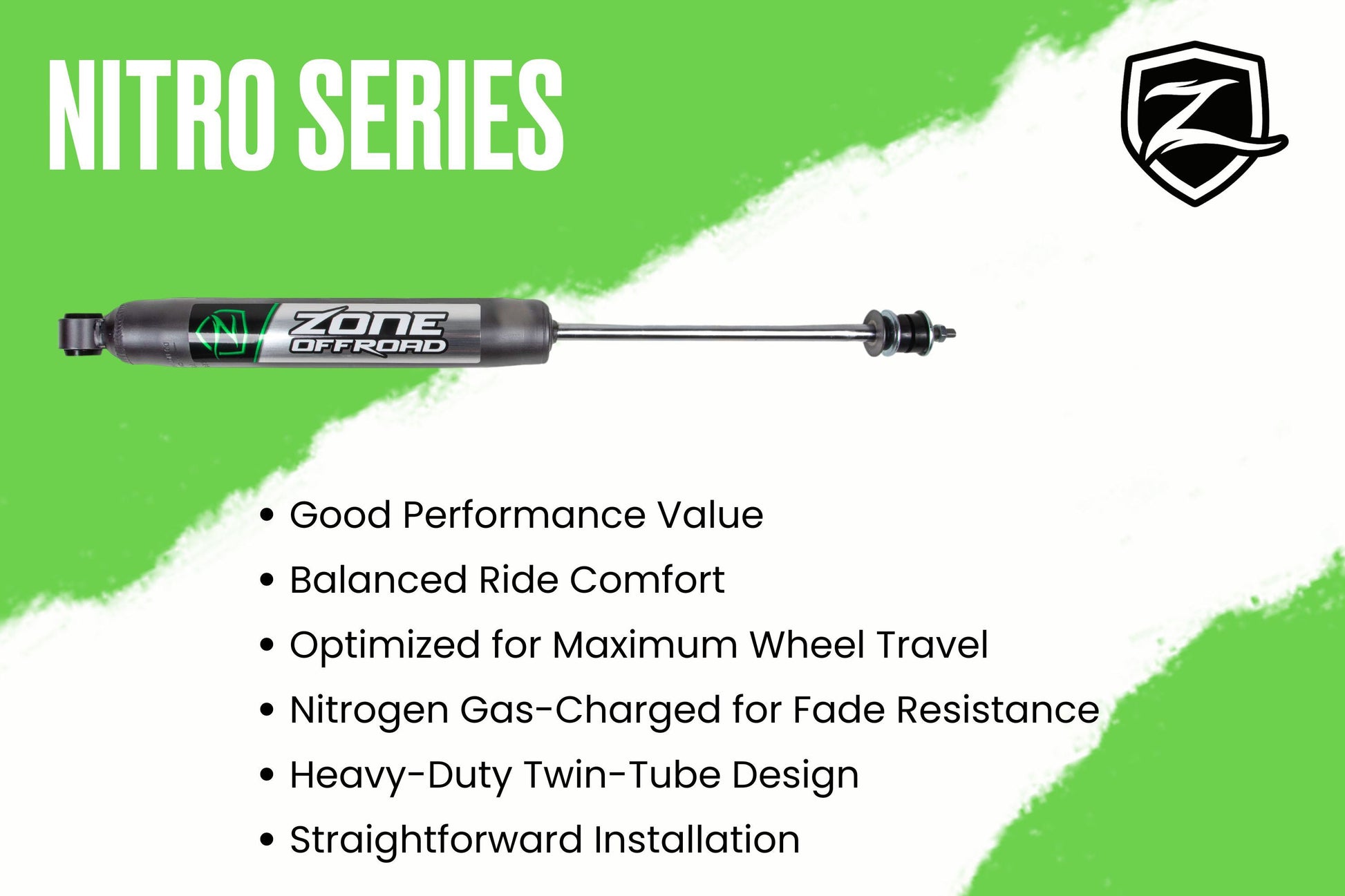

Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

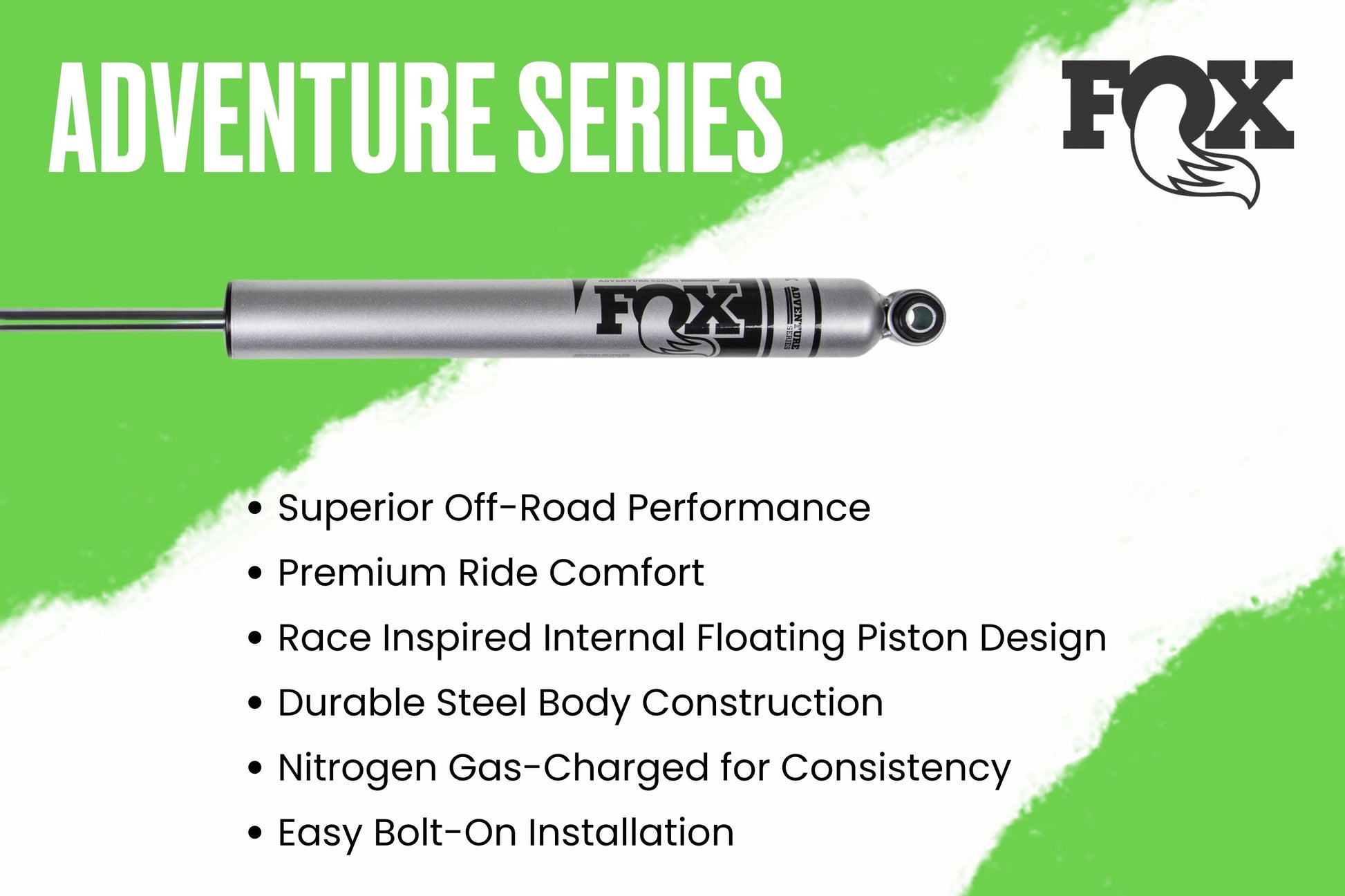

FOX 2.0 Adventure Series

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. CV Front Driveshaft? ZJs were manufactured with different types of driveshafts. If your vehicle is equipped with factory a CV style front driveshaft, an aftermarket U-joint style driveshaft will be required to eliminate driveline vibration. For help understanding this problem and to help find a solution, please contact customer support.
  2. Fitment: V8 engine equipped models may not achieve stated lift height. If equipped with V8 or other heavy aftermarket accessories such as a winch bumper 3/4" front coil spacers are recommended to achieve additional front ride height. Add in configuration / checkout.

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

5.5 hrs

Difficulty Level :

Moderate

SPECIFICATION

  • Front Lift Method : Coil Spring
  • Front Lift Height : 4"
  • Rear Lift Method : Coil Spring
  • Rear Lift Height : 4"
  • Shocks Included : Yes

FITMENT

Year Make Model Submodel Drive Type Fuel Type Position Lift Height
1993 Jeep Grand Cherokee Base 4WD ALL Front and Rear 4"
1993 Jeep Grand Cherokee Laredo 4WD ALL Front and Rear 4"
1993 Jeep Grand Cherokee Limited 4WD ALL Front and Rear 4"
1994 Jeep Grand Cherokee ALL 4WD ALL Front and Rear 4"
1995 Jeep Grand Cherokee ALL 4WD ALL Front and Rear 4"
1996 Jeep Grand Cherokee ALL 4WD ALL Front and Rear 4"
1996 Jeep Grand Cherokee ALL AWD ALL Front and Rear 4"
1997 Jeep Grand Cherokee ALL 4WD ALL Front and Rear 4"
1997 Jeep Grand Cherokee ALL AWD ALL Front and Rear 4"
1998 Jeep Grand Cherokee ALL 4WD ALL Front and Rear 4"
1998 Jeep Grand Cherokee ALL AWD ALL Front and Rear 4"
