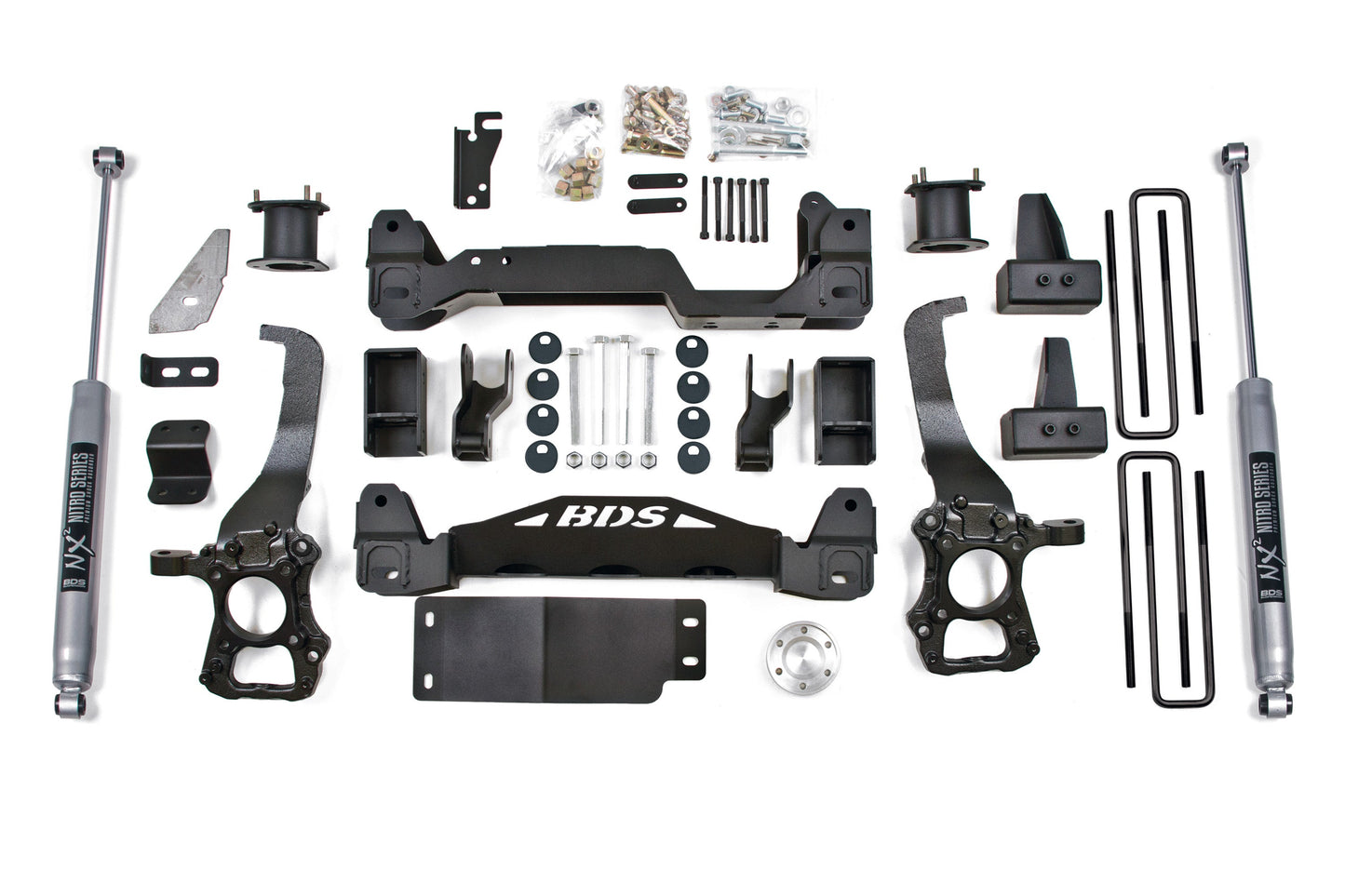

4 Inch Lift Kit Ford F150 4WD 09-13 by BDS Suspension

4 Inch Lift Kit Ford F150 4WD 09-13 by BDS Suspension

$2,174.65 USD
$2,174.65 USD
Sale Sold out
Rear Shock Option

OVERVIEW

BDS raises the bar for performance and capability of your 2009-2013 Ford F150 4WD trucks with 4-inch suspension lift kits. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes high strength cast steel lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Rear Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

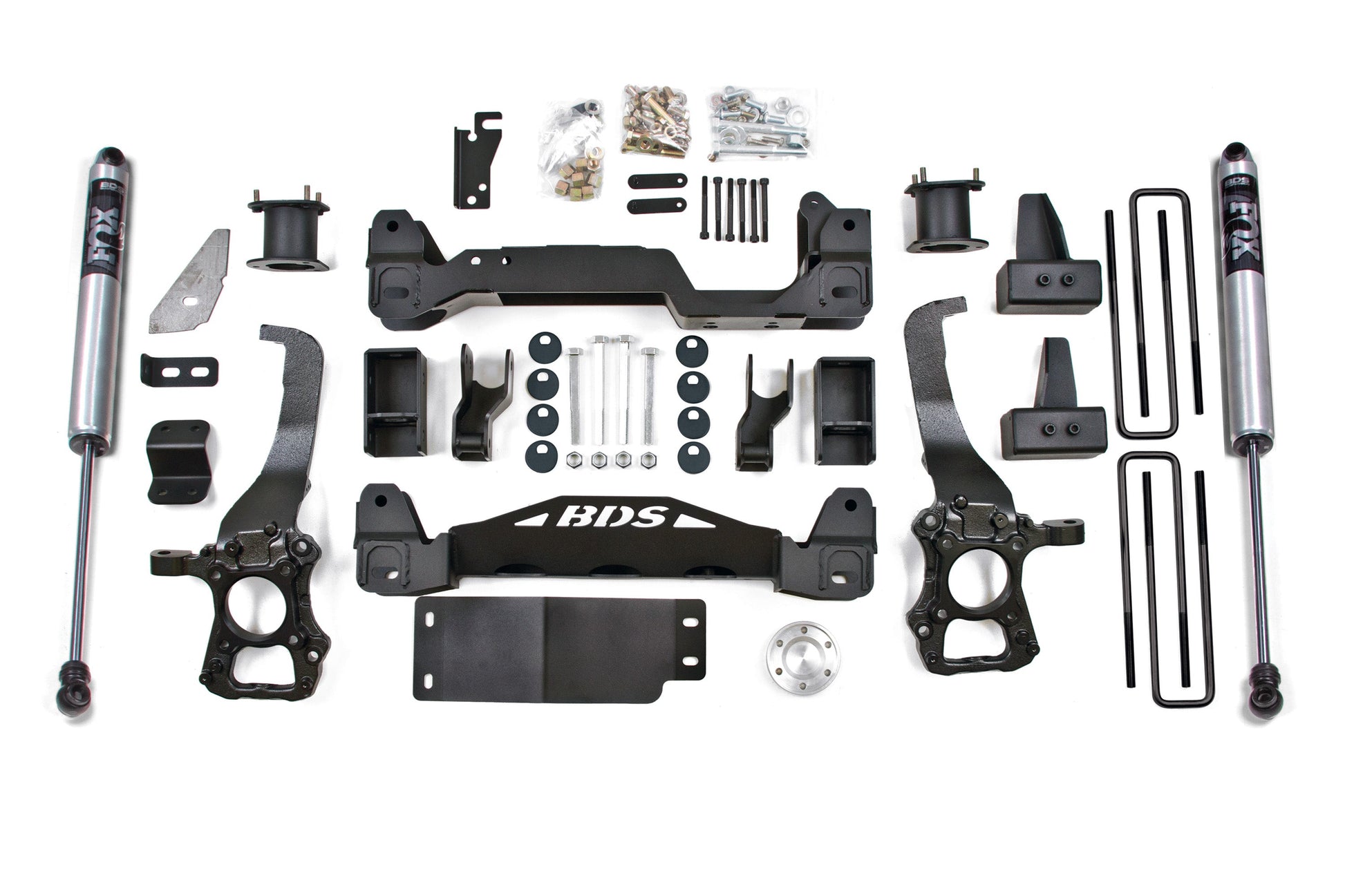

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

IMPORTANT NOTES

  1. Requires frame bracket modification and welding.
  2. 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
  3. E-brake bracket required for factory powersteps (123018)
  4. For a level to tail low appearance use #023415 with Kit#598H. Block kits replace factory 1-1/4" block.
  5. Will fit EcoBoost models.
  6. Models equipped with AWD/ Auto 4wd may require front driveshaft replacement.
  7. Will not fit HD models (7 lug).
  8. This kit is FMVSS No.126 Compliant

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

10 hrs

Difficulty Level :

Difficult

SPECIFICATION

  • Front Lift Method : Cross-Member
  • Front Lift Height : 4"
  • Rear Lift Method : Block
  • Rear Lift Height : 4"
  • Shocks Included : Yes
  • Lift Height : 4-5.5"

FITMENT

Year Make Model Submodel Drive Type Fuel Type
2009 Ford F-150 FX4 ALL ALL
2009 Ford F-150 King Ranch 4WD ALL
2009 Ford F-150 Lariat 4WD ALL
2009 Ford F-150 Platinum 4WD ALL
2009 Ford F-150 STX 4WD ALL
2009 Ford F-150 XL 4WD ALL
2009 Ford F-150 XLT 4WD ALL
2010 Ford F-150 FX4 ALL ALL
2010 Ford F-150 King Ranch 4WD ALL
2010 Ford F-150 Lariat 4WD ALL
2010 Ford F-150 Platinum 4WD ALL
2010 Ford F-150 STX 4WD ALL
2010 Ford F-150 XL 4WD ALL
2010 Ford F-150 XLT 4WD ALL
2011 Ford F-150 FX4 ALL ALL
2011 Ford F-150 King Ranch 4WD ALL
2011 Ford F-150 Lariat 4WD ALL
2011 Ford F-150 Lariat Limited 4WD ALL
2011 Ford F-150 Platinum 4WD ALL
2011 Ford F-150 STX 4WD ALL
2011 Ford F-150 XL 4WD ALL
2011 Ford F-150 XLT 4WD ALL
2012 Ford F-150 FX4 ALL ALL
2012 Ford F-150 King Ranch 4WD ALL
2012 Ford F-150 Lariat 4WD ALL
2012 Ford F-150 Platinum 4WD ALL
2012 Ford F-150 STX 4WD ALL
2012 Ford F-150 XL 4WD ALL
2012 Ford F-150 XLT 4WD ALL
2013 Ford F-150 FX4 ALL ALL
2013 Ford F-150 King Ranch 4WD ALL
2013 Ford F-150 Lariat 4WD ALL
2013 Ford F-150 Limited 4WD ALL
2013 Ford F-150 Platinum 4WD ALL
2013 Ford F-150 STX 4WD ALL
2013 Ford F-150 XL 4WD ALL
2013 Ford F-150 XLT 4WD ALL
