Zone Offroad

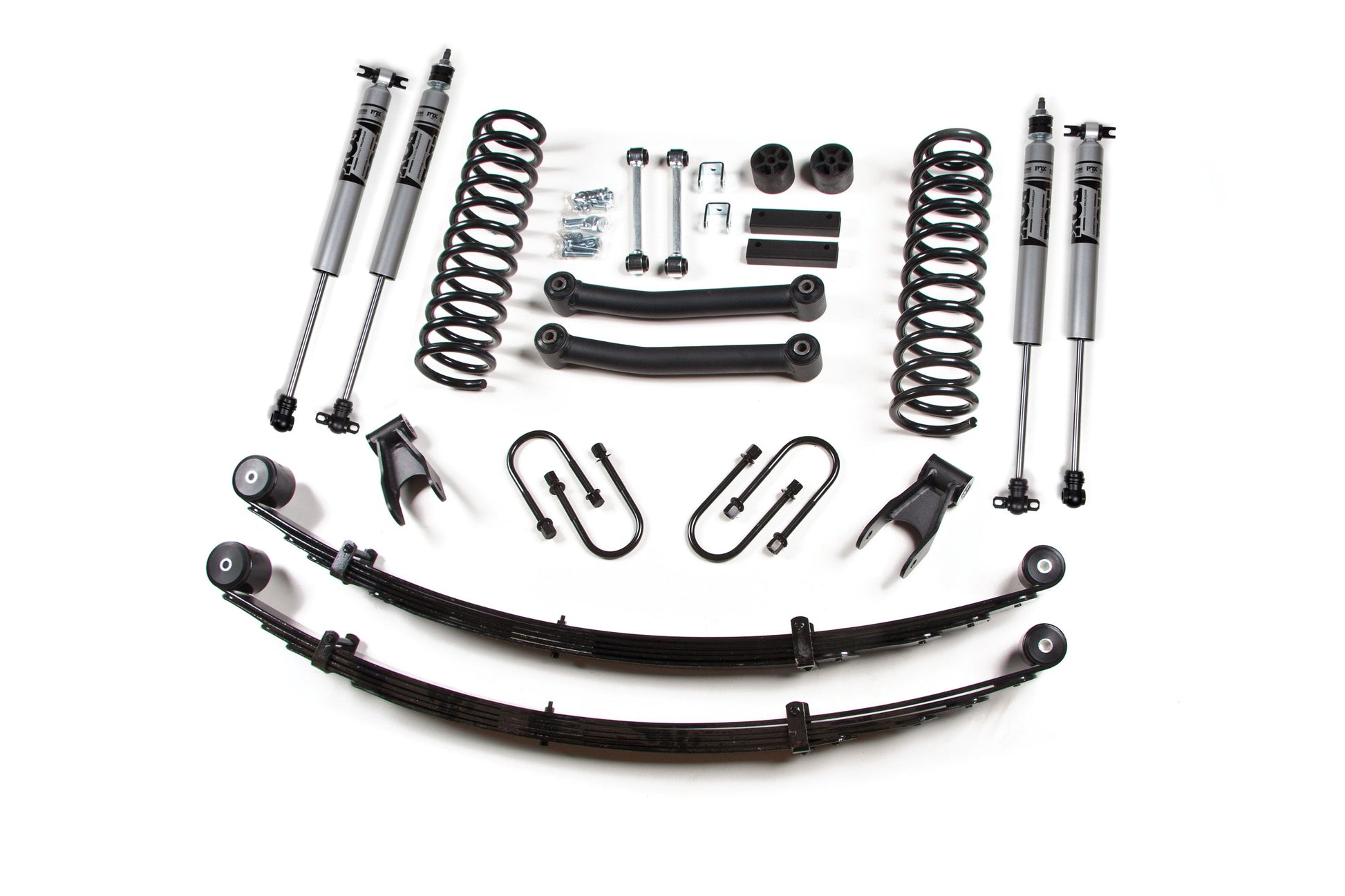

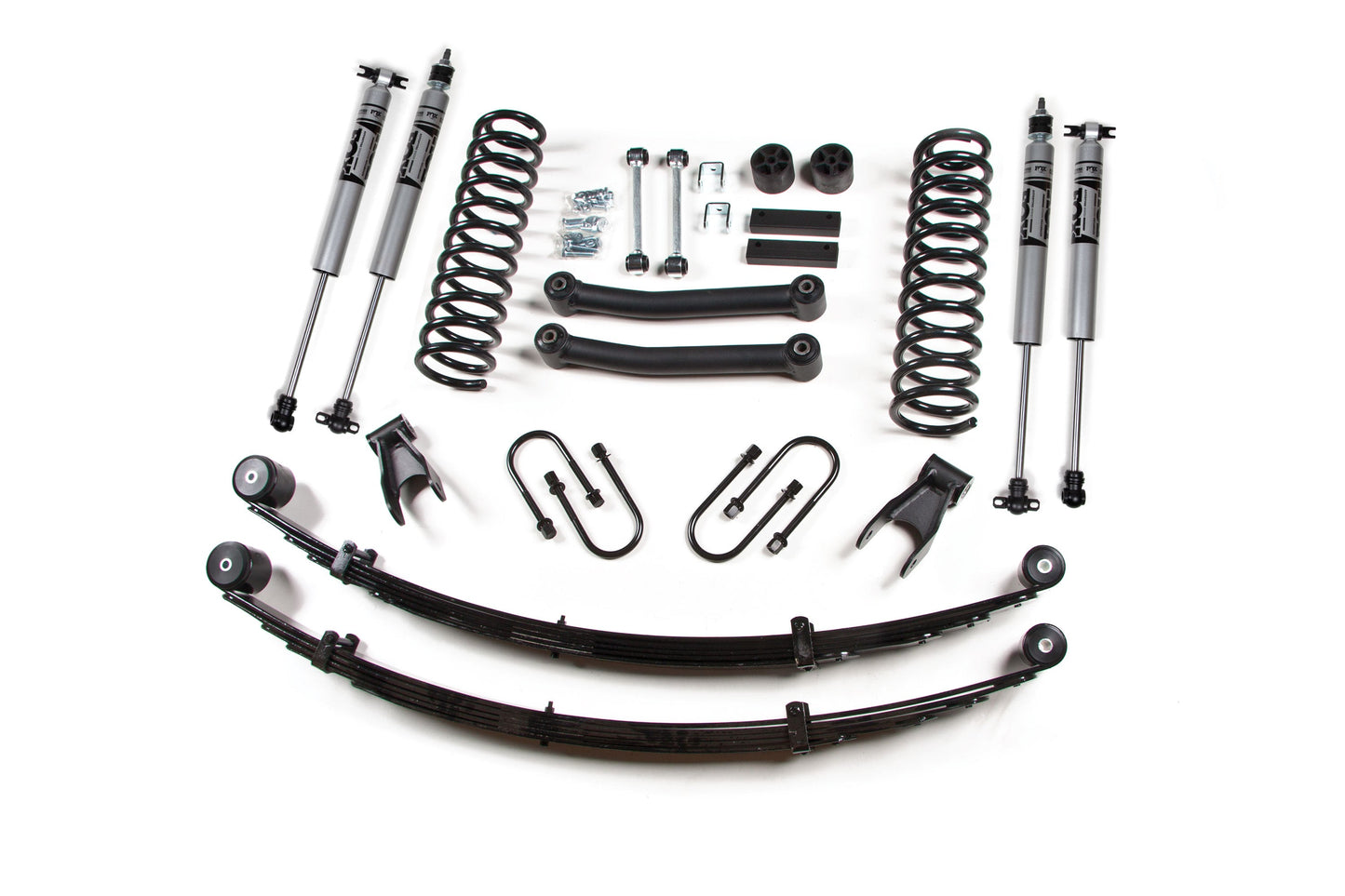

4.5 Inch Lift Kit w/ Springs Jeep Cherokee XJ 84-01 by Zone Offroad

4.5 Inch Lift Kit w/ Springs Jeep Cherokee XJ 84-01 by Zone Offroad

$1,063.65 USD
$1,063.65 USD
Sale Sold out
Rear Axle Option
Shock Option

OVERVIEW

Leave the pavement and explore more in your Jeep with this 4.5" Lift Kit with rear leaf springs. Fit 32" tires and get the ground clearance and wheel travel you want in your 4WD 1984 - 2001 Jeep Cherokee (XJ). Yet another kit from enthusiasts, for enthusiasts.

Features & Benefits

  • Brake line relocation brackets allow re-use of factory brake lines. Full length replacement coil springs add additional ride height while maintaining ride quality.
  • Heavy-duty lower control arms improve strength and articulation while correcting caster.
  • Heavy-duty replacement front leaf springs provide lift and great ride quality.
  • Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll. High-strength, black e-coated U-bolts.
  • High-strength shackles provide lift and improve articulation.
  • High-strength shackles provide lift and improve articulation.
  • Transfer case drop kit included to correct rear driveline angle and allow use of factory rear driveshaft.

Recommended Tires & Wheels

(Trimming may be required)

  • 31 x 10.5 with 15 x 8 and 4.75 in. Backspace
  • 32 x 11.5 with 15 x 8 and 4.75 in. Backspace
  • 32 x 11.5 with 16 x 8 and 4.75 in. Backspace

Rear Axle Option

This truck was produced with different rear axles. Be sure to measure the diameter of your rear axle before ordering. The easiest way to accurately measure the diameter of your rear axle is to measure the inner diameter of your rear-axle U-bolts; to do so, use a tape to measure the distance between the inside edges of the threaded ends of your u-bolts.

  • Chrysler 8.25 Rear Axle (3 Inch Diamater)
  • Dana 35 Rear Axle (2.75 Inch Diameter)

Shock Option

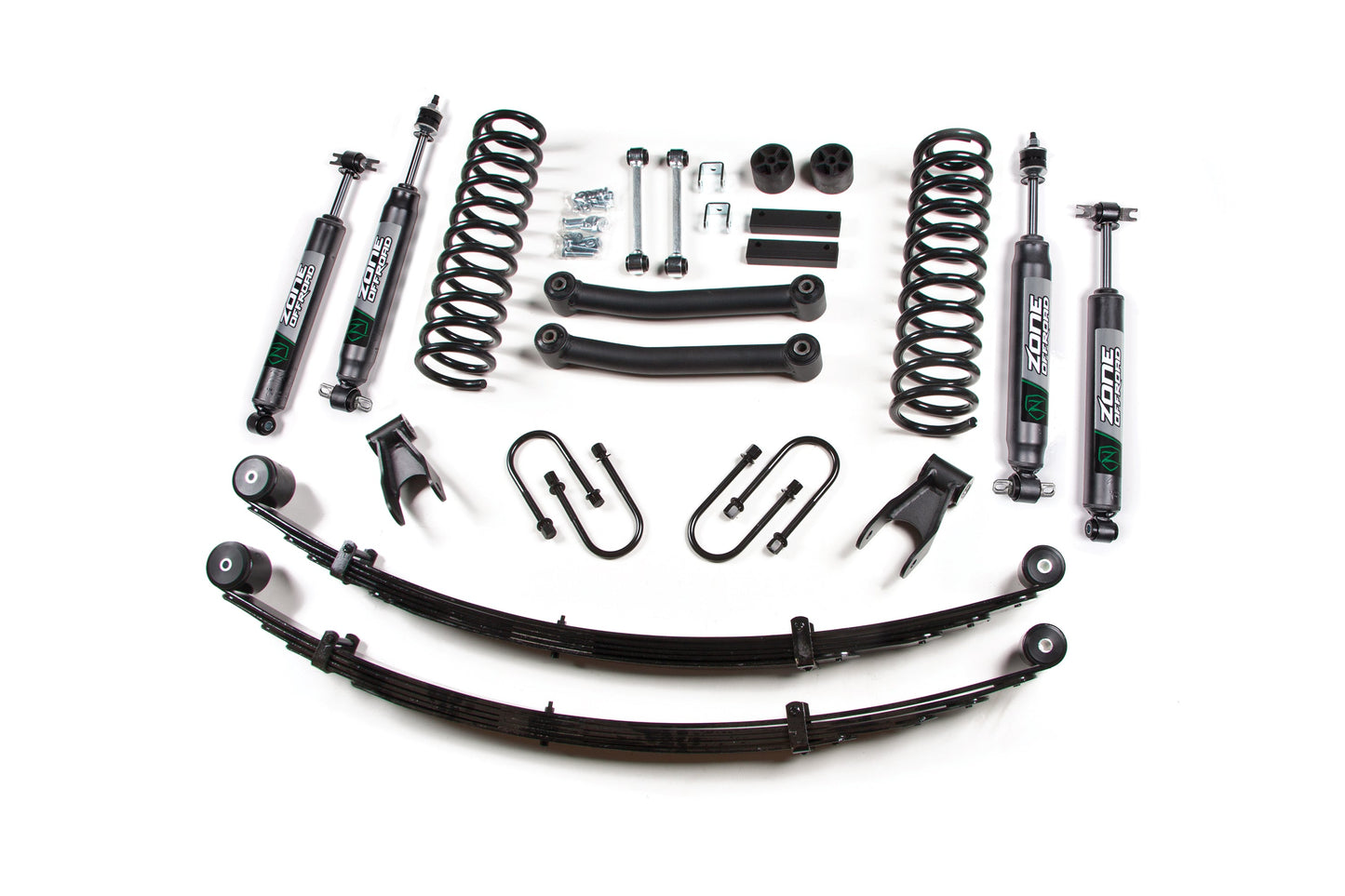

Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

FOX 2.0 Adventure Series

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Leaf springs not designed for excess additional cargo weight, lower ride height may result.
  2. Check Rear Axle Diameter: The XJ was manufactured with different rear axles. You'll need to identify yours to complete an order. To tell the difference, measure the inner diameter (I.D.) of your rear U-bolts. The Chrysler 8.25 rear axle uses a 3" I.D. U-bolt and the Dana 35 rear axle requires a 2-3/4" I.D. U-bolt.

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

5.5 hrs

Difficulty Level :

Moderate
SPECIFICATION
  • Front Lift Method : Coil Spring
  • Front Lift Height : 4.5"
  • Rear Lift Method : Leaf Spring
  • Rear Lift Height : 4"
  • Shocks Included : Yes

FITMENT

Year Make Model Submodel Drive Type Fuel Type Position Lift Height
1984 Jeep Cherokee ALL ALL ALL Front and Rear 4.5"
1985 Jeep Cherokee ALL ALL GAS Front and Rear 4.5"
1986 Jeep Cherokee ALL ALL GAS Front and Rear 4.5"
1987 Jeep Cherokee ALL ALL GAS Front and Rear 4.5"
1988 Jeep Cherokee ALL ALL ALL Front and Rear 4.5"
1989 Jeep Cherokee ALL ALL ALL Front and Rear 4.5"
1990 Jeep Cherokee ALL ALL ALL Front and Rear 4.5"
1991 Jeep Cherokee ALL ALL ALL Front and Rear 4.5"
1992 Jeep Cherokee ALL ALL ALL Front and Rear 4.5"
1993 Jeep Cherokee ALL ALL ALL Front and Rear 4.5"
1994 Jeep Cherokee ALL ALL ALL Front and Rear 4.5"
1995 Jeep Cherokee ALL ALL ALL Front and Rear 4.5"
1996 Jeep Cherokee ALL ALL ALL Front and Rear 4.5"
1997 Jeep Cherokee ALL ALL ALL Front and Rear 4.5"
1998 Jeep Cherokee ALL ALL ALL Front and Rear 4.5"
1999 Jeep Cherokee ALL ALL ALL Front and Rear 4.5"
2000 Jeep Cherokee ALL ALL ALL Front and Rear 4.5"
2001 Jeep Cherokee ALL ALL ALL Front and Rear 4.5"
View full details
