4.5 Inch Lift Kit Jeep Wrangler JK 4-Door 12-18 by BDS Suspension

OVERVIEW

Take your 2012-2018 Jeep Wrangler JK 4 Door to the next level and improve the ride with this 4.5-inch lift kit from BDS Suspension. Designed to strengthen stance, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front, the lift kit includes 4" Pro-Ride coil springs, capable of full coil bind, and 3" bump stop extensions to control compression travel while increasing wheel travel. Also included are brake line brackets, sway bar links, a front track bar relocation bracket, and a pitman arm, all designed to improve steering and handling geometry. The front suspension in this 4-inch lift kit is finished off with fixed-length lower control arms featuring OE-grade rubber bushings, which reposition the front axle for proper alignment.

In the rear, the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame-mounted track bar relocation bracket to correct axle shift. For proper rear axle position and pinion angle, this kit includes fixed-length rear lower control arms and adjustable rear upper arms. Round out this 4" lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive-rate Pro-Ride coil springs is supplied to provide the correct lift height and a smooth, predictable ride across various terrains. Manufactured from high-tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameters. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle, paired with a heavy-duty track bar drop bracket to keep them in phase throughout suspension travel while recentering the front axle.

Shock Option

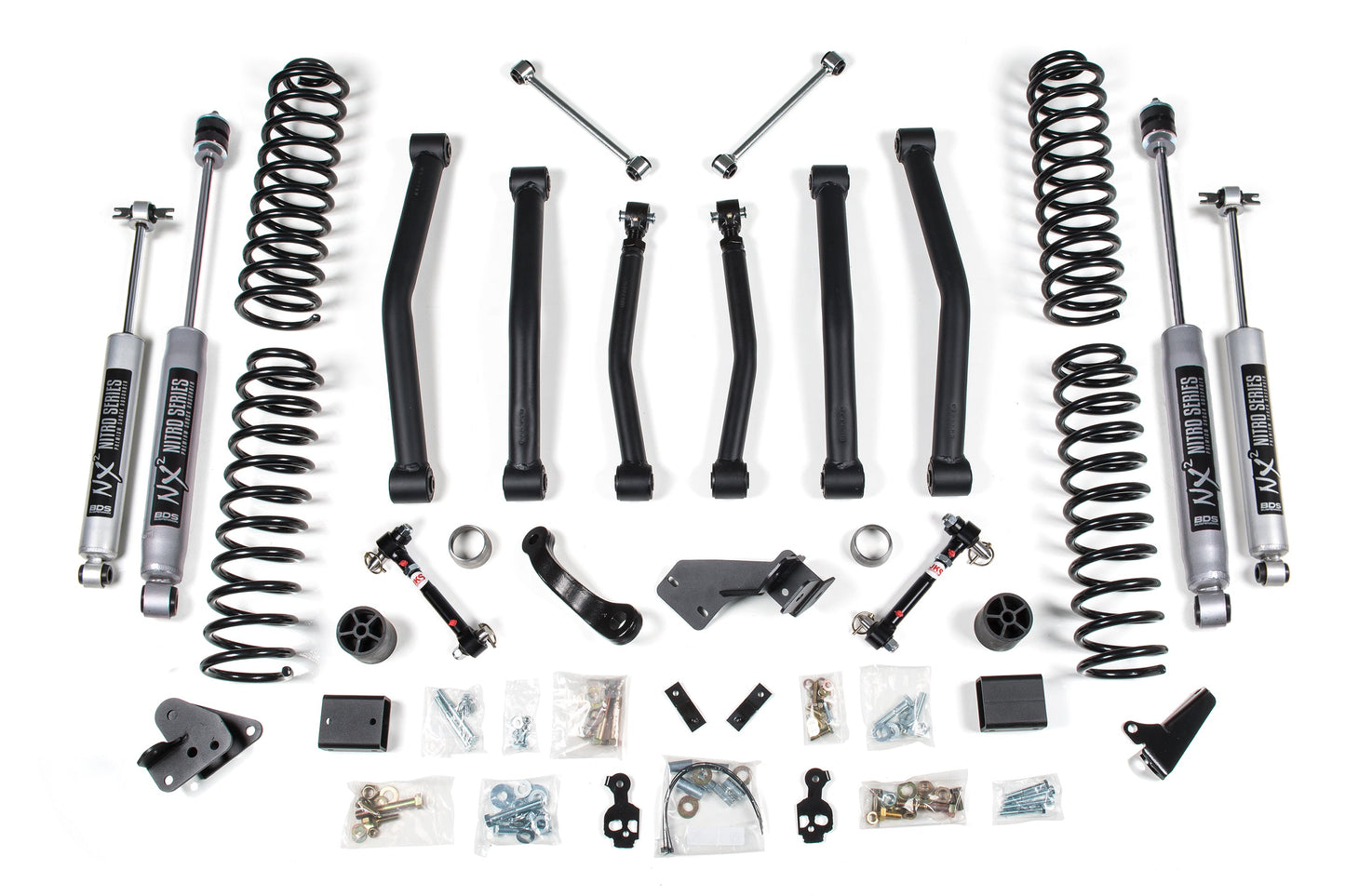

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

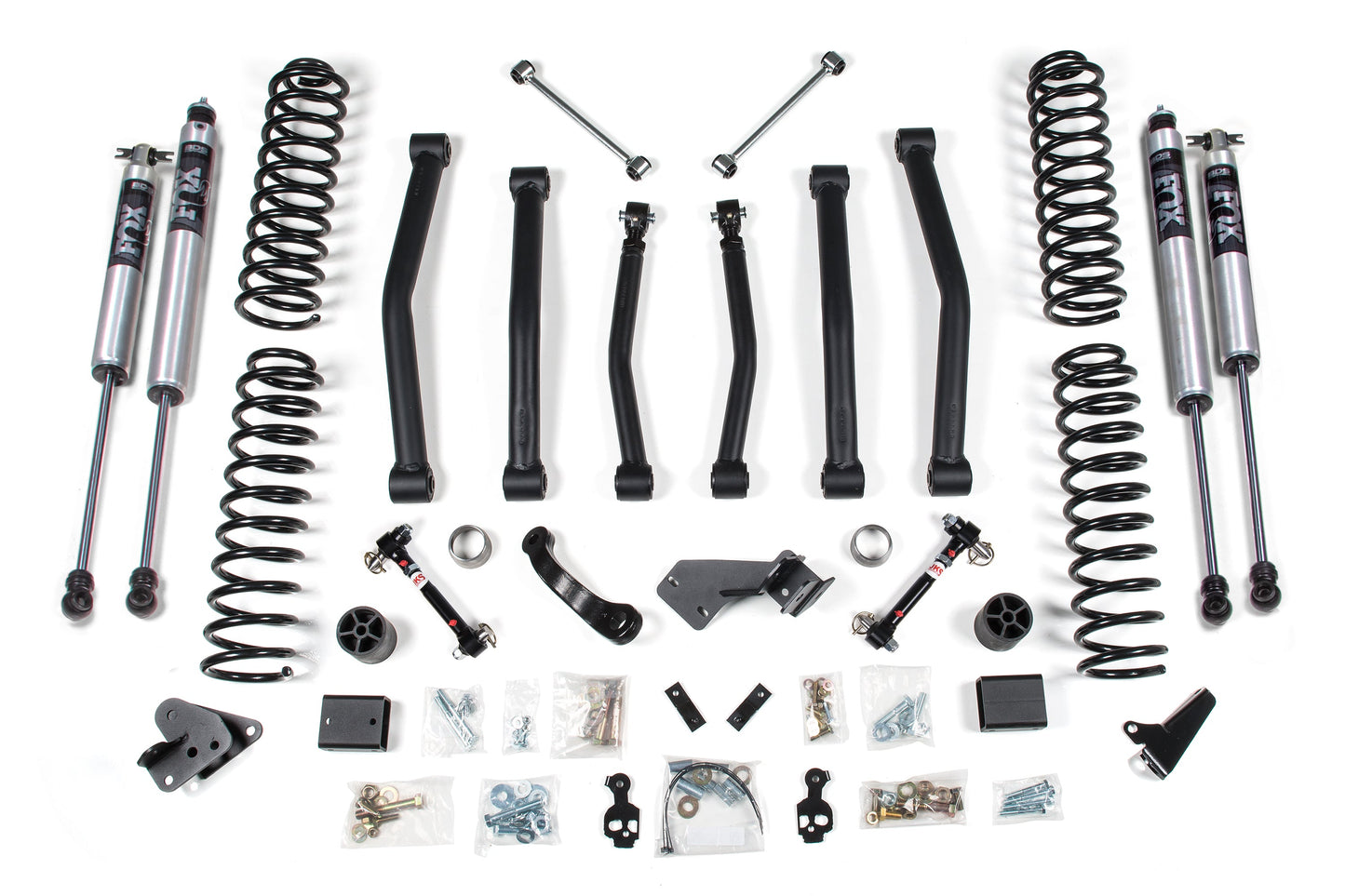

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

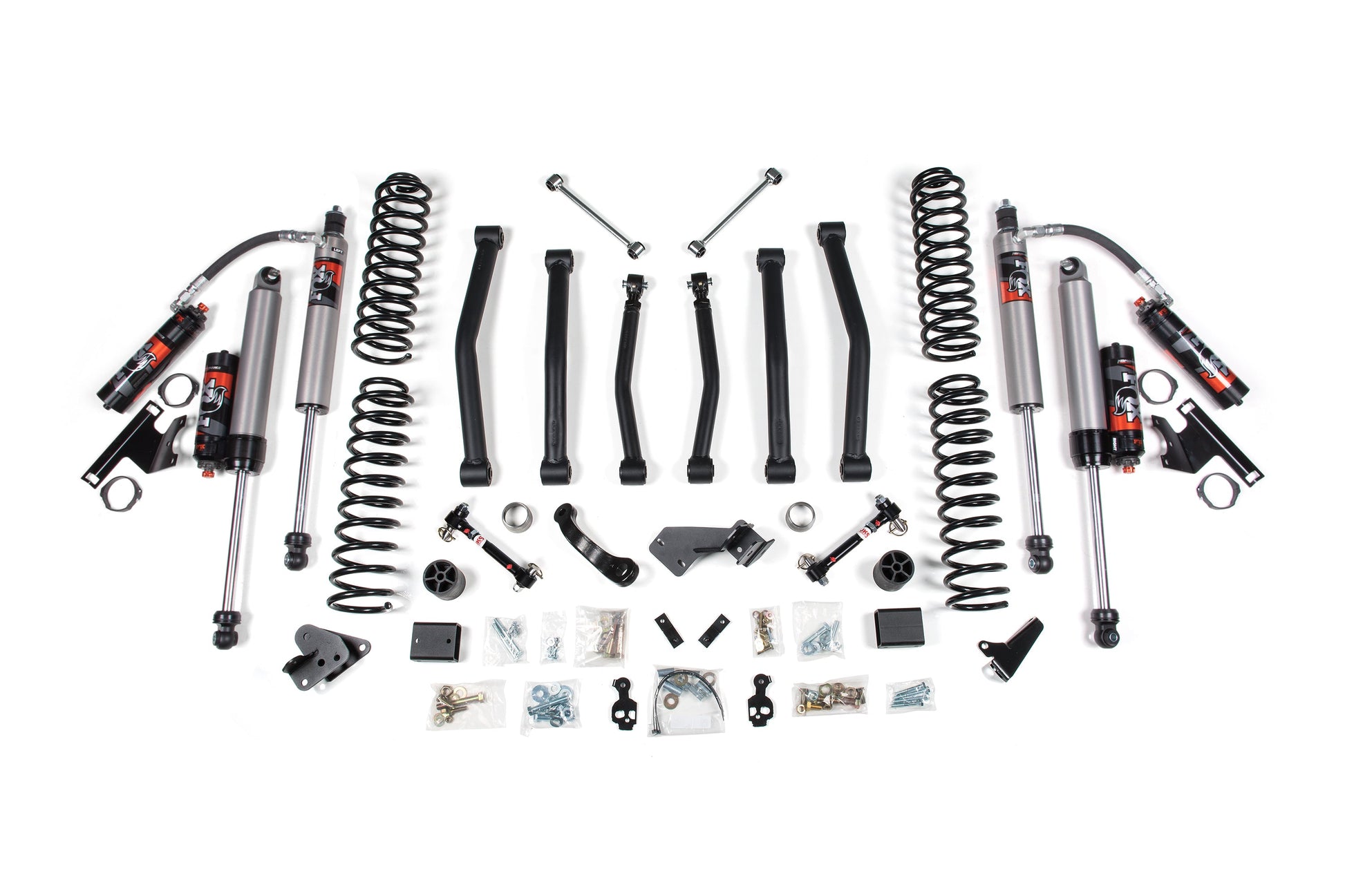

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Sway Bar Link Option

Disconnects

• Gain 30 percent more axle articulationl by disconnecting your front sway bar
• Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation
• Stainless tapered mounting posts and self-align bushings allow you to connect or disconnect on unlevel surfaces
• Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability

Fixed Links

• Required for use on Rubicon models with electronic disconnect.
• Improves handling with proper sway bar operating angle
• Heavy-duty steel construction with zinc finish
• Polyurethane hourglass bushings for long life and quiet operation

Important Notes

1. Will not fit 2wd models.
2. The fixed front and rear lower control arms can be upgraded to the adjustable flex end arms listed in the accessories.
3. The front driveshaft is maxed out at full droop and on certain models the driveshaft boot can contact the transmission pan.
4. Exhaust modification may be required.
5. This kit is FMVSS No.126 Compliant

INSTALLATION

Installation Guides :

Download Guide 1

Download Guide 2

Download Guide 3

Download Guide 4

Est. Install Time :

8 hrs

Difficulty Level :

Moderately Easy

Specialty Tools Needed :

Basic Hand Tools, Torque Wrench, Drill / Bit Set, Jack / Jack Stands, Pitman Arm Puller

SPECIFICATION

• Front Lift Method : Coil Spring
• Front Lift Height : 4.5"
• Rear Lift Method : Coil Spring
• Rear Lift Height : 4"
• Shocks Included : Yes
• Lift Height : 4-5.5"

FITMENT

Year	Make	Model	Submodel	Drive Type	Fuel Type	Position	Lift Height
2012	Jeep	Wrangler	Unlimited Sport	ALL	ALL
2012	Jeep	Wrangler	Unlimited Sahara	ALL	ALL
2012	Jeep	Wrangler	Unlimited	ALL	ALL
2012	Jeep	Wrangler	Unlimited Mountain	ALL	ALL
2012	Jeep	Wrangler	Unlimited Rubicon	ALL	ALL
2012	Jeep	Wrangler	Unlimited Altitude	ALL	ALL
2013	Jeep	Wrangler	Unlimited Rubicon	ALL	ALL
2013	Jeep	Wrangler	Unlimited Sport	ALL	ALL
2013	Jeep	Wrangler	Unlimited Sahara	ALL	ALL
2014	Jeep	Wrangler	Unlimited Willys Wheeler	ALL	ALL
2014	Jeep	Wrangler	Unlimited Rubicon	ALL	ALL
2014	Jeep	Wrangler	Unlimited Sahara	ALL	ALL
2014	Jeep	Wrangler	Unlimited Sport	ALL	ALL
2015	Jeep	Wrangler	Unlimited Altitude	ALL	ALL
2015	Jeep	Wrangler	Unlimited Rubicon	ALL	ALL
2015	Jeep	Wrangler	Unlimited Sport	ALL	ALL
2015	Jeep	Wrangler	Unlimited Sahara	ALL	ALL
2015	Jeep	Wrangler	Unlimited Hard Rock	ALL	ALL
2016	Jeep	Wrangler	Unlimited 75th Anniversary	ALL	ALL
2016	Jeep	Wrangler	Unlimited Sport S	ALL	ALL
2016	Jeep	Wrangler	Unlimited Rubicon	ALL	ALL
2016	Jeep	Wrangler	Unlimited Black Bear	ALL	ALL
2016	Jeep	Wrangler	Unlimited Sahara	ALL	ALL
2016	Jeep	Wrangler	Unlimited Sport	ALL	ALL
2017	Jeep	Wrangler	Unlimited Rubicon	ALL	ALL
2017	Jeep	Wrangler	Unlimited Winter Edition	ALL	ALL
2017	Jeep	Wrangler	Unlimited Smoky Mountain	ALL	ALL
2017	Jeep	Wrangler	Unlimited Sport	ALL	ALL
2017	Jeep	Wrangler	Unlimited Sahara	ALL	ALL
2018	Jeep	Wrangler JK	Unlimited Sahara	ALL	ALL
2018	Jeep	Wrangler JK	Unlimited Willys Wheeler	ALL	ALL
2018	Jeep	Wrangler JK	Unlimited Sport	ALL	ALL
2018	Jeep	Wrangler JK	Unlimited Sport S	ALL	ALL
2018	Jeep	Wrangler JK	Unlimited Rubicon	ALL	ALL
