4.5 Inch Lift Kit Jeep Commanche MJ 86-92 by Zone Offroad

4.5 Inch Lift Kit Jeep Commanche MJ 86-92 by Zone Offroad

$860.70 USD
$860.70 USD
Sale Sold out
Shock Option

OVERVIEW

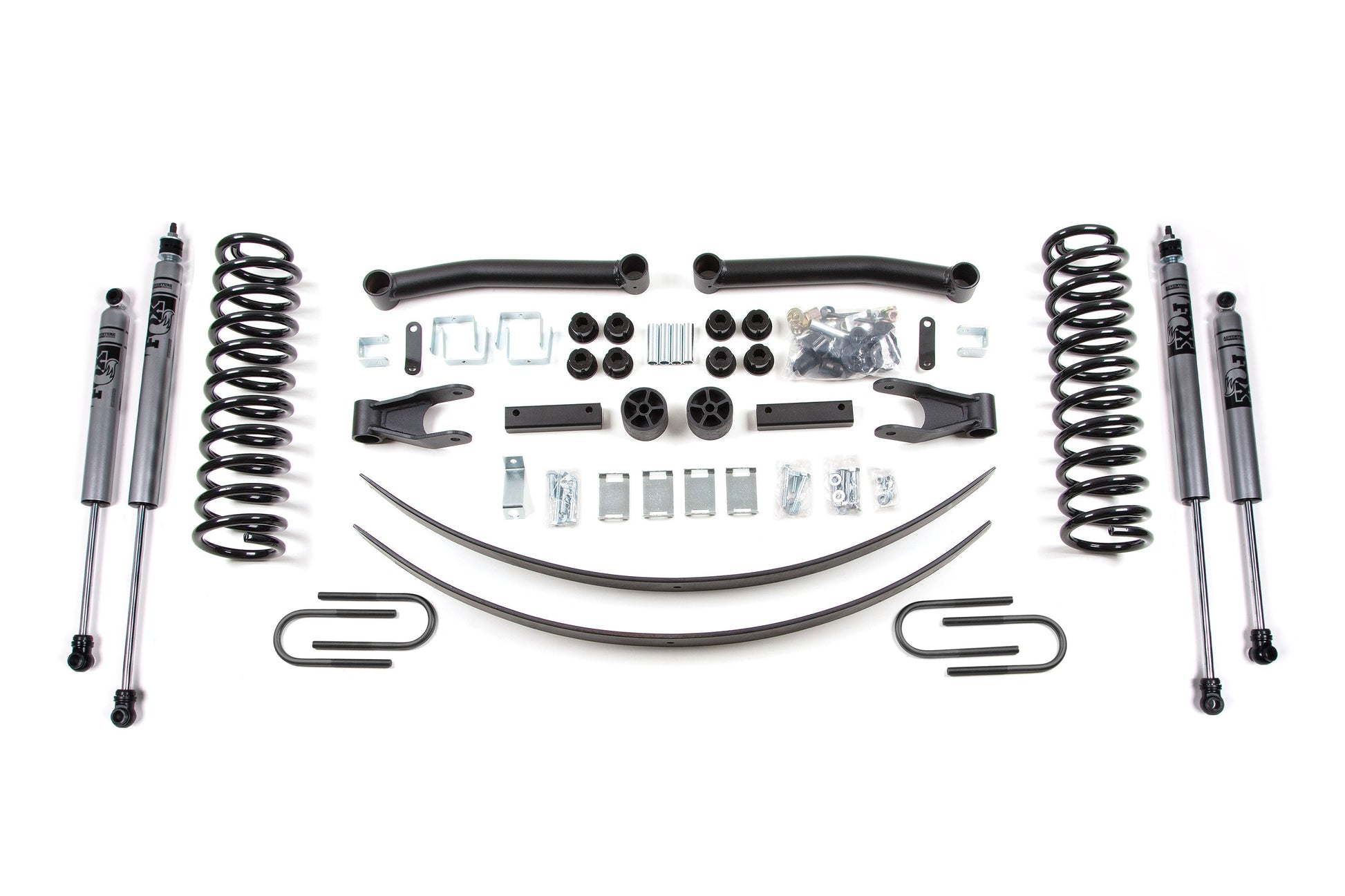

You've got a unique truck, now give it the unique look and performance it deserves with this 4.5" Lift Kit. Fit 32" tires and get the ground clearance and increased wheel travel you want in your 4WD 1986 - 1992 Jeep Comanche (MJ).

Features & Benefits

  • Brake line relocation brackets allow re-use of factory brake lines. Full length replacement coil springs add additional ride height while maintaining ride quality.
  • Heavy-duty lower control arms improve strength and articulation while correcting caster.
  • Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll. High-strength, black e-coated U-bolts.
  • High-strength shackles provide lift and improve articulation.
  • Rear Add-A-Leaf Kit provides additional lift and improves weight capacity.
  • Transfer case drop kit included to correct rear driveline angle and allow use of factory rear driveshaft.

Recommended Tires & Wheels

(Trimming may be required)

  • 31 x 10.5 with 15 x 8 and 4.75 in. Backspace
  • 32 x 11.5 with 15 x 8 and 4.75 in. Backspace

Shock Option

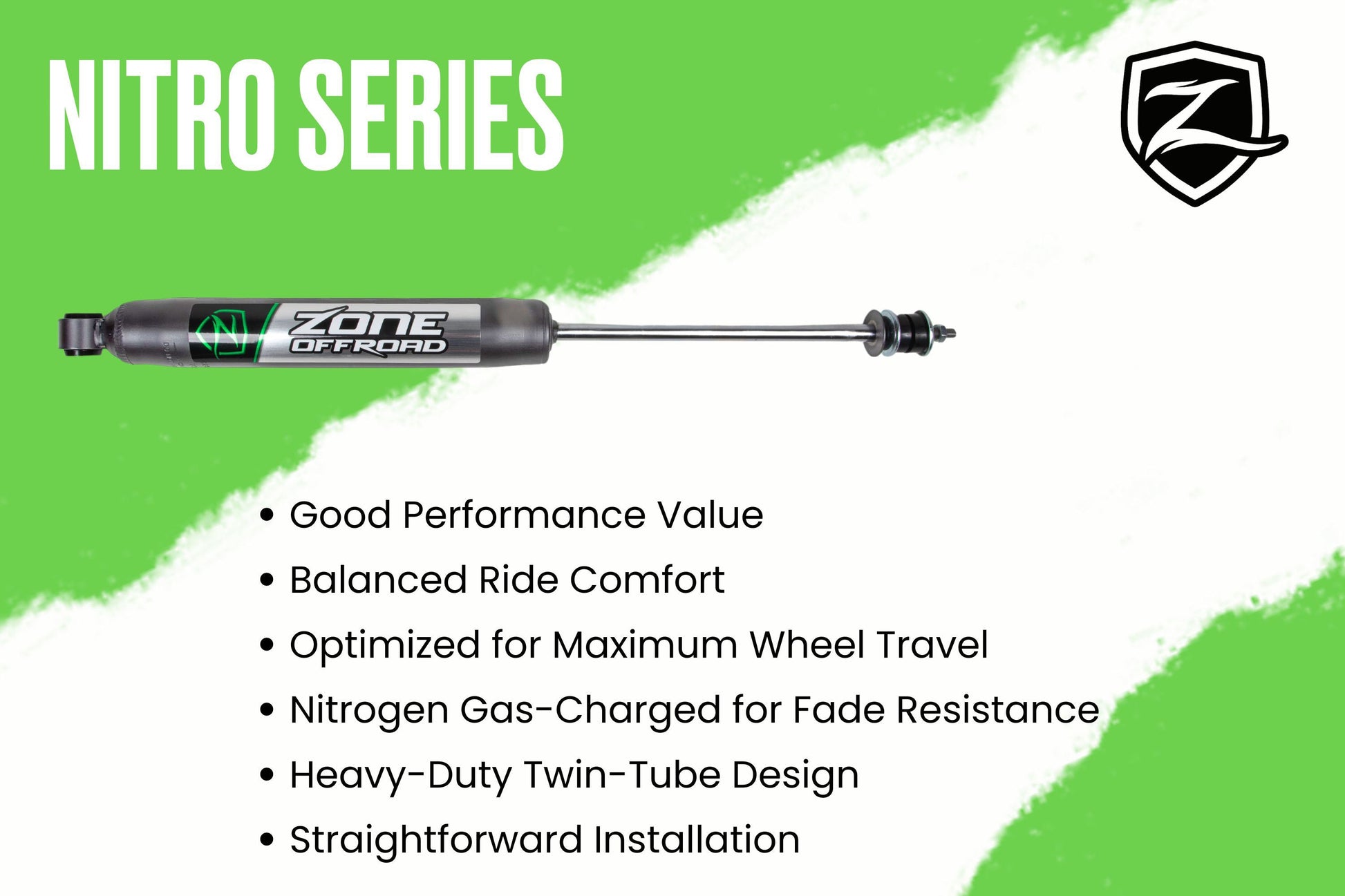

Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

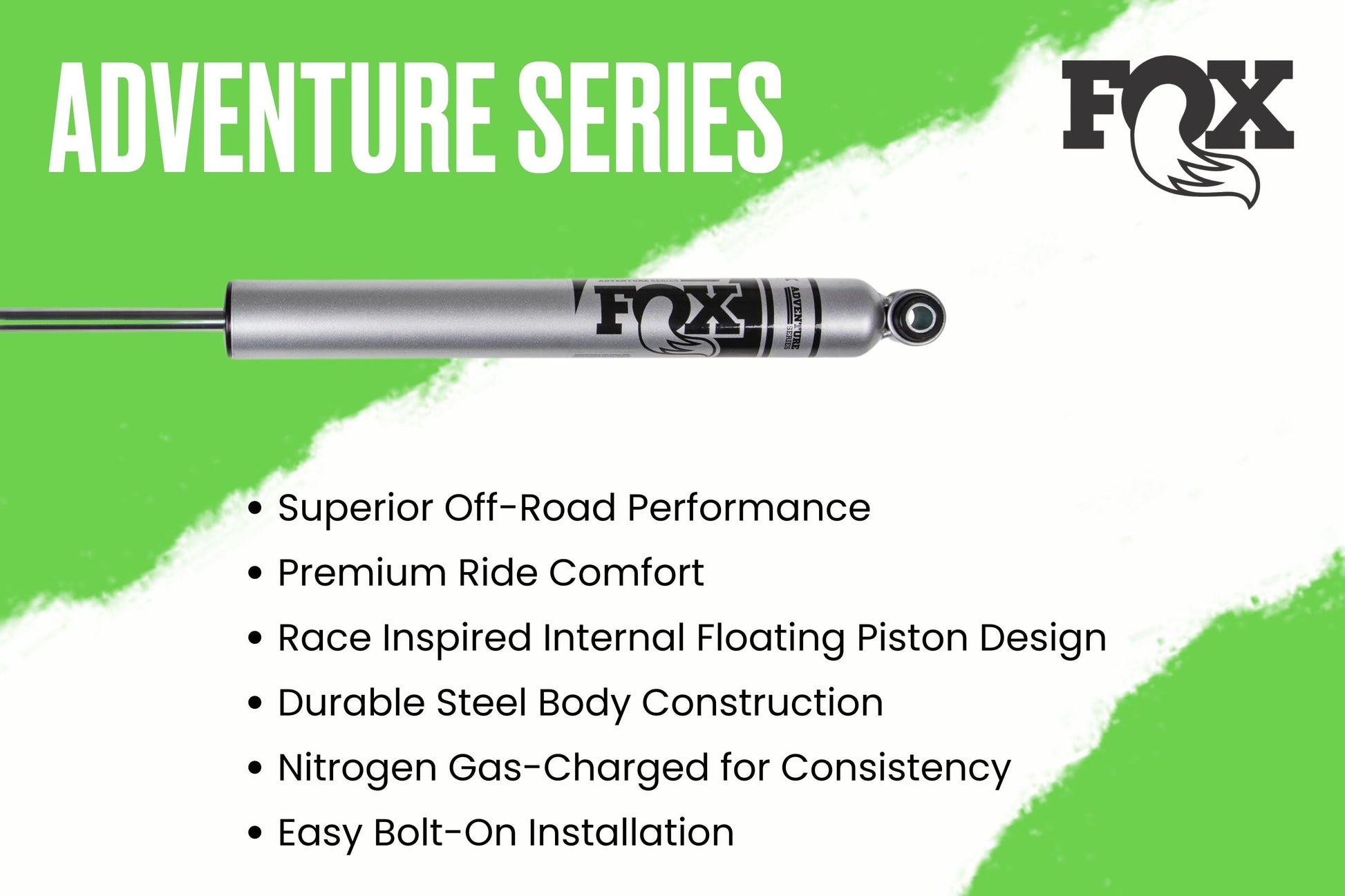

FOX 2.0 Adventure Series

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

5.5 hrs

Difficulty Level :

Moderate

SPECIFICATION

  • Front Lift Method : Coil Spring
  • Front Lift Height : 4.5"
  • Rear Lift Method : Add-A-Leaf & Shackles
  • Rear Lift Height : 4"
  • Shocks Included : Yes
  • Lift Height : 4-5.5"

FITMENT

Year Make Model Submodel Drive Type Fuel Type Position Lift Height
1986 Jeep Comanche ALL 4WD GAS Front and Rear 4.5"
1987 Jeep Comanche ALL 4WD GAS Front and Rear 4.5"
1988 Jeep Comanche Base 4WD ALL Front and Rear 4.5"
1988 Jeep Comanche Chief 4WD ALL Front and Rear 4.5"
1988 Jeep Comanche Laredo 4WD ALL Front and Rear 4.5"
1988 Jeep Comanche Pioneer 4WD ALL Front and Rear 4.5"
1989 Jeep Comanche Base 4WD ALL Front and Rear 4.5"
1989 Jeep Comanche Pioneer 4WD ALL Front and Rear 4.5"
1990 Jeep Comanche ALL 4WD ALL Front and Rear 4.5"
1991 Jeep Comanche ALL 4WD ALL Front and Rear 4.5"
1992 Jeep Comanche ALL 4WD ALL Front and Rear 4.5"
