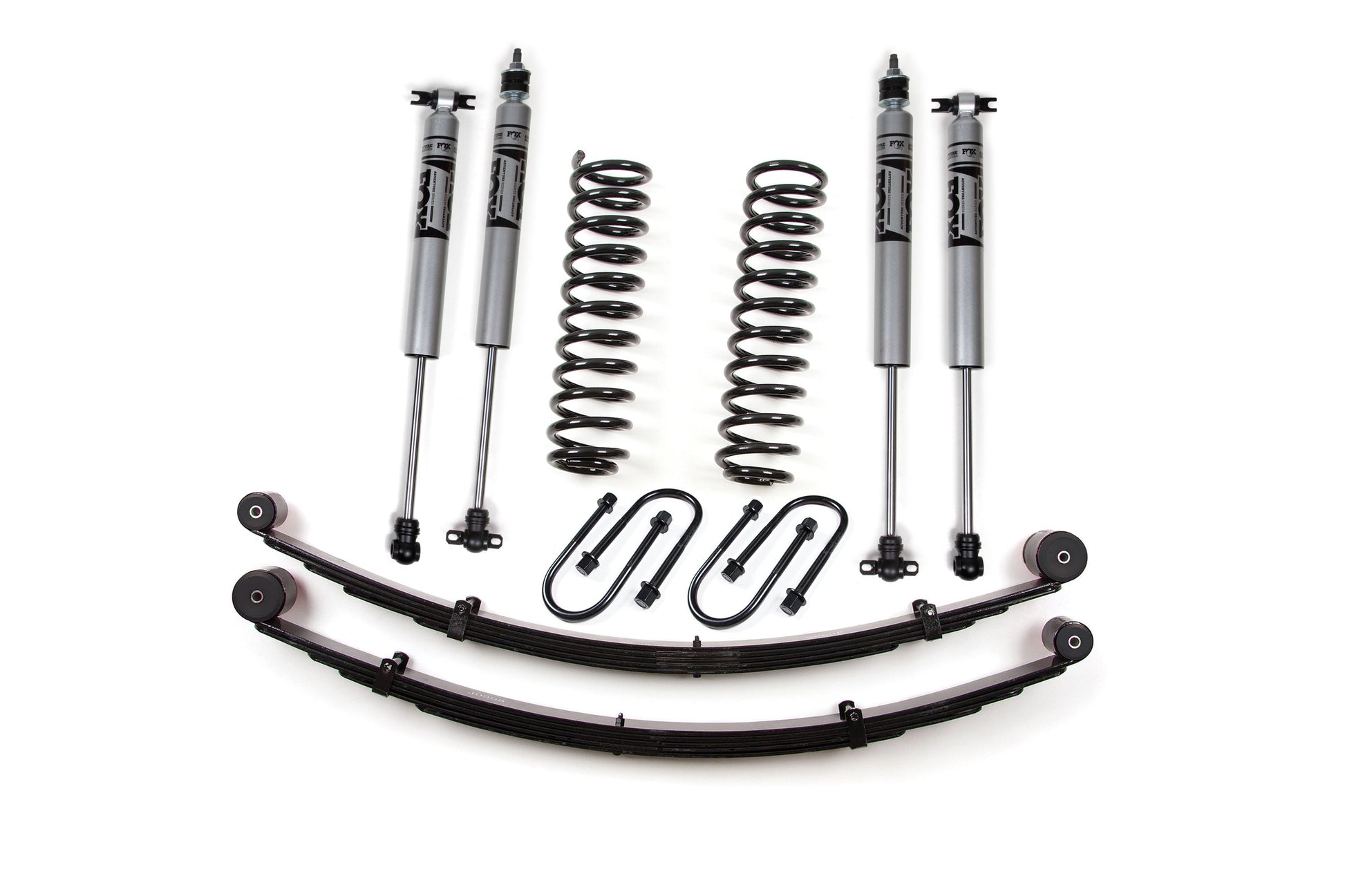

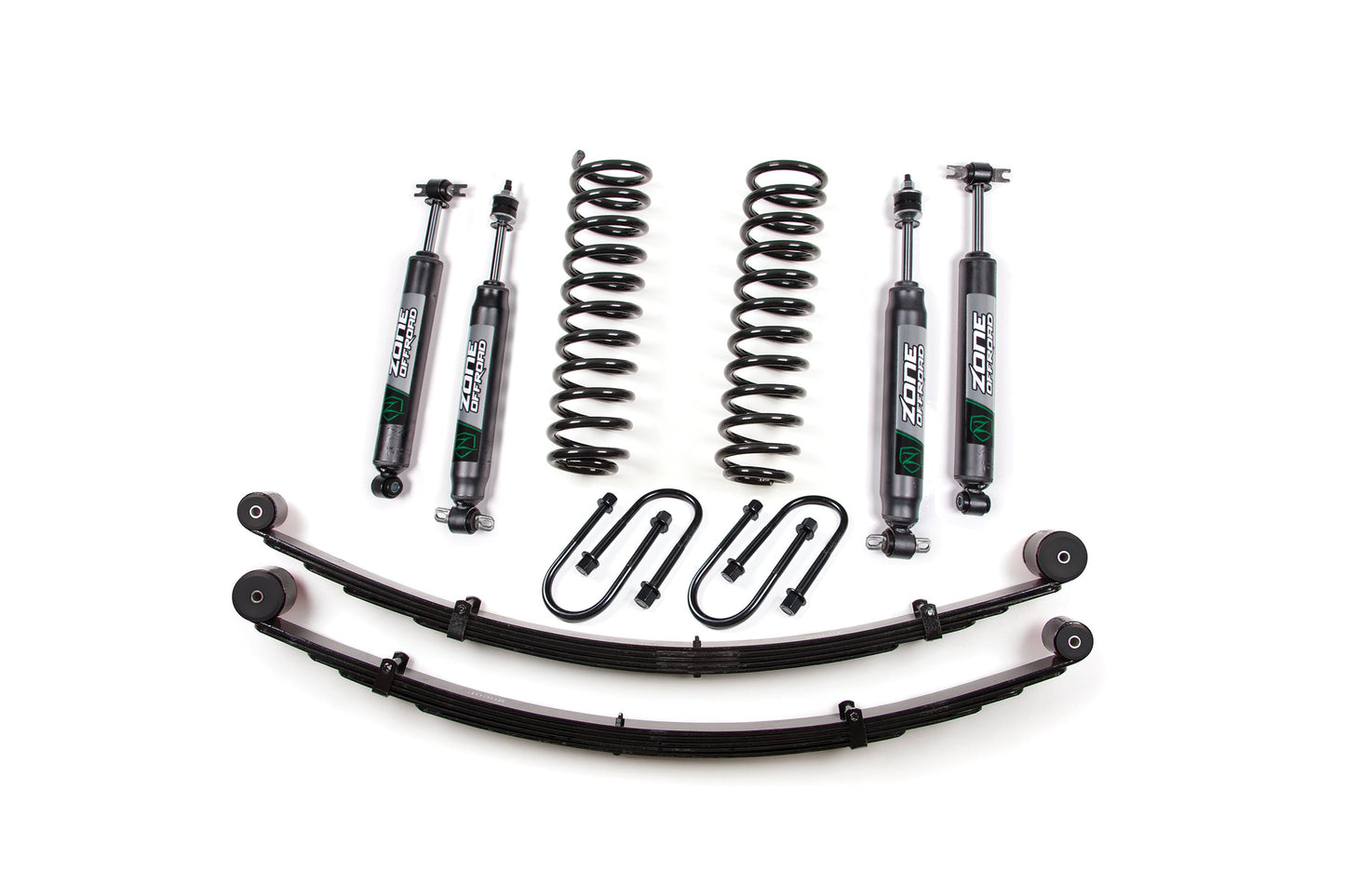

3 Inch Lift Kit w/ Springs Jeep Cherokee XJ 84-01 by Zone Offroad

3 Inch Lift Kit w/ Springs Jeep Cherokee XJ 84-01 by Zone Offroad

$819.65 USD
$819.65 USD
Sale Sold out
Rear Axle Option
Shock Option

OVERVIEW

Let the adventures begin with this 3" Lift Kit for your 4WD 1984 - 2001 Jeep Cherokee (XJ). This kit includes heavy-duty front coil springs and back leaf springs designed to give you the optimal amount of wheel travel so you're ready to go off road.

Features & Benefits

  • Full length replacement coil springs add additional ride height while maintaining ride quality.
  • Heavy-duty replacement rear leaf springs provide lift and great ride quality.
  • High-strength, black e-coated U-bolts.

Recommended Tires & Wheels

(Trimming may be required)

  • 31 x 10.5 with 15 x 8 and 4 in. Backspace
  • 31 x 10.5 with 16 x 8 and 4 in. Backspace

Rear Axle Option

This truck was produced with different rear axles. Be sure to measure the diameter of your rear axle before ordering. The easiest way to accurately measure the diameter of your rear axle is to measure the inner diameter of your rear-axle U-bolts; to do so, use a tape to measure the distance between the inside edges of the threaded ends of your u-bolts.

  • Chrysler 8.25 Rear Axle (3 Inch Diamater)
  • Dana 35 Rear Axle (2.75 Inch Diameter)

Shock Option

Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

FOX 2.0 Adventure Series

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Leaf springs not designed for excess additional cargo weight, lower ride height may result.
  2. Check Rear Axle Diameter: The XJ was manufactured with different rear axles. You'll need to identify yours to complete an order. To tell the difference, measure the inner diameter (I.D.) of your rear U-bolts. The Chrysler 8.25 rear axle uses a 3" I.D. U-bolt and the Dana 35 rear axle requires a 2-3/4" I.D. U-bolt.
  3. Driveline: 1" transfer case drop kit recommended when using stock driveline to maintain the factory driveline angle.

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

5 hrs

Difficulty Level :

Moderate

SPECIFICATION

  • Front Lift Method : Coil Spring
  • Front Lift Height : 3
  • Rear Lift Method : Leaf Spring
  • Rear Lift Height : 3"
  • Shocks Included : Yes

FITMENT

Year Make Model Submodel Drive Type Fuel Type Position Lift Height
1984 Jeep Cherokee ALL ALL ALL N/A
1985 Jeep Cherokee ALL ALL ALL N/A
1986 Jeep Cherokee ALL ALL ALL N/A
1987 Jeep Cherokee ALL ALL ALL N/A
1988 Jeep Cherokee ALL ALL ALL N/A
1989 Jeep Cherokee ALL ALL ALL N/A
1990 Jeep Cherokee ALL ALL ALL N/A
1991 Jeep Cherokee ALL ALL ALL N/A
1992 Jeep Cherokee ALL ALL ALL N/A
1993 Jeep Cherokee ALL ALL ALL N/A
1994 Jeep Cherokee ALL ALL ALL N/A
1995 Jeep Cherokee ALL ALL ALL N/A
1996 Jeep Cherokee ALL ALL ALL N/A
1997 Jeep Cherokee ALL ALL ALL N/A
1998 Jeep Cherokee ALL ALL ALL N/A
1999 Jeep Cherokee ALL ALL ALL N/A
2000 Jeep Cherokee ALL ALL ALL N/A
2001 Jeep Cherokee ALL ALL ALL N/A
