3 Inch Lift Kit Toyota 4Runner 4WD 10-24 by Zone Offroad

3 Inch Lift Kit Toyota 4Runner 4WD 10-24 by Zone Offroad

$489.85 USD
$489.85 USD
Sale Sold out
Rear Shock Option

OVERVIEW

Give your 2010-2024 Toyota 4Runner a little lift and improve the ride with this 3-inch lift kit from Zone Off-Road. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 32" tires!

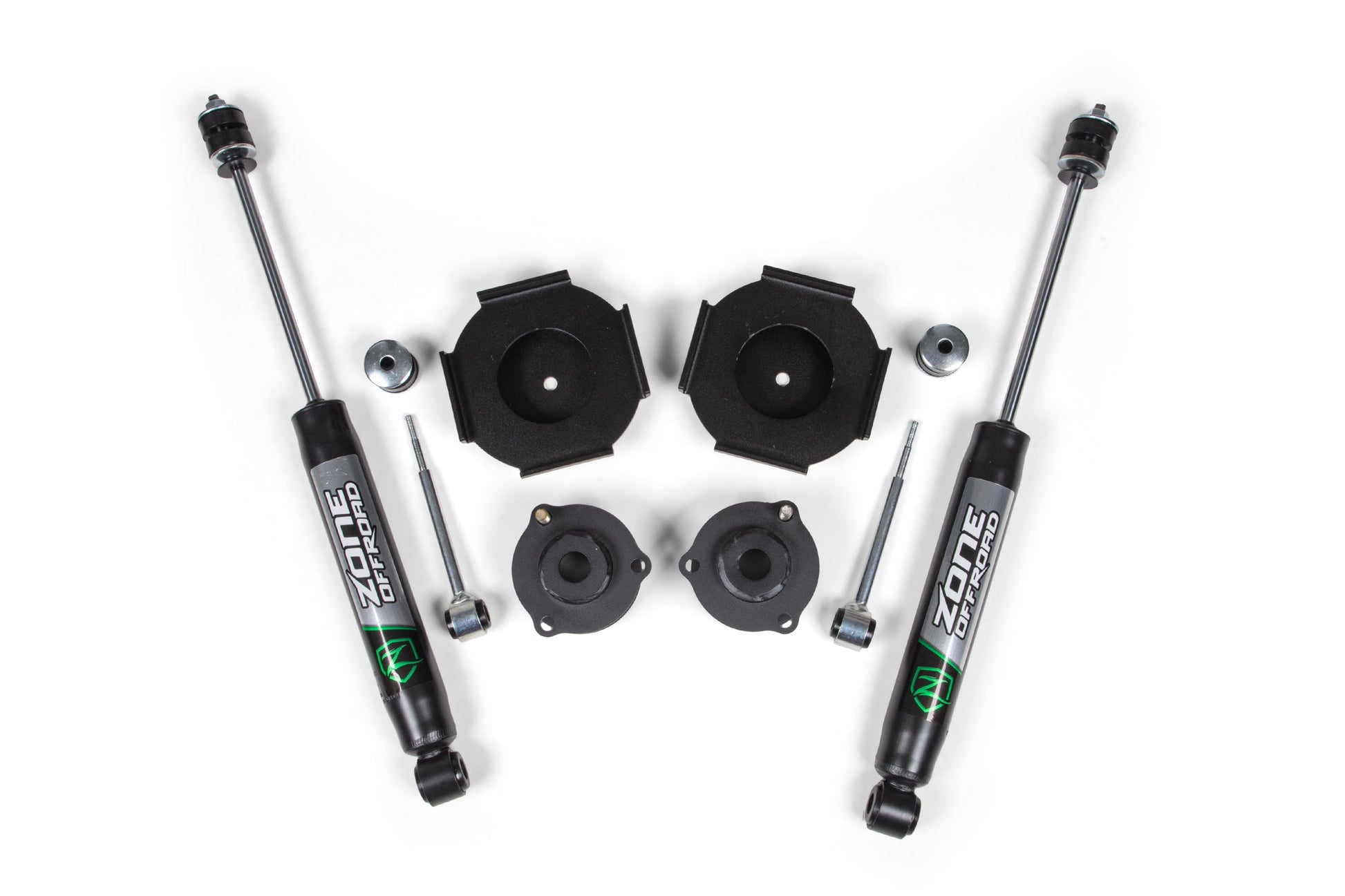

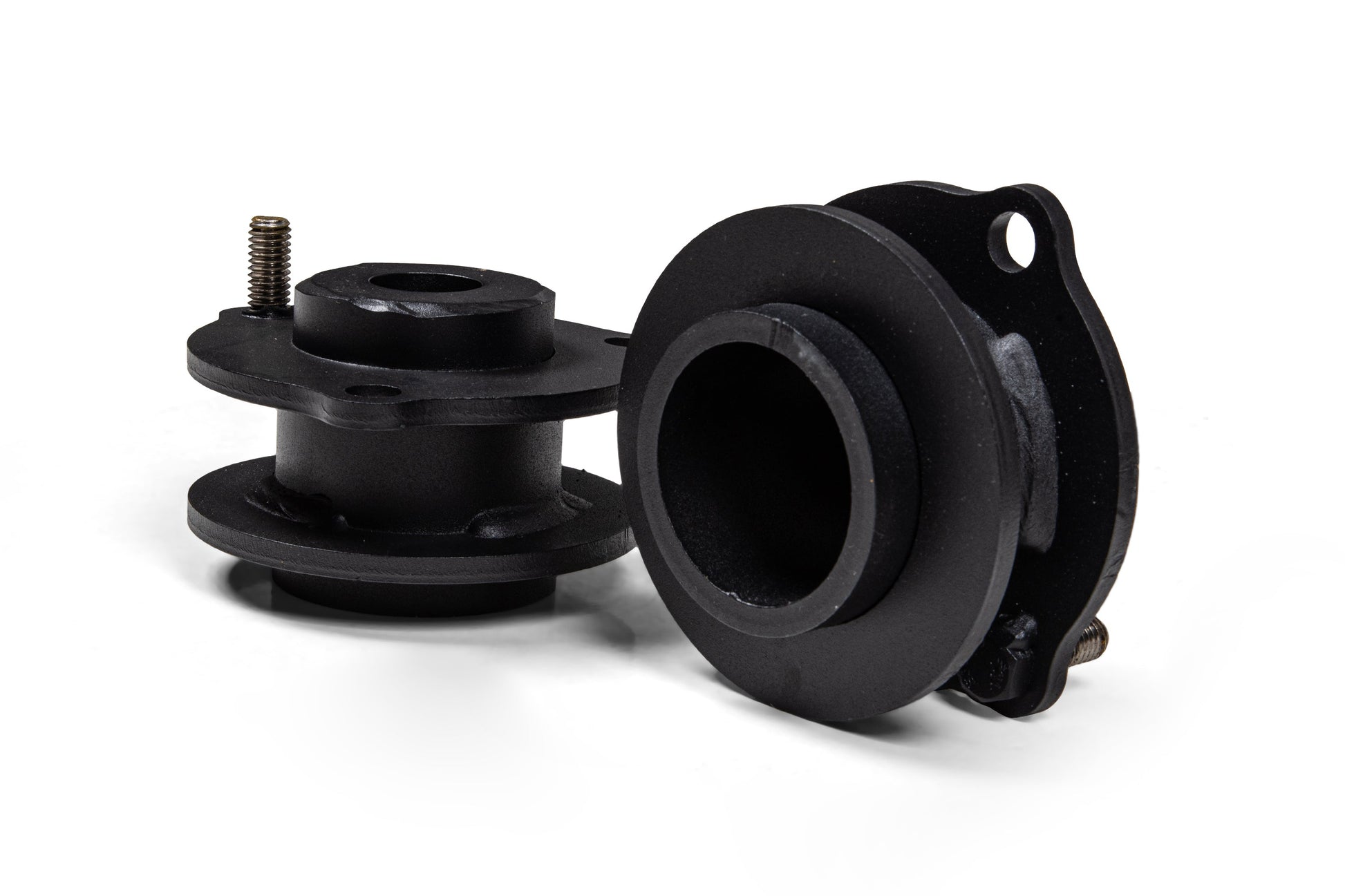

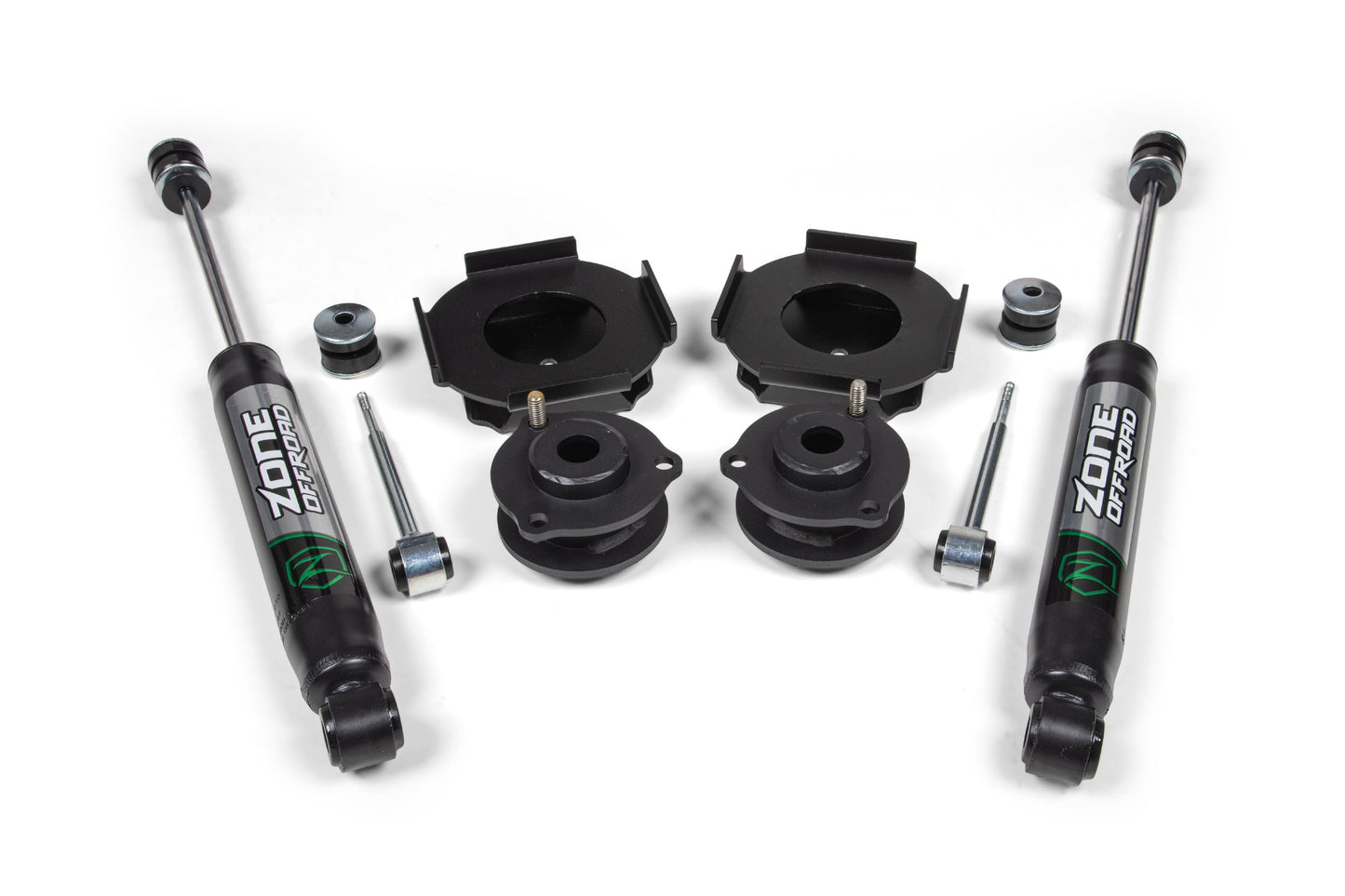

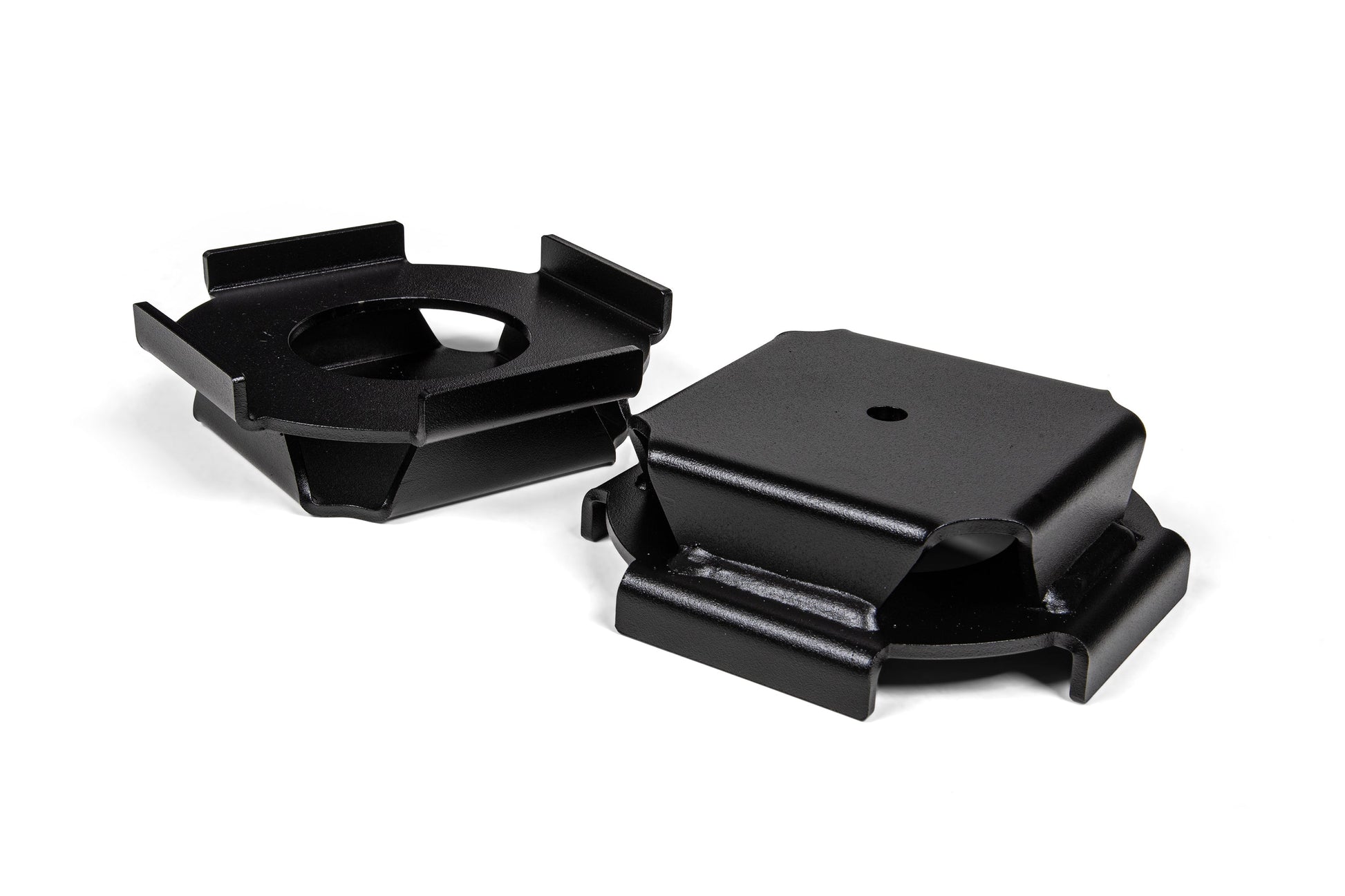

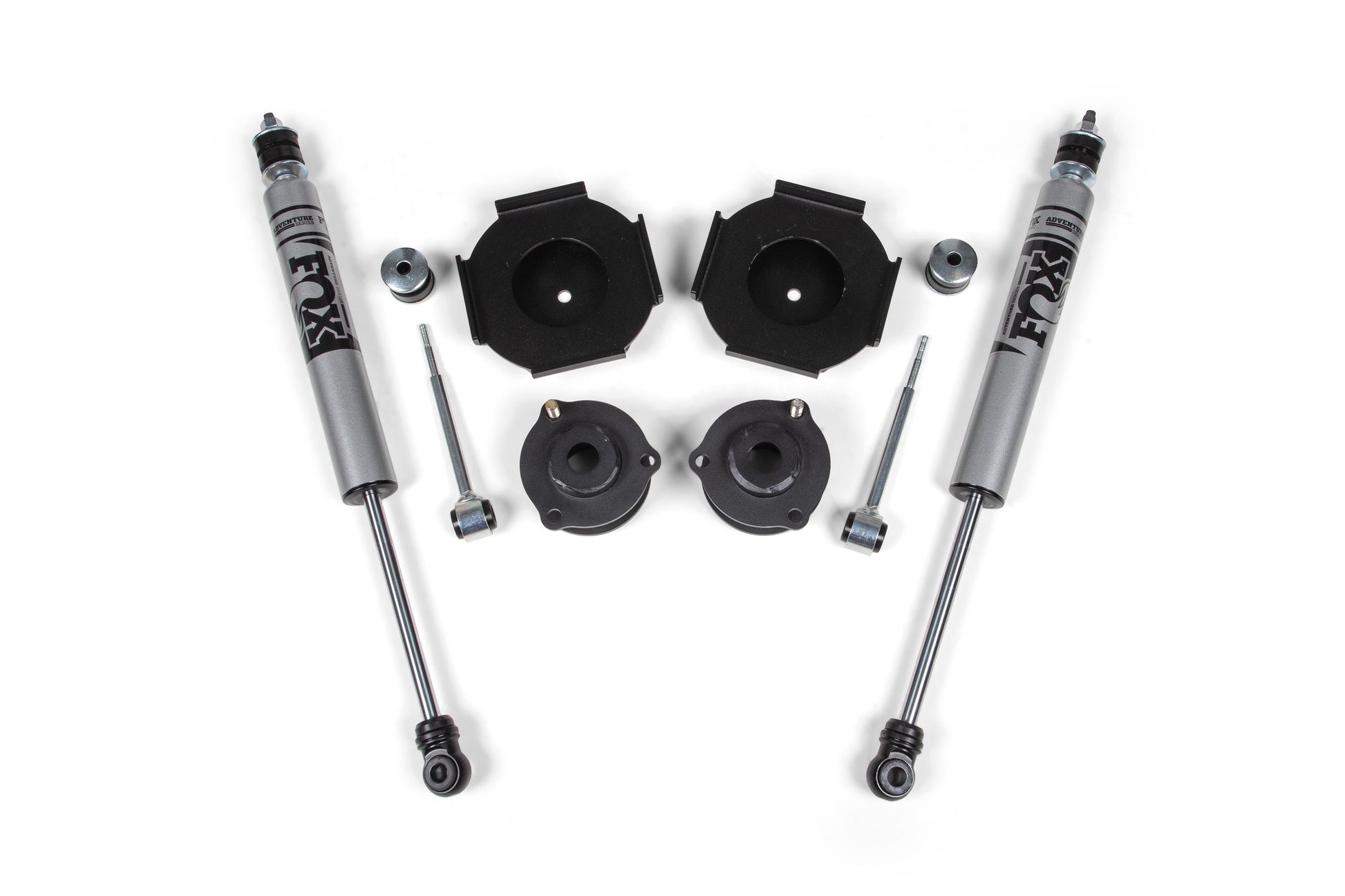

Specially designed for the 4Runner, this 3" lift kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop. Up front the lift kit includes top mounted steel strut spacers. In the rear this kit utilizes top mounted coil spacers and rear sway bar links. With the new stance set, you have a choice between Zone Nitro series shocks, or the ever popular Fox Adventure series units.

Features & Benefits

  • Easy, 100% bolt-on installation.
  • Maintains factory like ride quality.
  • Upgraded shocks with vehicle-specific valving for better control.
  • Other equivalent tire/wheel size options should work - may require minor trimming for some combinations.

Recommended Tires & Wheels

(Trimming may be required)

  • 285 / 70 with 17 x 8 and 5 in. Backspace

IMPORTANT NOTES

  1. Will not work with factory KDSS sway bar system
  2. Will not work on models equipped with the XREAS shock system. If completely removing XREAS system from vehicle, kit can be installed/optioned with front OE replacement struts, front Fox Coilovers, rear Fox Adventure Series shocks, or rear Nitro Series shocks.

INSTALLATION



Installation Guides :

Download Guide 1

Est. Install Time :

3 hrs

Difficulty Level :

Moderate

Tools Needed :

Strut Compressor

SPECIFICATION

  • Front Lift Method : Strut Spacer
  • Front Lift Height : 3"
  • Rear Lift Method : Coil Spacer
  • Rear Lift Height : 1.5"
  • Shocks Included : Yes
  • Lift Height : 2-3.5"

FITMENT

Year Make Model Submodel Drive Type Fuel Type Position Lift Height
2010 Toyota 4Runner ALL 4WD ALL Front and Rear 3"
2011 Toyota 4Runner ALL 4WD ALL Front and Rear 3"
2012 Toyota 4Runner ALL 4WD ALL Front and Rear 3"
2013 Toyota 4Runner ALL 4WD ALL Front and Rear 3"
2014 Toyota 4Runner ALL 4WD ALL Front and Rear 3"
2015 Toyota 4Runner ALL 4WD ALL Front and Rear 3"
2016 Toyota 4Runner ALL 4WD ALL Front and Rear 3"
2017 Toyota 4Runner ALL 4WD ALL Front and Rear 3"
2018 Toyota 4Runner ALL 4WD ALL Front and Rear 3"
2019 Toyota 4Runner ALL 4WD ALL Front and Rear 3"
2020 Toyota 4Runner ALL 4WD ALL Front and Rear 3"
2021 Toyota 4Runner ALL 4WD ALL Front and Rear 3"
2022 Toyota 4Runner ALL 4WD ALL Front and Rear 3"
2023 Toyota 4Runner ALL 4WD ALL Front and Rear 3"
2024 Toyota 4Runner ALL 4WD ALL Front and Rear 3"
