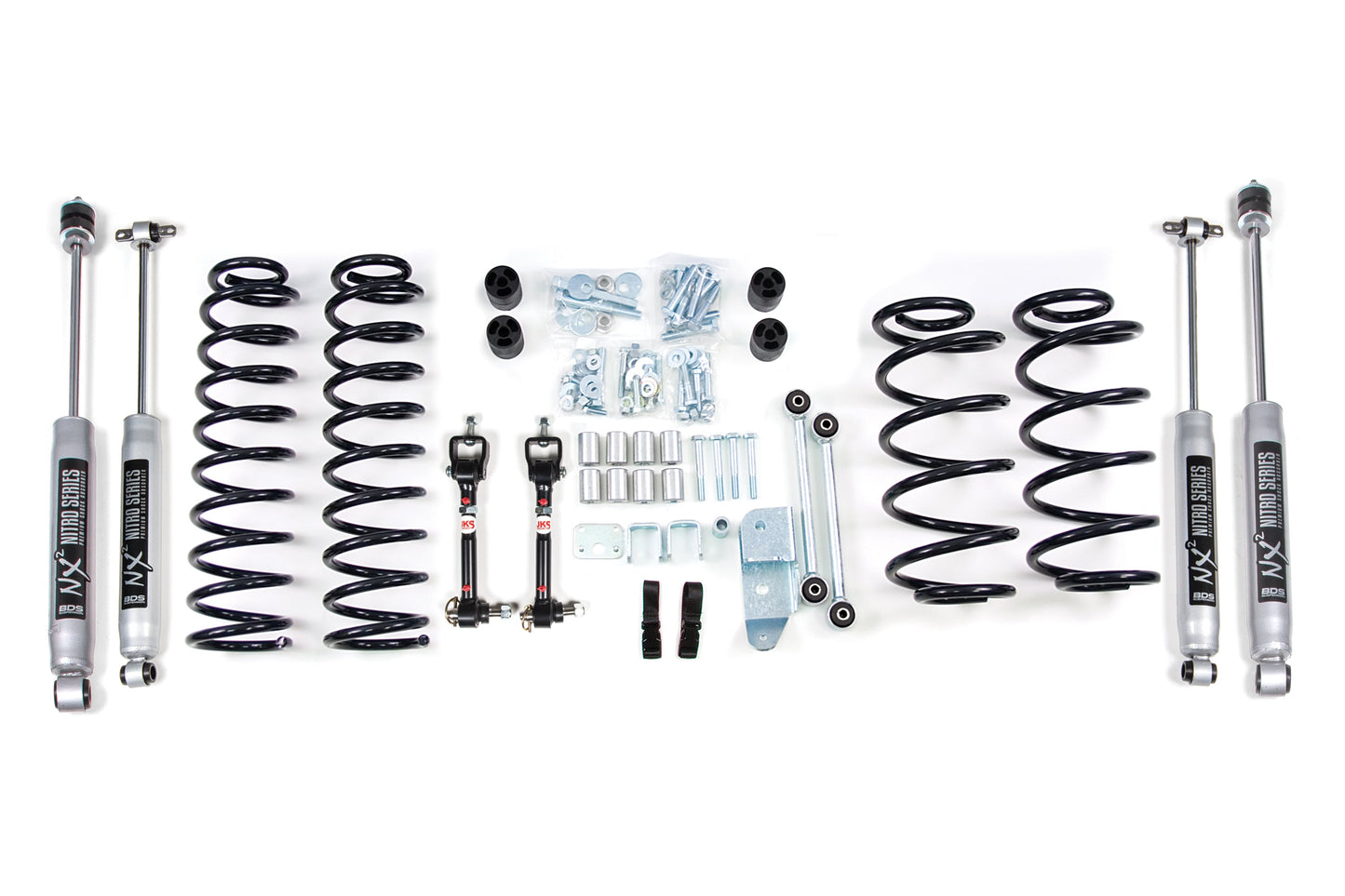

3 Inch Lift Kit Jeep Wrangler TJ 97-02 by BDS Suspension

OVERVIEW

Improve the style and handling of your 1997-2002 Jeep Wrangler TJ with this 3-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

Up front the lift kit includes Glide-Ride coil springs, JKS sway bar link disconnects to improve offroad articulation, bump stop extensions, and a transfer case drop to maintain proper driveline angles. In the rear the kit utilizes matching Glide-Ride coil springs to add height without creating a harsh ride to level out the Jeep and rear track bar bracket. These kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

IMPORTANT NOTES

1. Models with manual transmissions may need shifter opening in the floorboard enlarged.
2. Stabilizer and front lower control arms are highly recommended.

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

6 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Torque Wrench, Drill / Bit Set, Jack / Jack Stands

SPECIFICATION

• Front Lift Method : Coil Spring
• Front Lift Height : 3"
• Rear Lift Method : Coil Spring
• Rear Lift Height : 3"
• Shocks Included : Yes
• Lift Height : 2-3.5"

FITMENT

Year	Make	Model	Submodel	Drive Type	Fuel Type	Position	Lift Height
1997	Jeep	Wrangler	ALL	ALL	ALL
1998	Jeep	Wrangler	ALL	ALL	ALL
1999	Jeep	Wrangler	ALL	ALL	ALL
2000	Jeep	Wrangler	ALL	ALL	ALL
2001	Jeep	Wrangler	ALL	ALL	ALL
2002	Jeep	Wrangler	ALL	ALL	ALL
