3 Inch Lift Kit Jeep Grand Cherokee ZJ 93-98 by BDS Suspension

OVERVIEW

Improve the style and handling of your 1993-1998 Jeep Grand Cherokee ZJ with this 3-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 31" tires.

Up front the lift kit includes Glide-Ride coil springs, extended sway bar links, and front track bar bracket to properly center the axle. In the rear the kit utilizes matching Glide-Ride coil springs to add height without creating a harsh ride to level out the Jeep and rear track bar bracket. These kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Shock Option

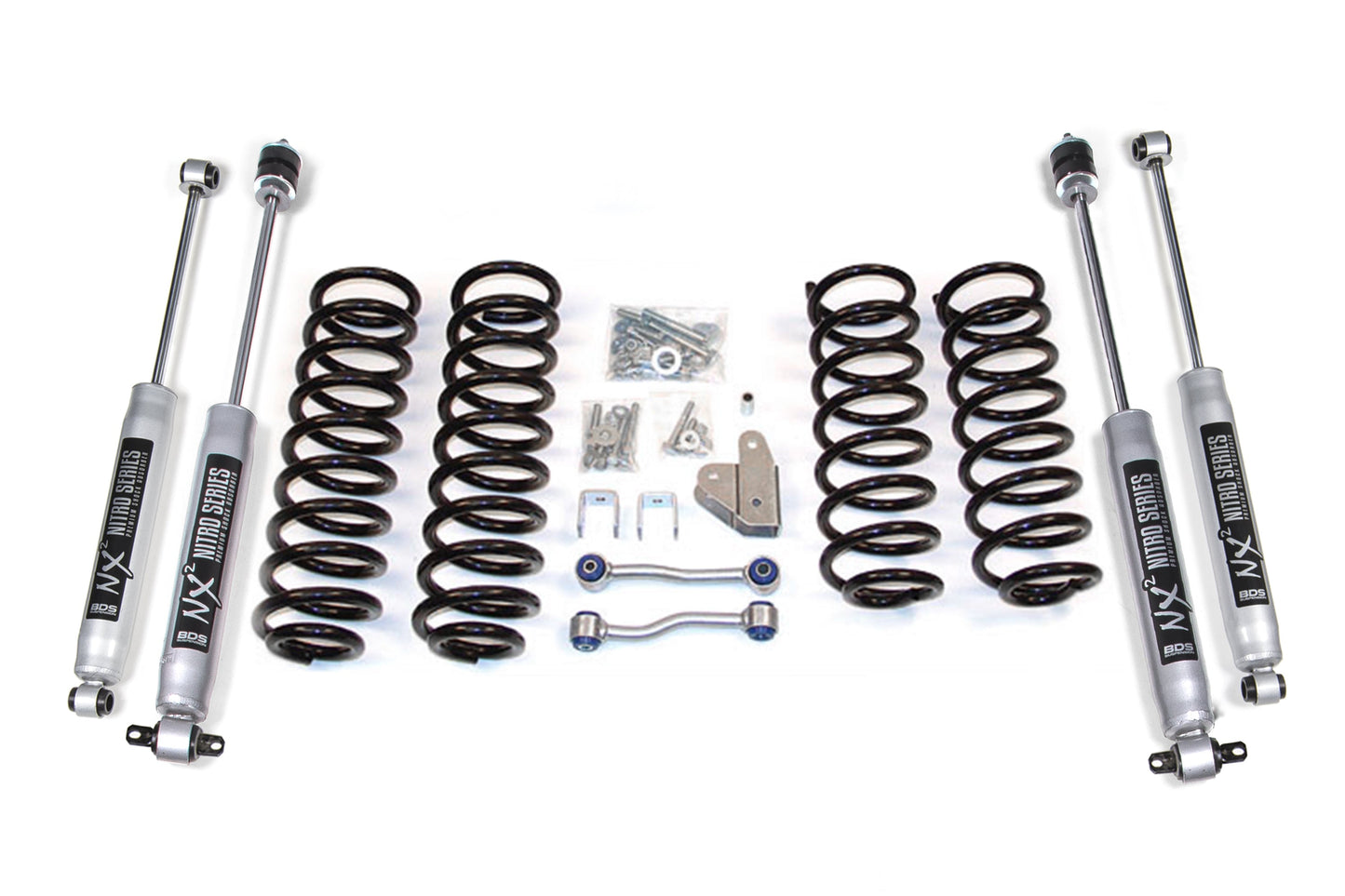

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

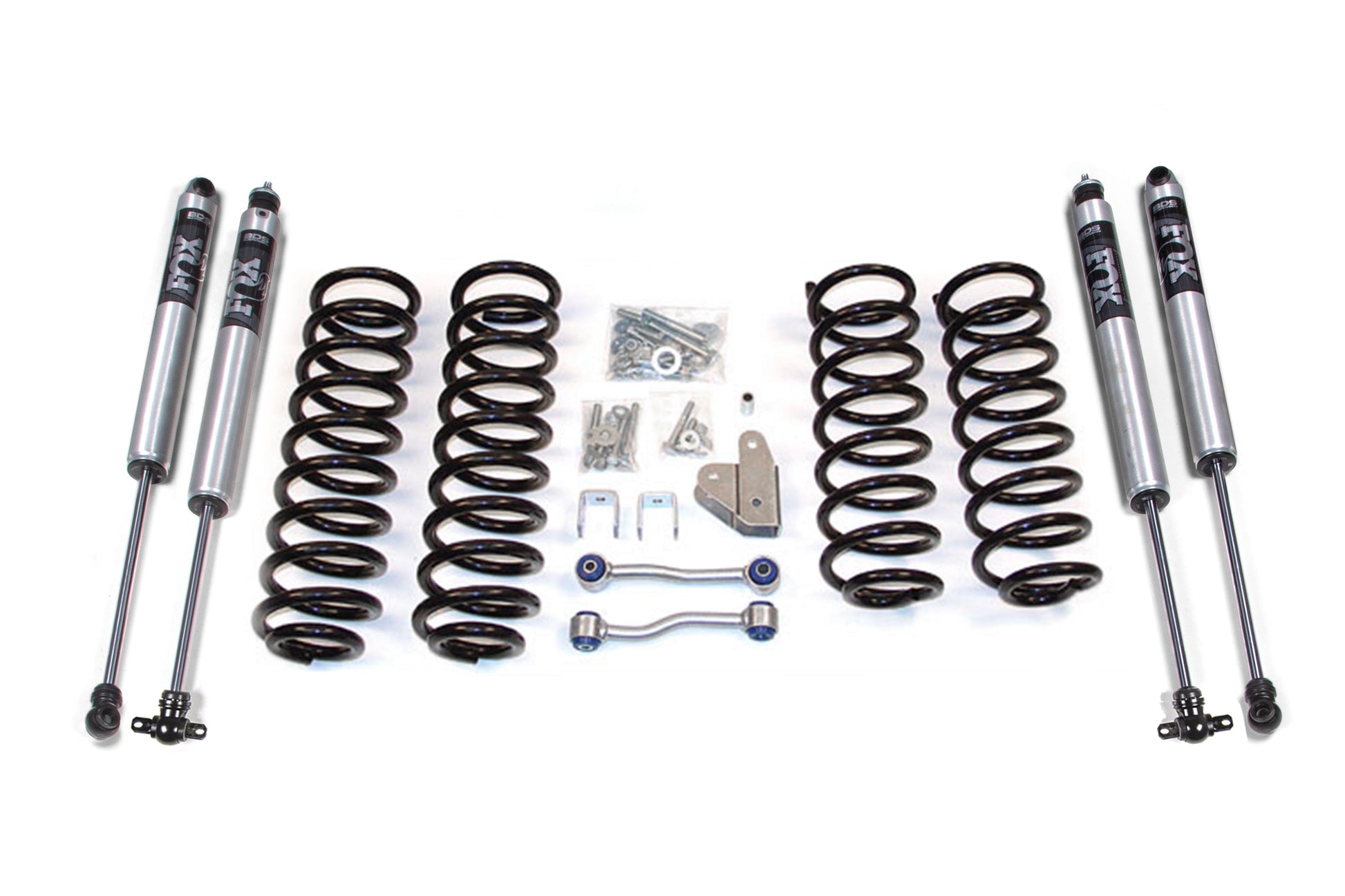

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance

• Long-lasting clear anodized finish

IMPORTANT NOTES

1. Vehicles equipped with V8 may not achieve stated height.
2. Measure your front driveshaft - over 24-1/2" no modifications required, 20" to 24" you may need to change over to a spicer type joint if vibration occurs. It your driveshaft is less than 20", then a Spicer type joint is required and vibration may persist.

INSTALLATION



Installation Guides :

Download Guide 1

Download Guide 2

Download Guide 3

Est. Install Time :

6 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Torque Wrench, Torx Bit / Socket Set, Jack / Jack Stands
