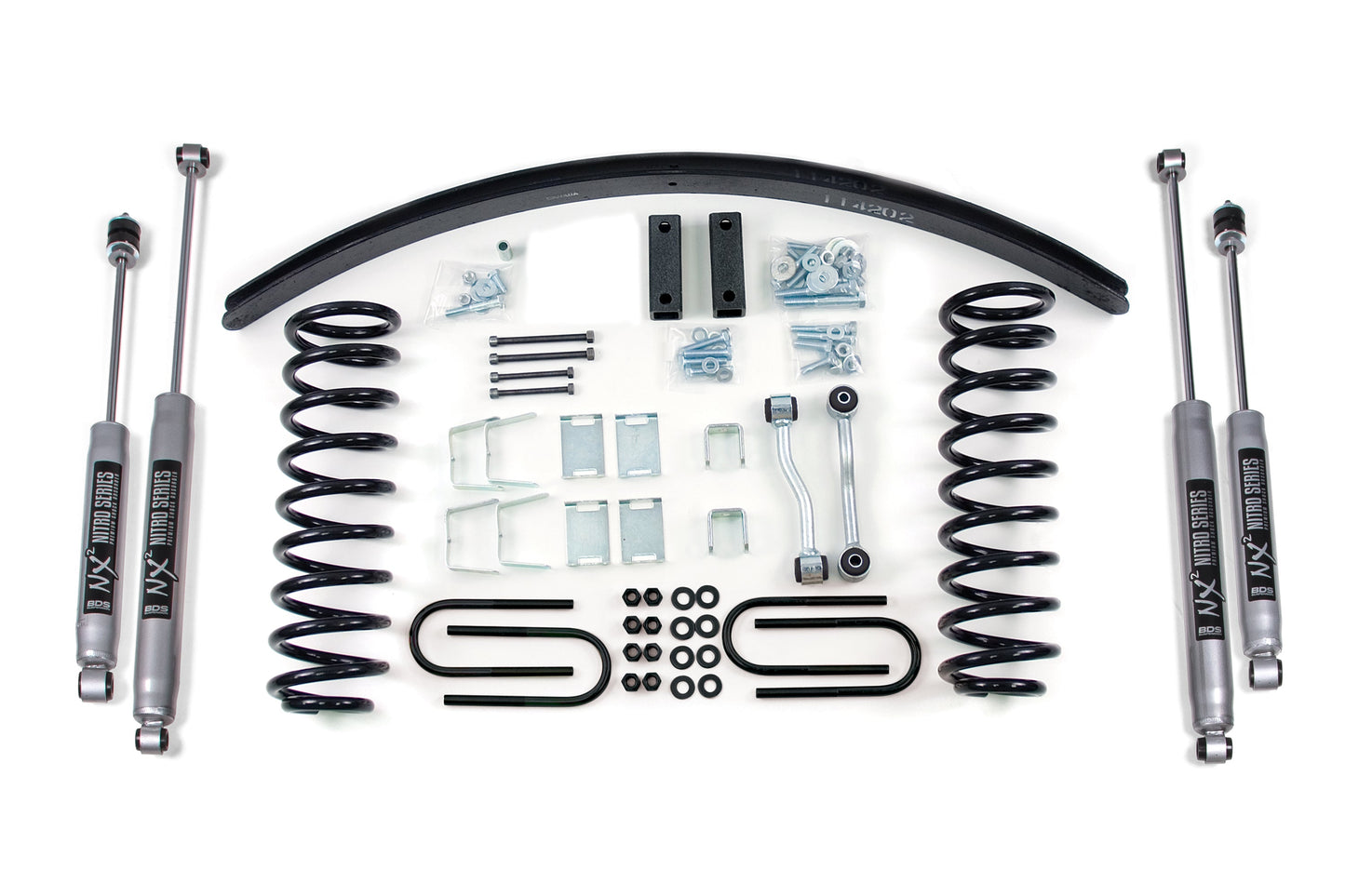

3 Inch Lift Kit Jeep Comanche MJ 86-91 by BDS Suspension

OVERVIEW

Improve the style and handling of your 1986-2001 Jeep Commanche MJ with this 3-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the Commanche MJ, this kit includes everything necessary to set your truck up right with clearance for up to 31" tires.

Up front the lift kit includes Glide-Ride coil springs, extended sway bar links, and a transfer case drop to maintain proper driveline angles. In the rear the kit utilizes a long thin add-a-leaf to add height without creating a harsh ride and a 5/8" lift block to level out the Jeep. These kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Rear Axle Option

The Jeep Cherokee was produced with two different rear axles (Chrysler 8.25 or Dana 35). You will need to measure your rear u-bolts to ensure that you get the correct new u-bolts. Basically, just measure the diameter of the axle or the I.D. of your rear u-bolts. Chrysler axles require 3" wide u-bolts and Dana 35 axles require 2-3/4" wide u-bolts. Some 1987-90 models came with a Dana 44. Measure and call BDS for proper u-bolt fitment.

Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

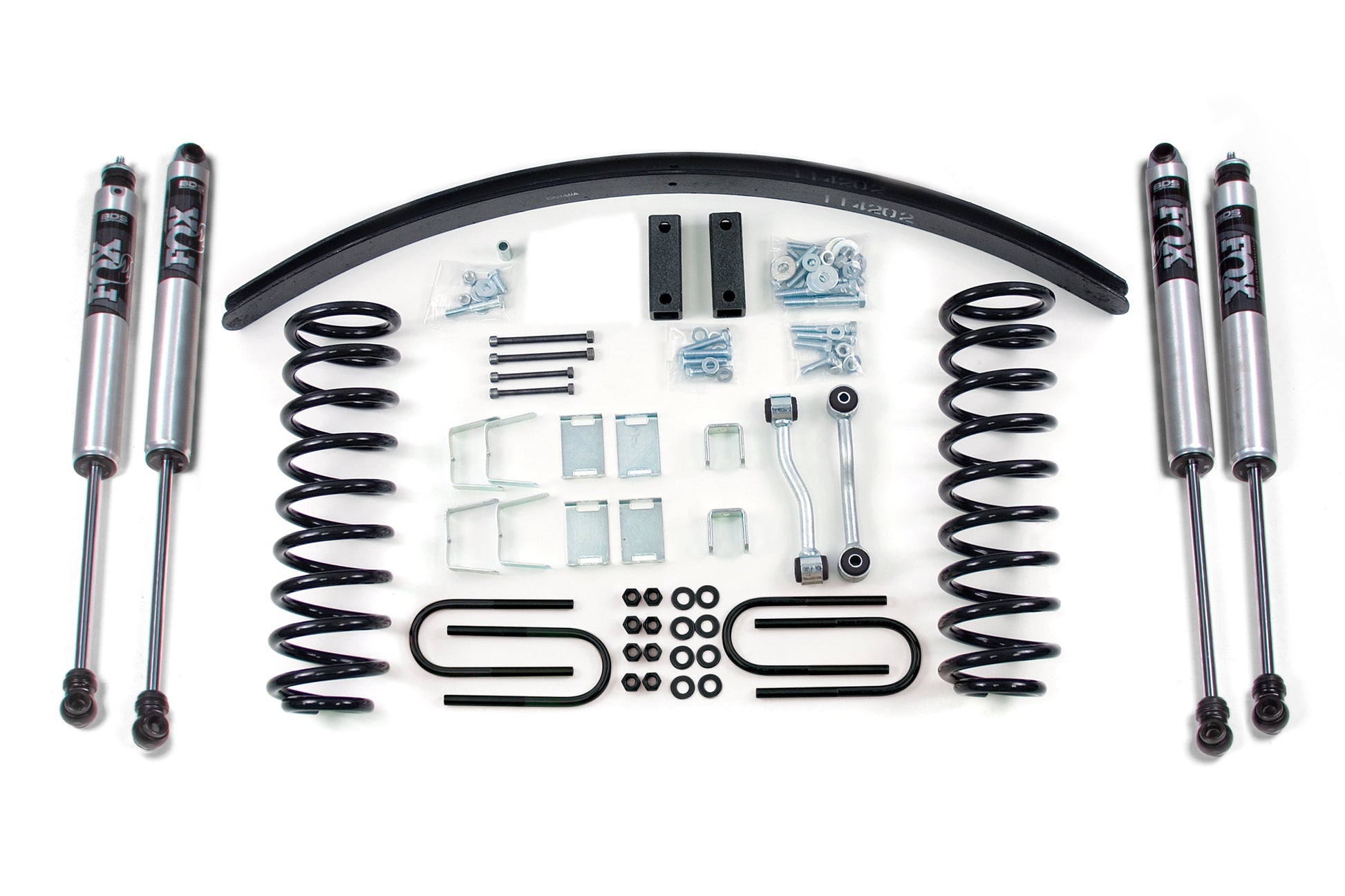

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

IMPORTANT NOTES

1. The Jeep Comanche was produced with two different rear axles (Chrysler 8.25 or Dana 35). You will need to measure your rear u-bolts to ensure that you get the correct new u-bolts. Basically, just measure the diameter of the axle or the I.D. of your rear u-bolts.
2. The transfer case drop kit will not be necessary for 2WD applications.

INSTALLATION

Installation Guides :

Download Guide 1

Download Guide 2

Download Guide 3

Download Guide 4

Est. Install Time :

6 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Torque Wrench, Torx Bit / Socket Set, Drill / Bit Set, Jack / Jack Stands

SPECIFICATION

• Front Lift Method : Coil Spring
• Front Lift Height : 3"
• Rear Lift Method : Add-A-Leaf
• Rear Lift Height : 2.5"
• Shocks Included : Yes
• Lift Height : 2-3.5"

FITMENT

Year	Make	Model	Submodel	Drive Type	Fuel Type	Position	Lift Height
1986	Jeep	Comanche	ALL	ALL	ALL
1987	Jeep	Comanche	ALL	ALL	ALL
1988	Jeep	Comanche	ALL	ALL	ALL
1989	Jeep	Comanche	ALL	ALL	ALL
1990	Jeep	Comanche	ALL	ALL	ALL
1991	Jeep	Comanche	ALL	ALL	ALL
1992	Jeep	Comanche	ALL	ALL	ALL
