3.5 Inch Combo Lift Kit Chevy Colorado GMC Canyon 4WD 08-12 by Zone Offroad

3.5 Inch Combo Lift Kit Chevy Colorado GMC Canyon 4WD 08-12 by Zone Offroad

$576.85 USD
$576.85 USD
Sale Sold out
Rear Shock Option

OVERVIEW

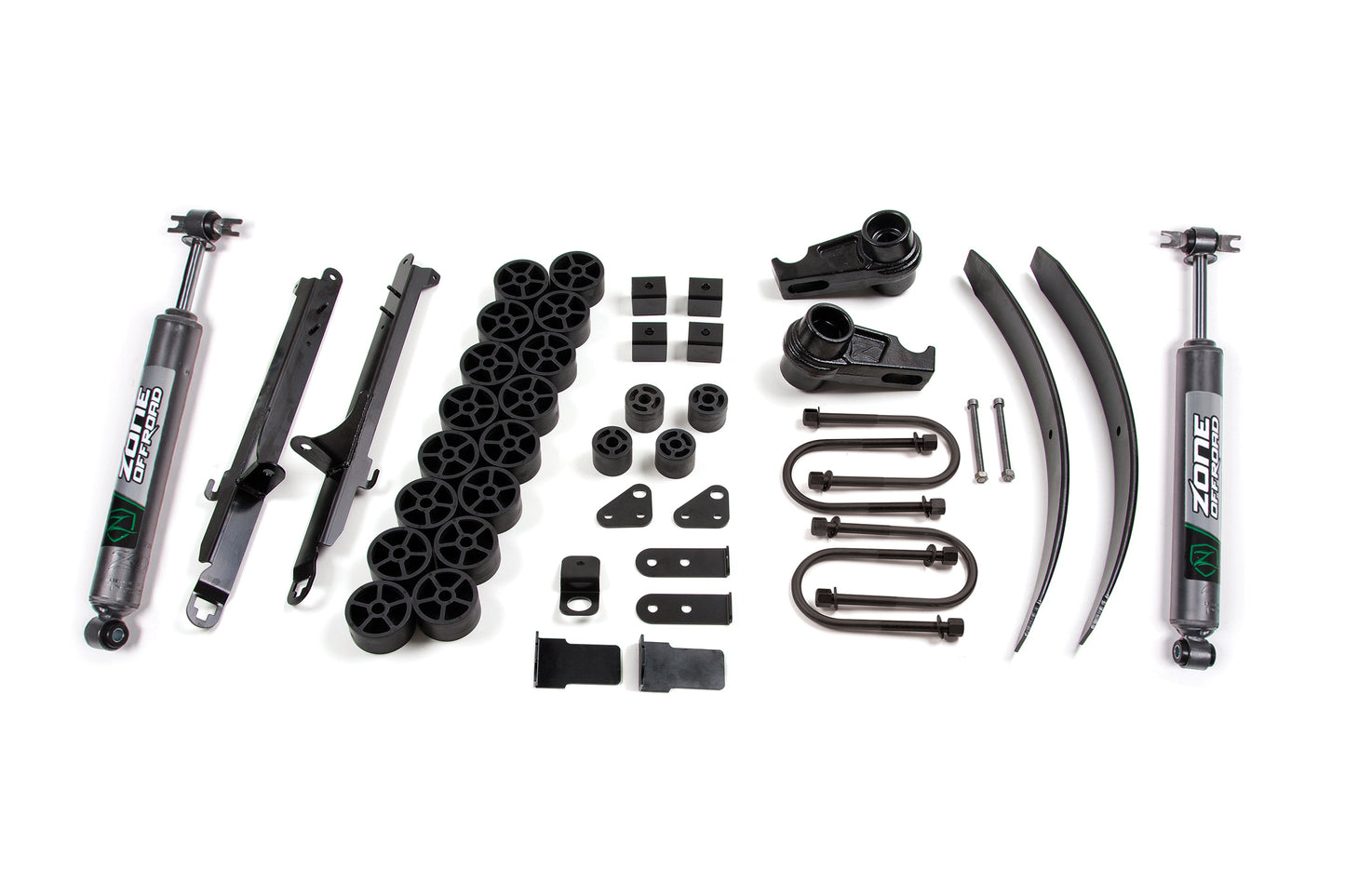

Combo kits offer the best bang for the buck by combining a lift kit with a small body lift to offer clearance for larger tires while maintaining factory ride quality and handling characteristics. This 3.5" combo lift kit for the Colorado/Canyon combines a 2" torsion bar keys and rear add-a-leaf kit with a 1.5" body lift with bumper brackets to allow clearance for 32" tires.

Features & Benefits

  • Castings are resonance frequency tested to ensure they are defect-free and ready to withstand any abuse.
  • Designed to retain functionality of the front tow hooks.
  • Front and rear bumper relocation brackets maintain factory look.
  • Front shock extensions allow use of factory shocks.
  • High-strength, class 10.9 zinc plated hardware.
  • Radiator relocation brackets ensure original functionality.
  • Rear Add-A-Leaf Kit provides additional lift and improves weight capacity.

Recommended Tires & Wheels

(Trimming may be required)

  • 32 x 11.5 with 16 x 8 and Stock in. Backspace
  • 32 x 11.5 with 16 x 8 and 5 in. Backspace
  • 265 x 70 with 17 x 9 and 5 in. Backspace

Shock Option

Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

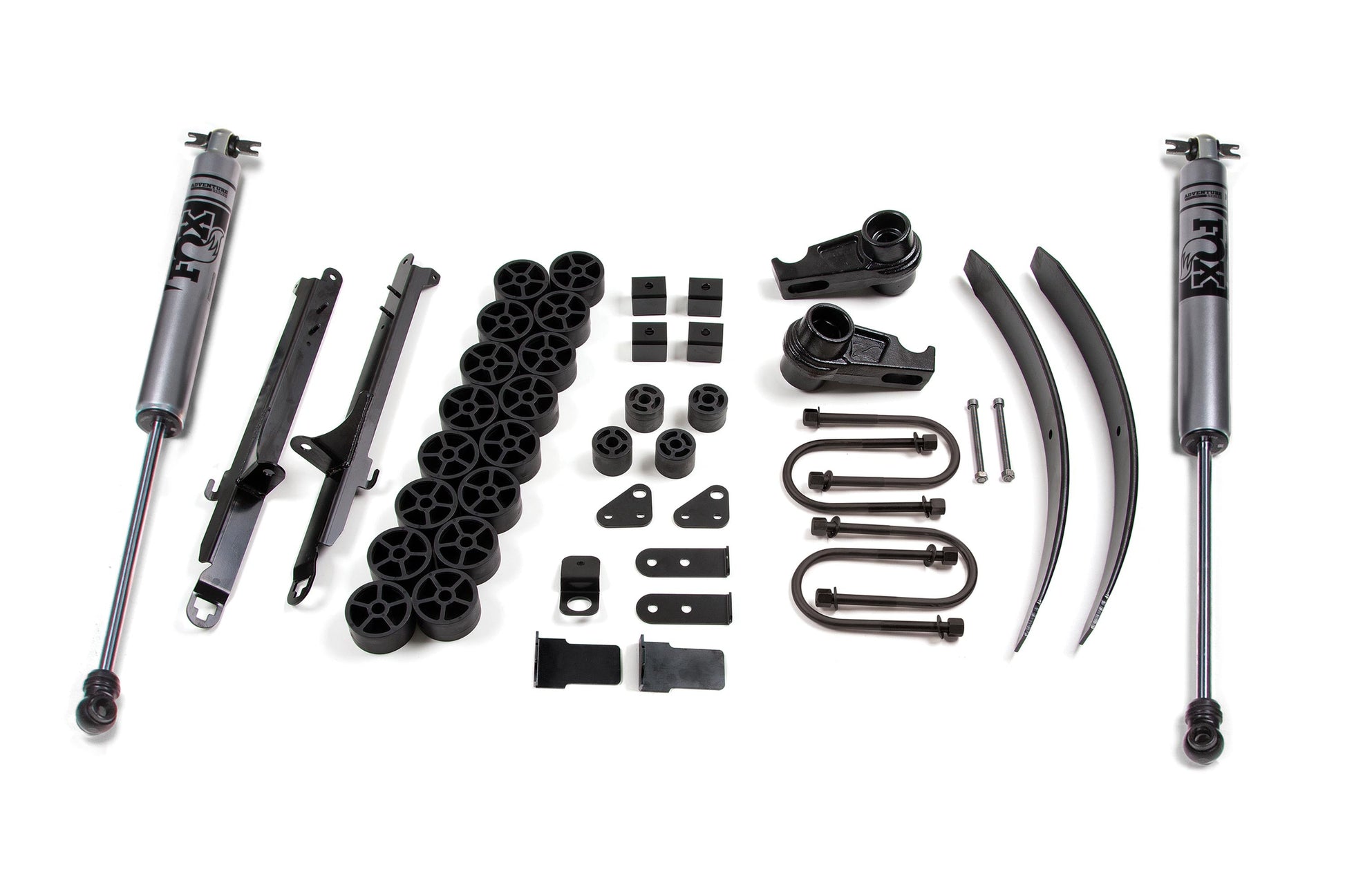

FOX 2.0 Adventure Series

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting silver coated finish

IMPORTANT NOTES

  1. Bumper hitch? Rear bumper brackets are for appearance only and not rated for towing.
  2. Frame mounted tow hitches are recommended for towing purposes.
  3. Radiator & condenser brackets not designed for V8 models.
  4. Trimming of front bumper plastic valance or frame required for front bumper relocation. See installation instructions for more information.

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

6-8 hrs

Difficulty Level :

Moderate

SPECIFICATION

  • Front Lift Method : Torsion Key & Body Lift Block
  • Front Lift Height : 3.5"
  • Rear Lift Method : Add-A-Lift & Body Lift
  • Rear Lift Height : 3"
  • Shocks Included : Yes

FITMENT

Year Make Model Submodel Drive Type Fuel Type Position Lift Height
2008 Chevrolet Colorado ALL 4WD ALL Front and Rear 3.5"
2008 GMC Canyon ALL 4WD ALL Front and Rear 3.5"
2009 Chevrolet Colorado ALL 4WD ALL Front and Rear 3.5"
2009 GMC Canyon ALL 4WD ALL Front and Rear 3.5"
2010 Chevrolet Colorado ALL 4WD ALL Front and Rear 3.5"
2010 GMC Canyon ALL 4WD ALL Front and Rear 3.5"
2011 Chevrolet Colorado ALL 4WD ALL Front and Rear 3.5"
2011 GMC Canyon ALL 4WD ALL Front and Rear 3.5"
2012 Chevrolet Colorado ALL 4WD ALL Front and Rear 3.5"
2012 GMC Canyon ALL 4WD ALL Front and Rear 3.5"
