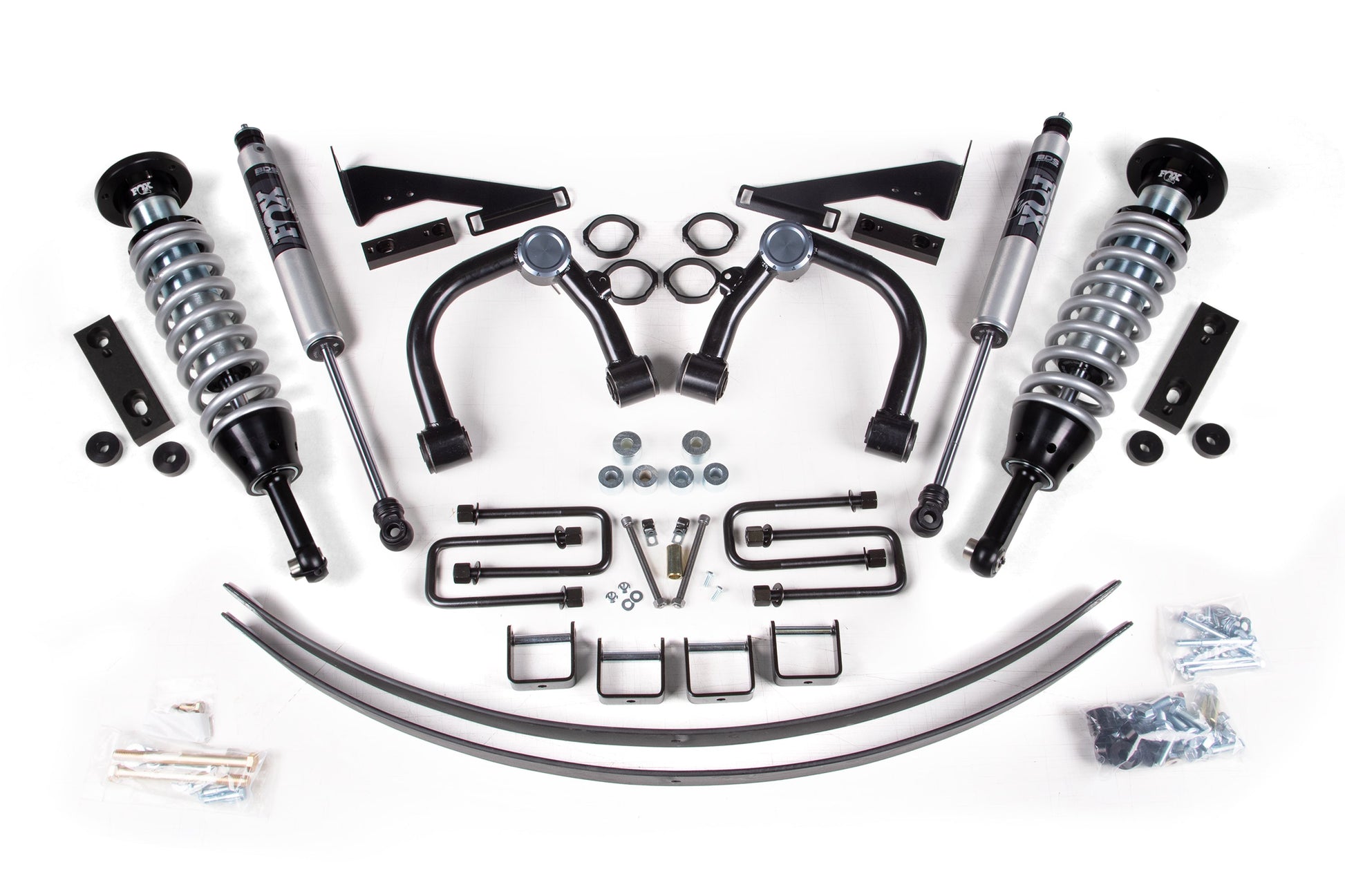

2 Inch Lift Kit FOX 2.5 IFP Coil-Over Toyota Tacoma 4WD 16-23 by BDS Suspension

OVERVIEW

Take your 2016-2023 Toyota Tacoma truck to the next level by installing this 2-inch lift kit featuring FOX 2.5 IFP coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

Up front the lift kit includes FOX 2.5 Factory Series IFP non reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. Additionally, 1" front differential spacers and longer hardware is supplied to reposition the front differential to keep CV axles within the correct operating angles.

In the rear, BDS supplies a set of add-a-leafs to provide 1" of lift to level out the truck and utilizes a complementary set of FOX 2.0 Performance shocks for an improved ride.

FOX Coil-Over Shocks

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Features & Benefits

• FOX 2.5 Factory series coil-overs offer improved damper performance over stock
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series IFP rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100% Bolt on installation

Recommended Tires & Wheels

(Trimming may be required)

• 265 / 75 with 16 x 8 and 4.5 in. Backspace

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

4 hrs

Difficulty Level :

Moderately Easy

Tools Needed :

35mm Axle Nut Socket, Cut-off Tool, Drill / Bit Set

SPECIFICATION

• Front Lift Method : Coil-Over
• Front Lift Height : 2"
• Rear Lift Method : Add-A-Leaf
• Rear Lift Height : 2"
• Shocks Included : Yes
• Lift Height : 2-3.5"

FITMENT

Year	Make	Model	Submodel	Drive Type	Fuel Type
2016	Toyota	Tacoma	ALL	4WD	ALL
2017	Toyota	Tacoma	ALL	4WD	ALL
2018	Toyota	Tacoma	ALL	4WD	ALL
2019	Toyota	Tacoma	ALL	4WD	ALL
2020	Toyota	Tacoma	ALL	4WD	ALL
2021	Toyota	Tacoma	Limited	4WD	ALL
2021	Toyota	Tacoma	SR	4WD	ALL
2021	Toyota	Tacoma	SR5	4WD	ALL
2021	Toyota	Tacoma	TRD Off-Road	4WD	ALL
2021	Toyota	Tacoma	TRD Sport	4WD	ALL
2022	Toyota	Tacoma	Limited	4WD	ALL
2022	Toyota	Tacoma	SR	4WD	ALL
2022	Toyota	Tacoma	SR5	4WD	ALL
2022	Toyota	Tacoma	TRD Off-Road	4WD	ALL
2022	Toyota	Tacoma	TRD Sport	4WD	ALL
2023	Toyota	Tacoma	Limited	4WD	ALL
2023	Toyota	Tacoma	SR	4WD	ALL
2023	Toyota	Tacoma	SR5	4WD	ALL
2023	Toyota	Tacoma	Trail Special Edition	ALL	ALL
2023	Toyota	Tacoma	TRD Off-Road	4WD	ALL
2023	Toyota	Tacoma	TRD Sport	4WD	ALL
