BDS Suspension

2 Inch Leveling Kit FOX 2.5 Coilover Chevy Silverado GMC Sierra 1500 4WD 19-26 by BDS Suspension

2 Inch Leveling Kit FOX 2.5 Coilover Chevy Silverado GMC Sierra 1500 4WD 19-26 by BDS Suspension

$3,586.80 USD
$3,586.80 USD
Sale Sold out
Rear Shock Option

OVERVIEW

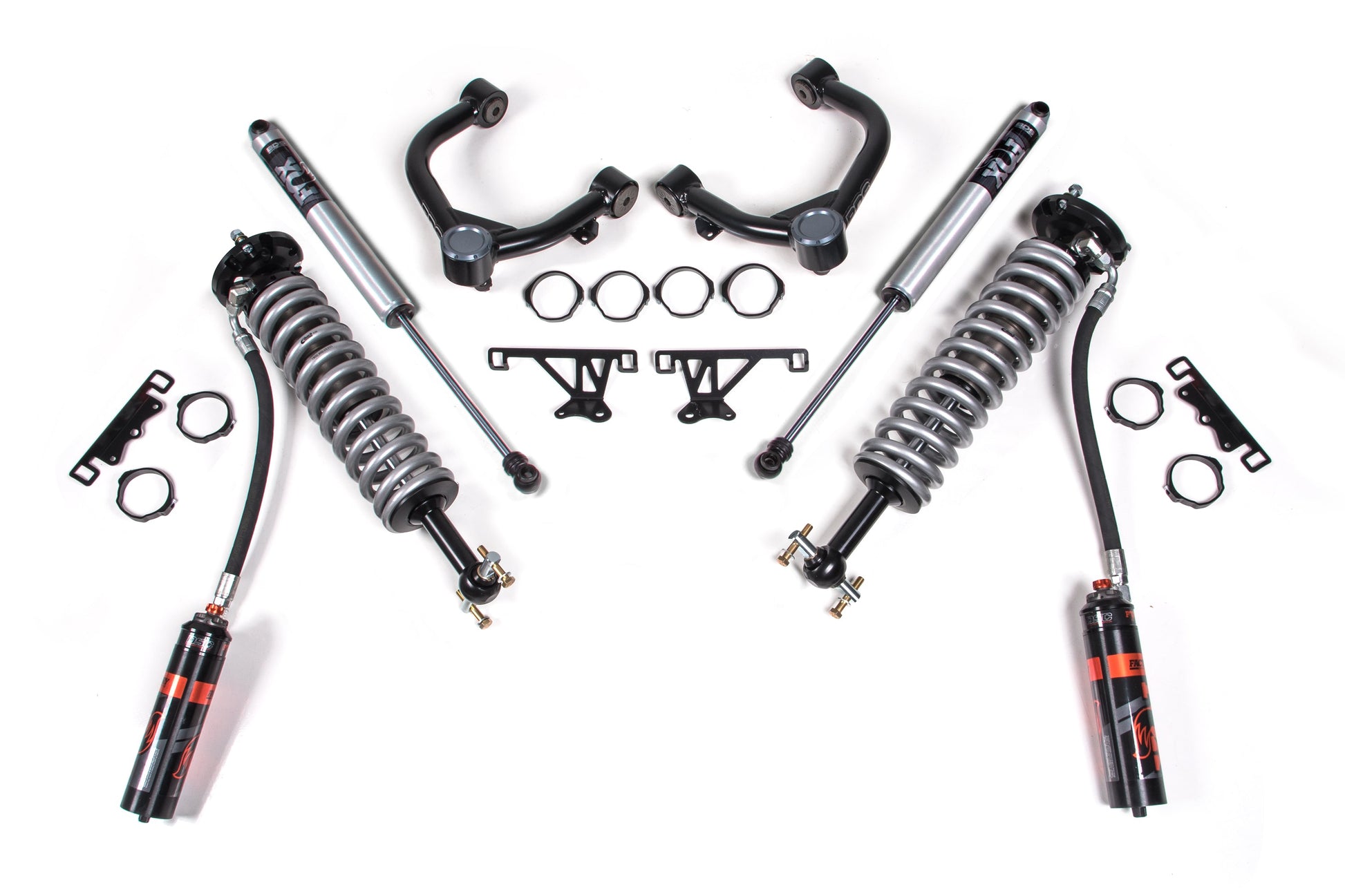

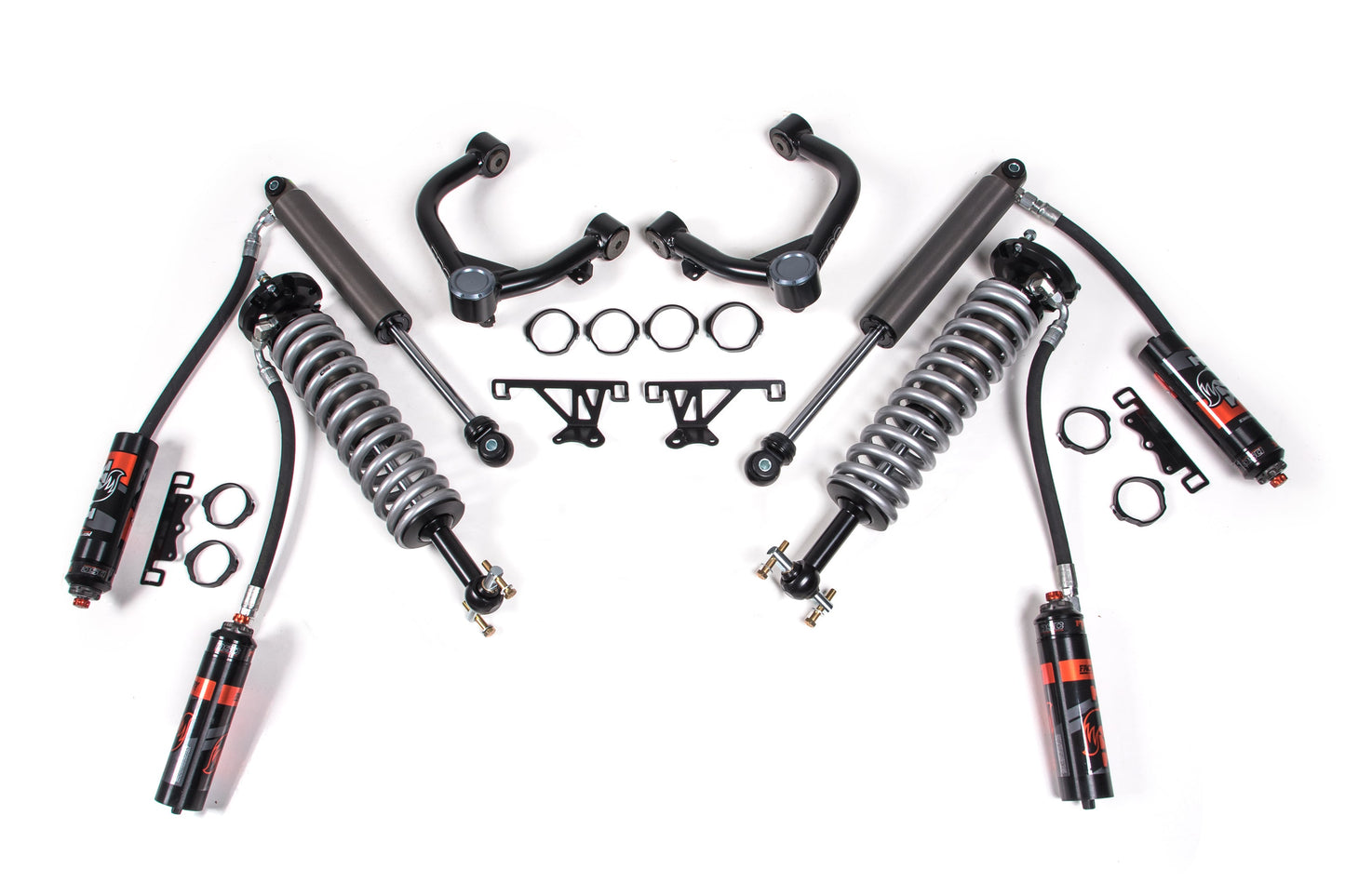

Take your Chevy Silverado and GMC Sierra 1500 truck to the next level and improve the ride with this 2-inch lift kit featuring FOX 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

Up front the lift kit includes FOX 2.5 Factory Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.

DSC Adjustment

FOX 2.5 coil-overs are available with optional DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Features & Benefits

  • FOX 2.5 Factory series coil-overs offer improved damper performance over stock
  • Performance UCAs increase strength and allow for more suspension travel
  • FOX 2.0 performance series IFP rear shocks included
  • Factory Protection Plus drivetrain warranty included
  • Easy, 100% Bolt on installation

Recommended Tires & Wheels

(Trimming may be required)

  • 295 / 70 with 17 x 9 and 5.5 in. Backspace
  • 295 / 65 with 18 x 9 and 5.5 in. Backspace
  • 295 / 60 with 20 x 9 and 5.5 in. Backspace

Rear Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

IMPORTANT NOTES

  • Requires a maximum of 5.5" BS Wheel for tire clearance to the upper ball joint when used on 2-3.5" kits
  • Can be used on Trail Boss / AT4 models, but will net 0" lift
  • All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition
  • Will NOT fit models with a single leaf spring (monoleaf) rear suspension.
  • Will not fit models equipped with ARC

INSTALLATION

Installation Guides :

Download Guide 1

Download Guide 2

Est. Install Time :

3-4 hrs

Difficulty Level :

Moderate

Tools Needed :

Cut Off Wheel or Equiv., Ball Joint Separation Tool, Welding Equipment

SPECIFICATION

  • Front Lift Method : Coil-Over
  • Front Lift Height : 2"
  • Rear Lift Method : Stock
  • Rear Lift Height : 0"
  • Shocks Included : Yes
  • Lift Height : 2-3.5"

FITMENT

Year Make Model Submodel Drive Type Fuel Type Position Lift Height
2019 Chevrolet Silverado 1500 Custom 4WD ALL Front 2"
2019 Chevrolet Silverado 1500 Custom Trail Boss ALL ALL Front 0"
2019 Chevrolet Silverado 1500 LT 4WD ALL Front 2"
2019 Chevrolet Silverado 1500 LT Trail Boss ALL ALL Front 0"
2019 Chevrolet Silverado 1500 LTZ 4WD ALL Front 2"
2019 Chevrolet Silverado 1500 RST 4WD ALL Front 2"
2019 Chevrolet Silverado 1500 SSV 4WD ALL
2019 Chevrolet Silverado 1500 WT 4WD ALL Front 2"
2019 Chevrolet Silverado 1500 WT Cab Regular 4WD ALL
2019 Chevrolet Silverado 1500 WT Doble Cabina 4WD ALL
2019 GMC Sierra 1500 AT4 ALL ALL Front 0"
2019 GMC Sierra 1500 Base 4WD ALL
2019 GMC Sierra 1500 Elevation 4WD ALL Front 2"
2019 GMC Sierra 1500 SLE 4WD ALL Front 2"
2019 GMC Sierra 1500 SLT 4WD ALL Front 2"
2020 Chevrolet Silverado 1500 Custom 4WD ALL Front 2"
2020 Chevrolet Silverado 1500 Custom Trail Boss ALL ALL Front 0"
2020 Chevrolet Silverado 1500 LT 4WD ALL Front 2"
2020 Chevrolet Silverado 1500 LT Trail Boss ALL ALL Front 0"
2020 Chevrolet Silverado 1500 LTZ 4WD ALL Front 2"
2020 Chevrolet Silverado 1500 RST 4WD ALL Front 2"
2020 Chevrolet Silverado 1500 SSV 4WD ALL
2020 Chevrolet Silverado 1500 WT 4WD ALL Front 2"
2020 Chevrolet Silverado 1500 WT Cab Regular 4WD ALL
2020 Chevrolet Silverado 1500 WT Doble Cabina 4WD ALL
2020 GMC Sierra 1500 AT4 ALL ALL Front 0"
2020 GMC Sierra 1500 Base 4WD ALL
2020 GMC Sierra 1500 Elevation 4WD ALL Front 2"
2020 GMC Sierra 1500 SLE 4WD ALL Front 2"
2020 GMC Sierra 1500 SLT 4WD ALL Front 2"
2021 Chevrolet Silverado 1500 Custom 4WD ALL Front 2"
2021 Chevrolet Silverado 1500 Custom Trail Boss ALL ALL Front 0"
2021 Chevrolet Silverado 1500 LT 4WD ALL Front 2"
2021 Chevrolet Silverado 1500 LT Trail Boss ALL ALL Front 0"
2021 Chevrolet Silverado 1500 LTZ 4WD ALL Front 2"
2021 Chevrolet Silverado 1500 RST 4WD ALL Front 2"
2021 Chevrolet Silverado 1500 SSV 4WD ALL
2021 Chevrolet Silverado 1500 WT 4WD ALL Front 2"
2021 GMC Sierra 1500 AT4 ALL ALL Front 0"
2021 GMC Sierra 1500 Base 4WD ALL
2021 GMC Sierra 1500 Elevation 4WD ALL Front 2"
2021 GMC Sierra 1500 SLE 4WD ALL Front 2"
2021 GMC Sierra 1500 SLT 4WD ALL Front 2"
2022 Chevrolet Silverado 1500 Custom 4WD ALL Front 2"
2022 Chevrolet Silverado 1500 Custom Trail Boss ALL ALL Front 0"
2022 Chevrolet Silverado 1500 LT 4WD ALL Front 2"
2022 Chevrolet Silverado 1500 LT Trail Boss ALL ALL Front 0"
2022 Chevrolet Silverado 1500 LTZ 4WD ALL Front 2"
2022 Chevrolet Silverado 1500 RST 4WD ALL Front 2"
2022 Chevrolet Silverado 1500 WT 4WD ALL Front 2"
2022 GMC Sierra 1500 AT4 ALL ALL Front 0"
2022 GMC Sierra 1500 Elevation 4WD ALL Front 2"
2022 GMC Sierra 1500 Pro 4WD ALL Front 2"
2022 GMC Sierra 1500 SLE 4WD ALL Front 2"
2022 GMC Sierra 1500 SLT 4WD ALL Front 2"
2023 Chevrolet Silverado 1500 Custom 4WD ALL Front 2"
2023 Chevrolet Silverado 1500 Custom Trail Boss ALL ALL Front 0"
2023 Chevrolet Silverado 1500 LT 4WD ALL Front 2"
2023 Chevrolet Silverado 1500 LT Trail Boss ALL ALL Front 0"
2023 Chevrolet Silverado 1500 LTZ 4WD ALL Front 2"
2023 Chevrolet Silverado 1500 PPV ALL ALL Front 2"
2023 Chevrolet Silverado 1500 RST 4WD ALL Front 2"
2023 Chevrolet Silverado 1500 WT 4WD ALL Front 2"
2023 GMC Sierra 1500 AT4 ALL ALL Front 0"
2023 GMC Sierra 1500 Elevation 4WD ALL Front 2"
2023 GMC Sierra 1500 Pro 4WD ALL Front 2"
2023 GMC Sierra 1500 SLE 4WD ALL Front 2"
2023 GMC Sierra 1500 SLT 4WD ALL Front 2"
2024 Chevrolet Silverado 1500 Custom 4WD ALL Front 2"
2024 Chevrolet Silverado 1500 Custom Trail Boss ALL ALL Front 0"
2024 Chevrolet Silverado 1500 LT 4WD ALL Front 2"
2024 Chevrolet Silverado 1500 LT Trail Boss ALL ALL Front 0"
2024 Chevrolet Silverado 1500 LTZ 4WD ALL Front 2"
2024 Chevrolet Silverado 1500 PPV ALL ALL Front 2"
2024 Chevrolet Silverado 1500 RST 4WD ALL Front 2"
2024 Chevrolet Silverado 1500 WT 4WD ALL Front 2"
2024 GMC Sierra 1500 AT4 ALL ALL Front 0"
2024 GMC Sierra 1500 Elevation 4WD ALL Front 2"
2024 GMC Sierra 1500 Pro 4WD ALL Front 2"
2024 GMC Sierra 1500 SLE 4WD ALL Front 2"
2024 GMC Sierra 1500 SLT 4WD ALL Front 2"
2025 Chevrolet Silverado 1500 Custom 4WD ALL Front 2"
2025 Chevrolet Silverado 1500 Custom Trail Boss ALL ALL Front 0"
2025 Chevrolet Silverado 1500 LT 4WD ALL Front 2"
2025 Chevrolet Silverado 1500 LT Trail Boss ALL ALL Front 0"
2025 Chevrolet Silverado 1500 LTZ 4WD ALL Front 2"
2025 Chevrolet Silverado 1500 PPV ALL ALL Front 2"
2025 Chevrolet Silverado 1500 RST 4WD ALL Front 2"
2025 Chevrolet Silverado 1500 WT 4WD ALL Front 2"
2025 GMC Sierra 1500 AT4 ALL ALL Front 0"
2025 GMC Sierra 1500 Elevation 4WD ALL Front 2"
2025 GMC Sierra 1500 Pro 4WD ALL Front 2"
2025 GMC Sierra 1500 SLE 4WD ALL Front 2"
2025 GMC Sierra 1500 SLT 4WD ALL Front 2"
2026 Chevrolet Silverado 1500 Custom 4WD ALL Front 2"
2026 Chevrolet Silverado 1500 Custom Trail Boss ALL ALL Front 0"
2026 Chevrolet Silverado 1500 LT 4WD ALL Front 2"
2026 Chevrolet Silverado 1500 LT Trail Boss ALL ALL Front 0"
2026 Chevrolet Silverado 1500 LTZ 4WD ALL Front 2"
2026 Chevrolet Silverado 1500 PPV ALL ALL Front 2"
2026 Chevrolet Silverado 1500 RST 4WD ALL Front 2"
2026 Chevrolet Silverado 1500 WT 4WD ALL Front 2"
2026 GMC Sierra 1500 AT4 ALL ALL Front 0"
2026 GMC Sierra 1500 Elevation 4WD ALL Front 2"
2026 GMC Sierra 1500 Pro 4WD ALL Front 2"
2026 GMC Sierra 1500 SLE 4WD ALL Front 2"
2026 GMC Sierra 1500 SLT 4WD ALL Front 2"
