2 Inch Leveling Kit FOX 2.0 Snap Ring Strut Toyota Tacoma 4WD 05-15 by BDS Suspension

OVERVIEW

Built to outperform, upgrade your 2005-2015 Toyota Tacoma with this 2-inch leveling kit featuring FOX 2.0 Snap Ring Struts from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 32" tires.

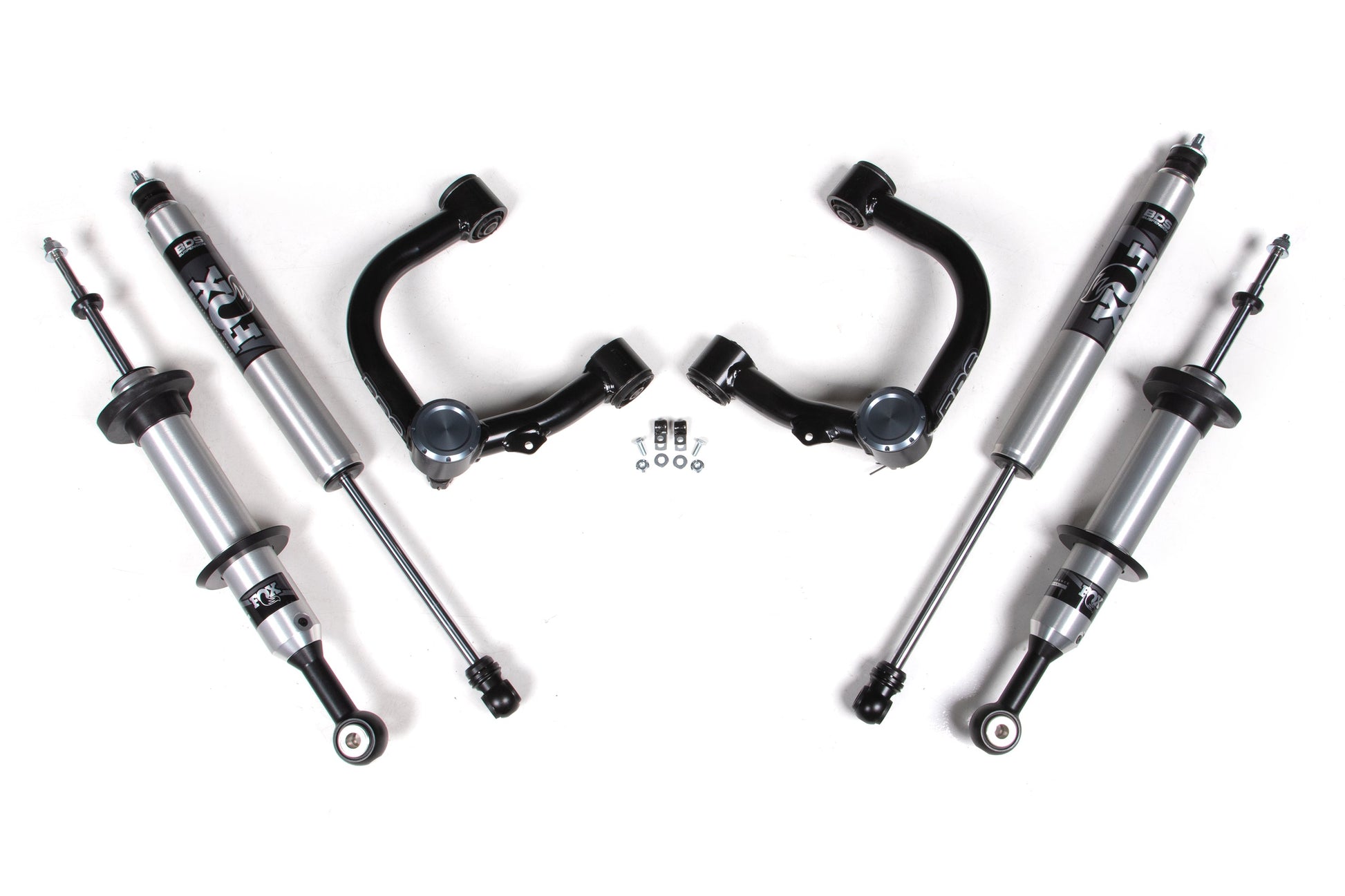

Up front the lift kit includes FOX 2.0 Performance Series strut shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.0 Snap Ring Strut

The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

A custom-molded spring seat allows the use of your stock spring and mounting hardware. The precision, impact-extruded 2-inch aluminum body is lightweight and rust resistant. Three predetermined preload settings allow a choice of 0-, 1- or 2-inches of lift.

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Features & Benefits

• FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series IFP rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100% Bolt on installation

Recommended Tires & Wheels

(Trimming may be required)

• 265 / 75 with and in. Backspace

IMPORTANT NOTES

265/75R16 tires on the stock wheels or equivalent

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

3-4 hrs

Difficulty Level :

Moderate

SPECIFICATION

• Front Lift Method : Coil-Over
• Front Lift Height : 2"
• Rear Lift Method : Stock
• Rear Lift Height : 0"
• Shocks Included : Yes
• Lift Height : 2-3.5"

FITMENT

Year	Make	Model	Submodel	Drive Type	Fuel Type
2005	Toyota	Tacoma	ALL	ALL	ALL
2006	Toyota	Tacoma	ALL	ALL	ALL
2007	Toyota	Tacoma	ALL	ALL	ALL
2008	Toyota	Tacoma	ALL	ALL	ALL
2009	Toyota	Tacoma	ALL	ALL	ALL
2010	Toyota	Tacoma	ALL	ALL	ALL
2011	Toyota	Tacoma	ALL	ALL	ALL
2012	Toyota	Tacoma	ALL	ALL	ALL
2013	Toyota	Tacoma	ALL	ALL	ALL
2014	Toyota	Tacoma	ALL	ALL	ALL
2015	Toyota	Tacoma	ALL	ALL	ALL
