2 Inch Leveling Kit FOX 2.0 Coilover Toyota Tacoma 4WD 05-15 by BDS Suspension

OVERVIEW

Level out your 2005-2015 Toyota Tacoma truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 32" tires.

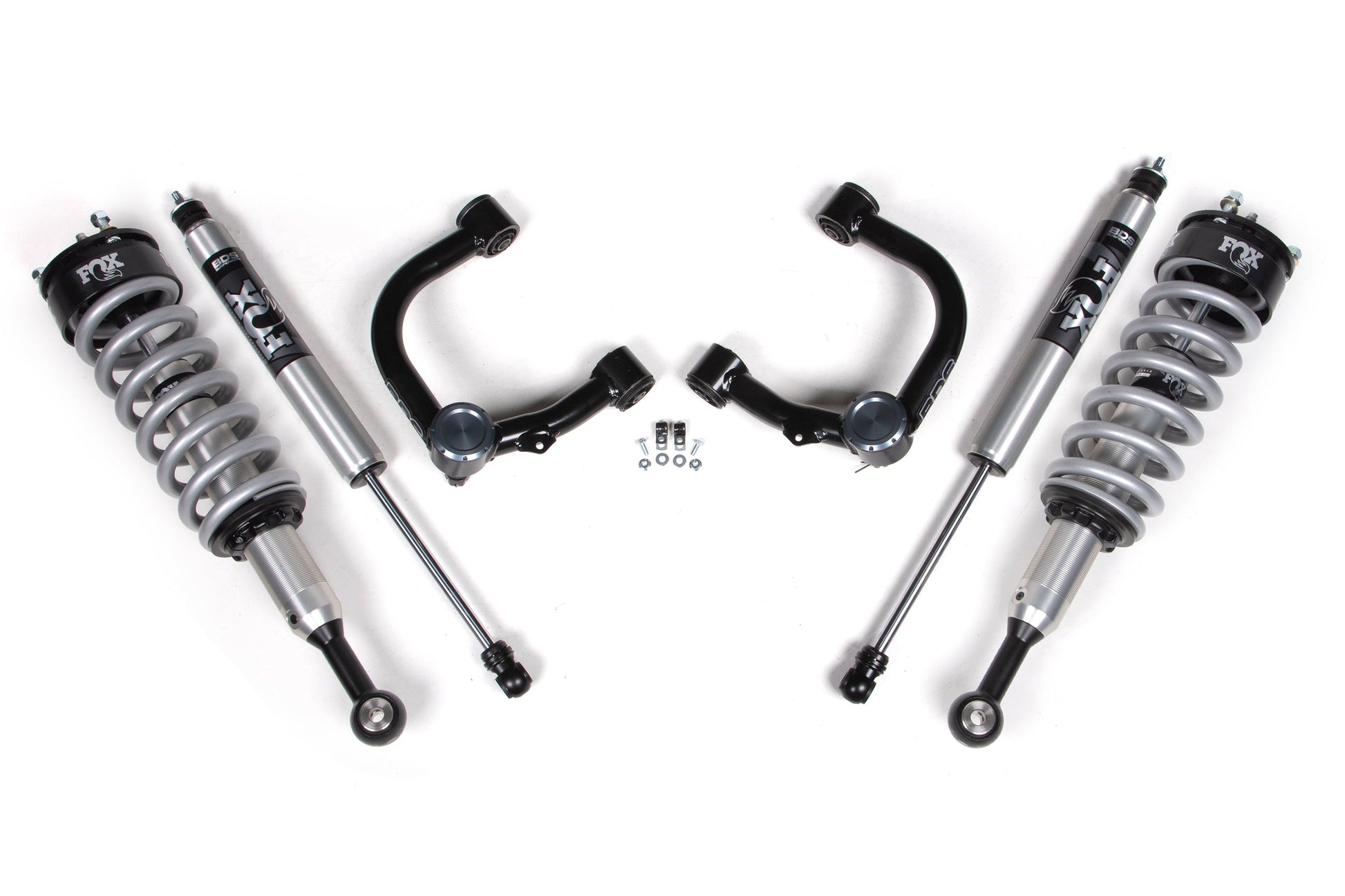

Up front, the lift kit includes FOX 2.0 Performance Series coilover shocks and heavy-duty tubular upper control arms for increased strength. In the rear, this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.0 Coilover Shocks

These FOX 2.0 Performance Series coilovers offer impressive damper performance, providing a great ride on and off-road, and are designed as a direct bolt-in replacement for the factory strut. They feature a 2.0" extruded and machined 6061 T6 aluminum body for improved heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, a 5/8" hard-chrome-plated heat-treated alloy shaft, and come preloaded with springs and a top plate for easy installation.

HD Upper Control Arms

Built for strength, performance, and increased travel, these upper control arms are ready to bolt in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning, allowing additional down travel and camber adjustment. At the frame mounting ends, durometer-specific rubber bushings provide maintenance-free operation. At the other end, a quality greaseable ball joint ensures smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap, ready for installation right out of the box.

Features & Benefits

• FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series IFP rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100% bolt-on installation

Recommended Tires & Wheels

(Trimming may be required)

• 265 / 75 with and in. Backspace

IMPORTANT NOTES

265/75R16 tires on the stock wheels or equivalent.

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

3-4 hrs

Difficulty Level :

Moderate

SPECIFICATION

• Front Lift Method : Coil-Over
• Front Lift Height : 2"
• Rear Lift Method : Stock
• Rear Lift Height : 0"
• Shocks Included : Yes
• Lift Height : 2-3.5"

FITMENT

Year	Make	Model	Submodel	Drive Type	Fuel Type
2005	Toyota	Tacoma	ALL	ALL	ALL
2006	Toyota	Tacoma	ALL	ALL	ALL
2007	Toyota	Tacoma	ALL	ALL	ALL
2008	Toyota	Tacoma	ALL	ALL	ALL
2009	Toyota	Tacoma	ALL	ALL	ALL
2010	Toyota	Tacoma	ALL	ALL	ALL
2011	Toyota	Tacoma	ALL	ALL	ALL
2012	Toyota	Tacoma	ALL	ALL	ALL
2013	Toyota	Tacoma	ALL	ALL	ALL
2014	Toyota	Tacoma	ALL	ALL	ALL
2015	Toyota	Tacoma	ALL	ALL	ALL
