BDS Suspension

2 Inch Leveling Kit FOX 2.0 Coilover Chevy Silverado GMC Sierra 1500 4WD 19-26 by BDS Suspension

2 Inch Leveling Kit FOX 2.0 Coilover Chevy Silverado GMC Sierra 1500 4WD 19-26 by BDS Suspension

$2,430.75 USD
$2,430.75 USD
Sale Sold out

OVERVIEW

Level out your Chevy Silverado and GMC Sierra 1500 truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

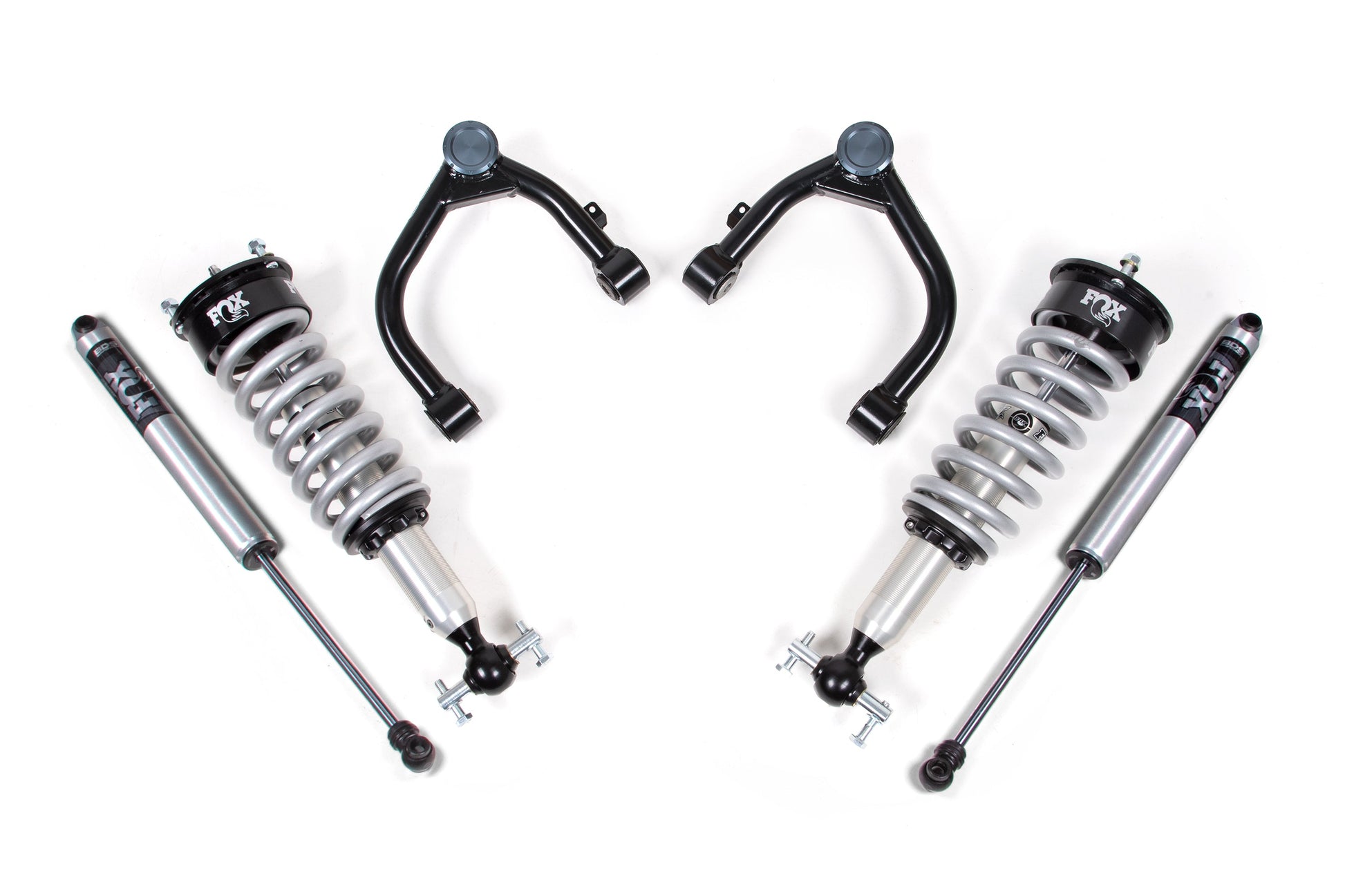

Up front, the leveling kit includes FOX 2.0 Performance Series coilover shocks and heavy-duty tubular upper control arms for increased strength. In the rear, this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.0 Coil-Over Shocks

These FOX 2.0 Performance Series coilovers deliver impressive damper performance, providing a great ride on and off-road, and are designed as a direct bolt-in replacement for the factory strut. They feature a 2.0" extruded and machined 6061 T6 aluminum body for improved heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, a 5/8" hard-chrome-plated heat-treated alloy shaft, and come preloaded with springs and a top plate for easy installation.

HD Upper Control Arms

Built for strength, performance, and increased travel, these upper control arms are ready to bolt in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning, allowing additional down travel and camber adjustment. At the frame mounting ends, durometer-specific rubber bushings provide maintenance-free operation. At the other end, a quality greaseable ball joint ensures smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap, ready for installation right out of the box.

Features & Benefits

  • FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement
  • Performance UCAs increase strength and allow for more suspension travel
  • FOX 2.0 performance series IFP rear shocks included
  • Factory Protection Plus drivetrain warranty included
  • Easy, 100% Bolt on installation

Recommended Tires & Wheels

(Trimming may be required)

  • 295 / 70 with 17 x 9 and 5.5 in. Backspace
  • 295 / 65 with 18 x 9 and 5.5 in. Backspace
  • 295 / 60 with 20 x 9 and 5.5 in. Backspace

IMPORTANT NOTES

  • Requires a maximum of 5.5" BS Wheel for tire clearance to the upper ball joint when used on 2-3.5" kits
  • Can be used on Trail Boss / AT4 models, but will net 0" lift
  • Will not fit models equipped with ARC

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

3-4 hrs

Difficulty Level :

Moderate

SPECIFICATION

  • Front Lift Method : Coil-Over
  • Front Lift Height : 2"
  • Rear Lift Method : Stock
  • Rear Lift Height : 0"
  • Shocks Included : Yes
  • Lift Height : 2-3.5"

FITMENT

Year Make Model Submodel Drive Type Fuel Type Position Lift Height
2019 Chevrolet Silverado 1500 Custom 4WD ALL Front 2"
2019 Chevrolet Silverado 1500 Custom Trail Boss ALL ALL Front 0"
2019 Chevrolet Silverado 1500 LT 4WD ALL Front 2"
2019 Chevrolet Silverado 1500 LT Trail Boss ALL ALL Front 0"
2019 Chevrolet Silverado 1500 LTZ 4WD ALL Front 2"
2019 Chevrolet Silverado 1500 RST 4WD ALL Front 2"
2019 Chevrolet Silverado 1500 SSV 4WD ALL
2019 Chevrolet Silverado 1500 WT 4WD ALL Front 2"
2019 Chevrolet Silverado 1500 WT Cab Regular 4WD ALL
2019 Chevrolet Silverado 1500 WT Doble Cabina 4WD ALL
2019 GMC Sierra 1500 AT4 ALL ALL Front 0"
2019 GMC Sierra 1500 Base 4WD ALL
2019 GMC Sierra 1500 Elevation 4WD ALL Front 2"
2019 GMC Sierra 1500 SLE 4WD ALL Front 2"
2019 GMC Sierra 1500 SLT 4WD ALL Front 2"
2020 Chevrolet Silverado 1500 Custom 4WD ALL Front 2"
2020 Chevrolet Silverado 1500 Custom Trail Boss ALL ALL Front 0"
2020 Chevrolet Silverado 1500 LT 4WD ALL Front 2"
2020 Chevrolet Silverado 1500 LT Trail Boss ALL ALL Front 0"
2020 Chevrolet Silverado 1500 LTZ 4WD ALL Front 2"
2020 Chevrolet Silverado 1500 RST 4WD ALL Front 2"
2020 Chevrolet Silverado 1500 SSV 4WD ALL
2020 Chevrolet Silverado 1500 WT 4WD ALL Front 2"
2020 Chevrolet Silverado 1500 WT Cab Regular 4WD ALL
2020 Chevrolet Silverado 1500 WT Doble Cabina 4WD ALL
2020 GMC Sierra 1500 AT4 ALL ALL Front 0"
2020 GMC Sierra 1500 Base 4WD ALL
2020 GMC Sierra 1500 Elevation 4WD ALL Front 2"
2020 GMC Sierra 1500 SLE 4WD ALL Front 2"
2020 GMC Sierra 1500 SLT 4WD ALL Front 2"
2021 Chevrolet Silverado 1500 Custom 4WD ALL Front 2"
2021 Chevrolet Silverado 1500 Custom Trail Boss ALL ALL Front 0"
2021 Chevrolet Silverado 1500 LT 4WD ALL Front 2"
2021 Chevrolet Silverado 1500 LT Trail Boss ALL ALL Front 0"
2021 Chevrolet Silverado 1500 LTZ 4WD ALL Front 2"
2021 Chevrolet Silverado 1500 RST 4WD ALL Front 2"
2021 Chevrolet Silverado 1500 SSV 4WD ALL
2021 Chevrolet Silverado 1500 WT 4WD ALL Front 2"
2021 GMC Sierra 1500 AT4 ALL ALL Front 0"
2021 GMC Sierra 1500 Base 4WD ALL
2021 GMC Sierra 1500 Elevation 4WD ALL Front 2"
2021 GMC Sierra 1500 SLE 4WD ALL Front 2"
2021 GMC Sierra 1500 SLT 4WD ALL Front 2"
2022 Chevrolet Silverado 1500 Custom 4WD ALL Front 2"
2022 Chevrolet Silverado 1500 Custom Trail Boss ALL ALL Front 0"
2022 Chevrolet Silverado 1500 LT 4WD ALL Front 2"
2022 Chevrolet Silverado 1500 LT Trail Boss ALL ALL Front 0"
2022 Chevrolet Silverado 1500 LTZ 4WD ALL Front 2"
2022 Chevrolet Silverado 1500 RST 4WD ALL Front 2"
2022 Chevrolet Silverado 1500 WT 4WD ALL Front 2"
2022 GMC Sierra 1500 AT4 ALL ALL Front 0"
2022 GMC Sierra 1500 Elevation 4WD ALL Front 2"
2022 GMC Sierra 1500 Pro 4WD ALL Front 2"
2022 GMC Sierra 1500 SLE 4WD ALL Front 2"
2022 GMC Sierra 1500 SLT 4WD ALL Front 2"
2023 Chevrolet Silverado 1500 Custom 4WD ALL Front 2"
2023 Chevrolet Silverado 1500 Custom Trail Boss ALL ALL Front 0"
2023 Chevrolet Silverado 1500 LT 4WD ALL Front 2"
2023 Chevrolet Silverado 1500 LT Trail Boss ALL ALL Front 0"
2023 Chevrolet Silverado 1500 LTZ 4WD ALL Front 2"
2023 Chevrolet Silverado 1500 PPV ALL ALL Front 2"
2023 Chevrolet Silverado 1500 RST 4WD ALL Front 2"
2023 Chevrolet Silverado 1500 WT 4WD ALL Front 2"
2023 GMC Sierra 1500 AT4 ALL ALL Front 0"
2023 GMC Sierra 1500 Elevation 4WD ALL Front 2"
2023 GMC Sierra 1500 Pro 4WD ALL Front 2"
2023 GMC Sierra 1500 SLE 4WD ALL Front 2"
2023 GMC Sierra 1500 SLT 4WD ALL Front 2"
2024 Chevrolet Silverado 1500 Custom 4WD ALL Front 2"
2024 Chevrolet Silverado 1500 Custom Trail Boss ALL ALL Front 0"
2024 Chevrolet Silverado 1500 LT 4WD ALL Front 2"
2024 Chevrolet Silverado 1500 LT Trail Boss ALL ALL Front 0"
2024 Chevrolet Silverado 1500 LTZ 4WD ALL Front 2"
2024 Chevrolet Silverado 1500 PPV ALL ALL Front 2"
2024 Chevrolet Silverado 1500 RST 4WD ALL Front 2"
2024 Chevrolet Silverado 1500 WT 4WD ALL Front 2"
2024 GMC Sierra 1500 AT4 ALL ALL Front 0"
2024 GMC Sierra 1500 Elevation 4WD ALL Front 2"
2024 GMC Sierra 1500 Pro 4WD ALL Front 2"
2024 GMC Sierra 1500 SLE 4WD ALL Front 2"
2024 GMC Sierra 1500 SLT 4WD ALL Front 2"
2025 Chevrolet Silverado 1500 Custom 4WD ALL Front 2"
2025 Chevrolet Silverado 1500 Custom Trail Boss ALL ALL Front 0"
2025 Chevrolet Silverado 1500 LT 4WD ALL Front 2"
2025 Chevrolet Silverado 1500 LT Trail Boss ALL ALL Front 0"
2025 Chevrolet Silverado 1500 LTZ 4WD ALL Front 2"
2025 Chevrolet Silverado 1500 PPV ALL ALL Front 2"
2025 Chevrolet Silverado 1500 RST 4WD ALL Front 2"
2025 Chevrolet Silverado 1500 WT 4WD ALL Front 2"
2025 GMC Sierra 1500 AT4 ALL ALL Front 0"
2025 GMC Sierra 1500 Elevation 4WD ALL Front 2"
2025 GMC Sierra 1500 Pro 4WD ALL Front 2"
2025 GMC Sierra 1500 SLE 4WD ALL Front 2"
2025 GMC Sierra 1500 SLT 4WD ALL Front 2"
2026 Chevrolet Silverado 1500 Custom 4WD ALL Front 2"
2026 Chevrolet Silverado 1500 Custom Trail Boss ALL ALL Front 0"
2026 Chevrolet Silverado 1500 LT 4WD ALL Front 2"
2026 Chevrolet Silverado 1500 LT Trail Boss ALL ALL Front 0"
2026 Chevrolet Silverado 1500 LTZ 4WD ALL Front 2"
2026 Chevrolet Silverado 1500 PPV ALL ALL Front 2"
2026 Chevrolet Silverado 1500 RST 4WD ALL Front 2"
2026 Chevrolet Silverado 1500 WT 4WD ALL Front 2"
2026 GMC Sierra 1500 AT4 ALL ALL Front 0"
2026 GMC Sierra 1500 Elevation 4WD ALL Front 2"
2026 GMC Sierra 1500 Pro 4WD ALL Front 2"
2026 GMC Sierra 1500 SLE 4WD ALL Front 2"
2026 GMC Sierra 1500 SLT 4WD ALL Front 2"
