2 Inch Leveling Kit FOX 2.0 Coilover Chevy Silverado GMC Sierra 1500 4WD 07-18 by BDS Suspension

OVERVIEW

Level out your 2007-2018 Chevy Silverado and GMC Sierra 1500 truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

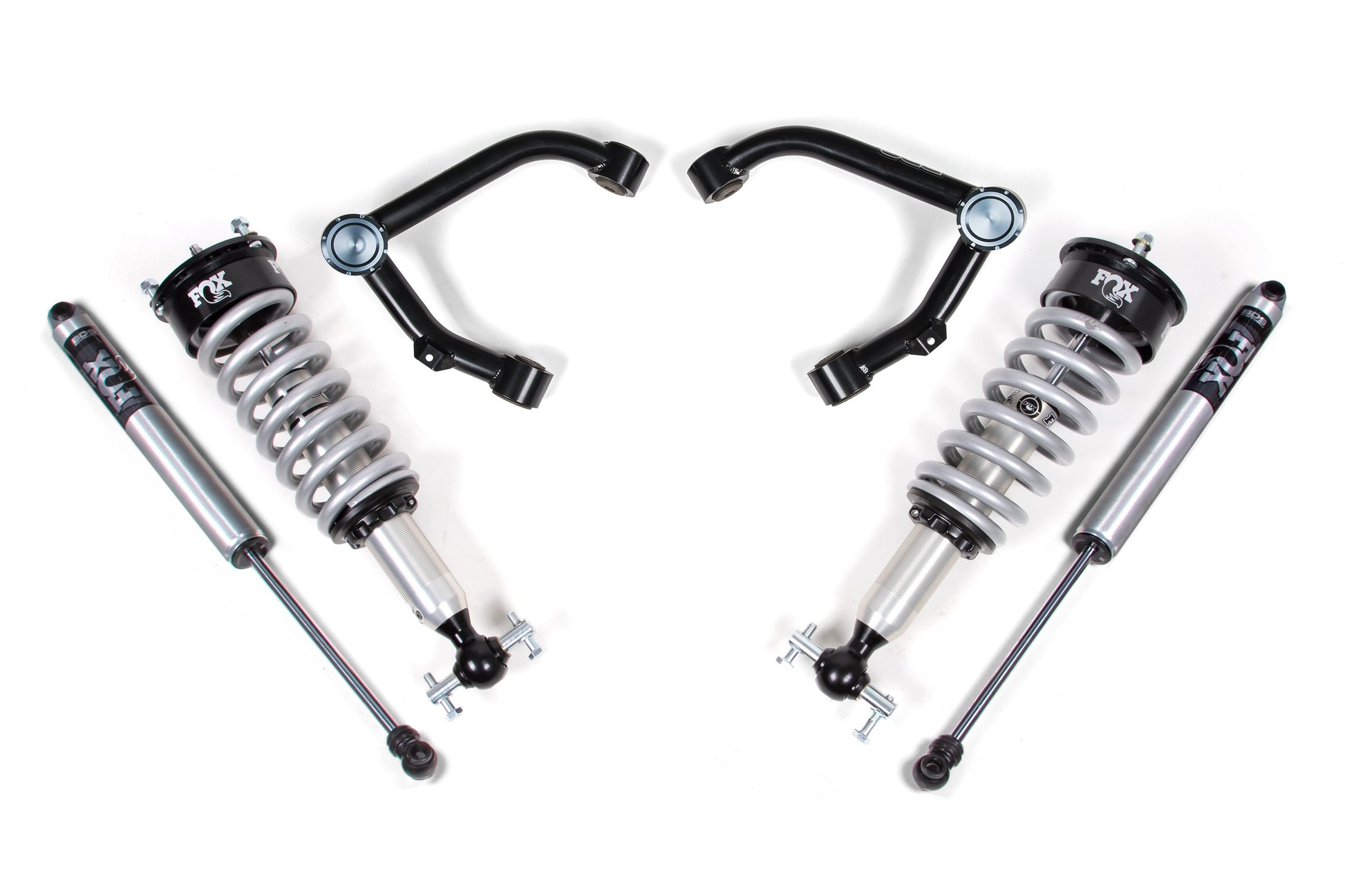

Up front, the lift kit includes FOX 2.0 Performance Series coilover shocks and heavy-duty tubular upper control arms for increased strength. In the rear, this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.0 Coilover Shocks

These FOX 2.0 Performance Series coilovers deliver impressive damper performance, providing a great ride on and off-road, and are designed as a direct bolt-in replacement for the factory strut. They feature a 2.0" extruded and machined 6061 T6 aluminum body for improved heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, a 5/8" hard-chrome-plated heat-treated alloy shaft, and come preloaded with springs and a top plate for easy installation.

HD Upper Control Arms

Built for strength, performance, and increased travel, these upper control arms are ready to bolt in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning, allowing additional down travel and camber adjustment. At the frame mounting ends, durometer-specific rubber bushings provide maintenance-free operation. At the other end, a quality greaseable ball joint ensures smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap, ready for installation right out of the box.

Factory Control Arm Type

*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images in each tab below.

IMPORTANT NOTES

• 33x12.50 tires will require weld on steering stop, also it requires inner fender well modification to clear this width tire
• Will Not fit MagneRide magnetic ride control equipped models

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

3-4 hrs

Difficulty Level :

Moderate

Tools Needed :

Welding Equipment

SPECIFICATION

• Front Lift Method : Coil-Over
• Front Lift Height : 2"
• Rear Lift Method : Stock
• Rear Lift Height : 0"
• Shocks Included : Yes
• Lift Height : 2-3.5"

FITMENT

Year	Make	Model	Submodel	Drive Type	Fuel Type
2007	Chevrolet	Silverado 1500	ALL	ALL	ALL
2007	GMC	Sierra 1500	ALL	ALL	ALL
2008	Chevrolet	Silverado 1500	ALL	ALL	ALL
2008	GMC	Sierra 1500	ALL	ALL	ALL
2009	Chevrolet	Silverado 1500	ALL	ALL	ALL
2009	GMC	Sierra 1500	ALL	ALL	ALL
2010	Chevrolet	Silverado 1500	ALL	ALL	ALL
2010	GMC	Sierra 1500	ALL	ALL	ALL
2011	Chevrolet	Silverado 1500	ALL	ALL	ALL
2011	GMC	Sierra 1500	ALL	ALL	ALL
2012	Chevrolet	Silverado 1500	ALL	ALL	ALL
2012	GMC	Sierra 1500	ALL	ALL	ALL
2013	Chevrolet	Silverado 1500	ALL	ALL	ALL
2013	GMC	Sierra 1500	ALL	ALL	ALL
2014	Chevrolet	Silverado 1500	ALL	ALL	ALL
2014	GMC	Sierra 1500	ALL	ALL	ALL
2015	Chevrolet	Silverado 1500	ALL	ALL	ALL
2015	GMC	Sierra 1500	ALL	ALL	ALL
2016	Chevrolet	Silverado 1500	ALL	ALL	ALL
2016	GMC	Sierra 1500	ALL	ALL	ALL
2017	Chevrolet	Silverado 1500	ALL	ALL	ALL
2017	GMC	Sierra 1500	ALL	ALL	ALL
2018	Chevrolet	Silverado 1500	ALL	ALL	ALL
2018	GMC	Sierra 1500	ALL	ALL	ALL
