2 Inch Leveling Kit FOX 2.5 Coilover Ford F150 4WD 09-13 by BDS Suspension

OVERVIEW

Take your 2009-2013 Ford F150 truck to the next level and improve the ride with this 2-inch lift kit featuring FOX 2.5 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

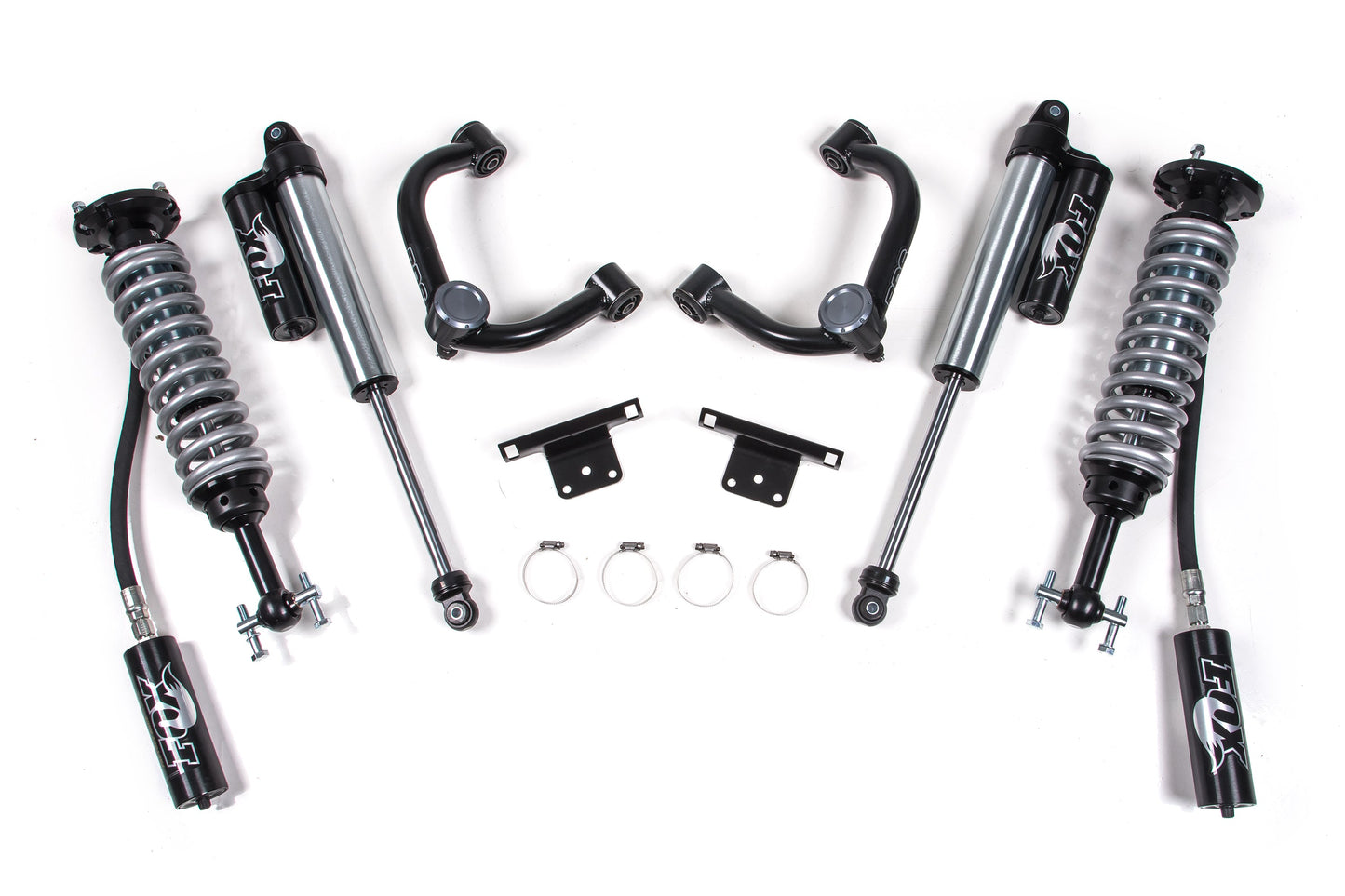

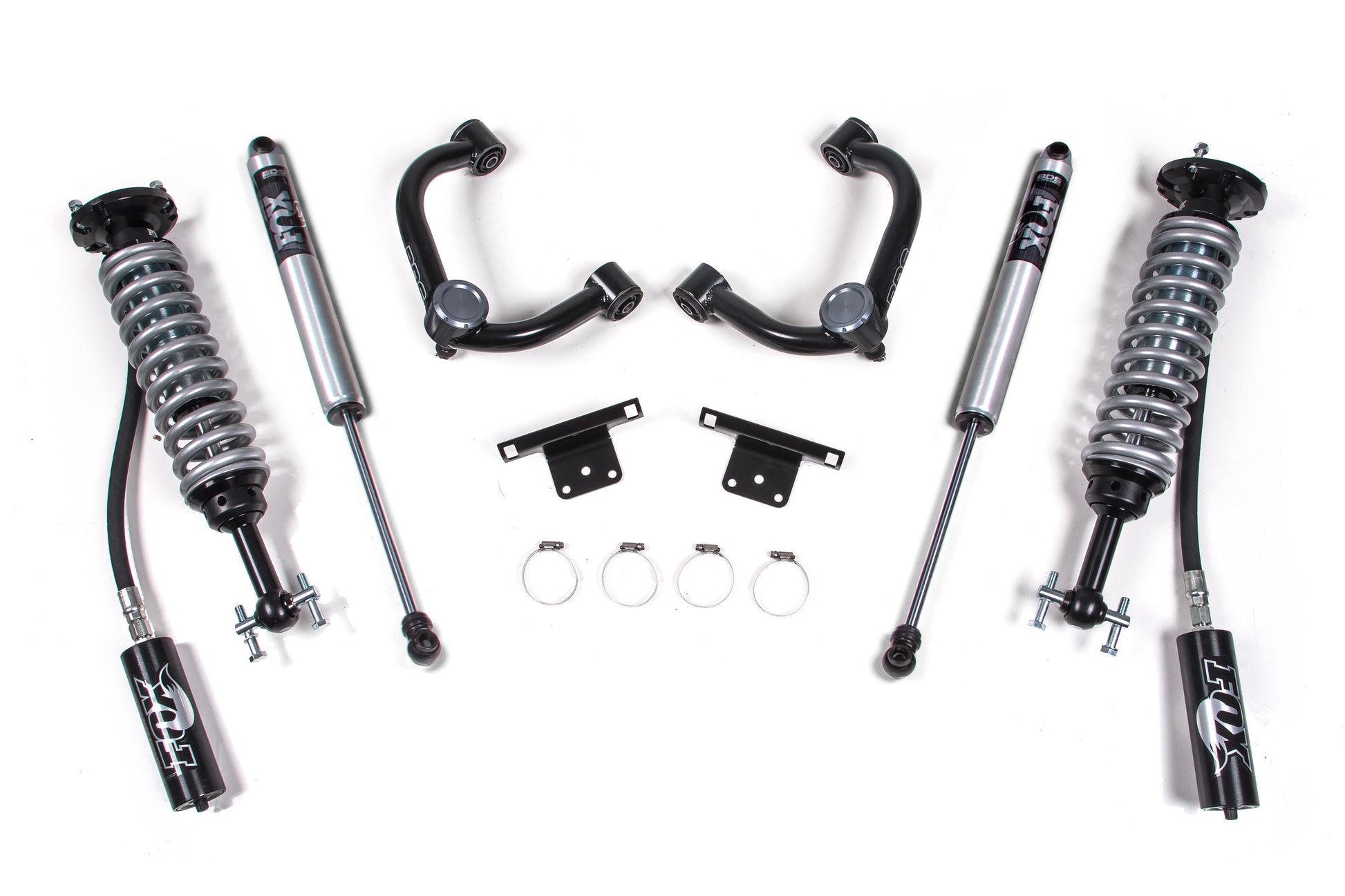

Up front the lift kit includes FOX 2.5 Factory Series remote reservoir coilover shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.

DSC Adjustment

FOX 2.5 coilovers are available with optional DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Coil-Over Option

FOX 2.5 Coil-Overs

• 2.5-inch smooth bore zinc plated seamless steel body
• Zinc-plated and double-clear coated for long lasting finish
• Black-anodized, CNC-machined 6061-T6 billet aluminum
• Application-specific, adjustable 3.0 Eibach® racing springs
• 7/8-inch hard chrome-plated steel shafts
• Application specific valving to maximize performance

FOX 2.5 Coil-Overs with DSC Adjuster

All the FOX Coil-Over Advantages Plus:

• Dual Speed Compression (DSC) Adjuster
• Increases both low and high-speed compression levels up to 25%
• Easy twist knobs for Low-Speed and High-Speed Compression adjustment
• Provides added control and comfort for on-road use
• More aggressive damping for use off-road

IMPORTANT NOTES

Will not fit HD models (7 lug).

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

3 hrs

Difficulty Level :

Moderate

Tools Needed :

204-592 Ball Joint Separator (Recommended), Basic Hand Tools, Jack / Jack Stands

SPECIFICATION

• Front Lift Method : Coil-Over
• Front Lift Height : 2"
• Rear Lift Method : Stock
• Rear Lift Height : 0"
• Shocks Included : Yes
• Lift Height : 2-3.5"

FITMENT

Year	Make	Model	Submodel	Drive Type	Fuel Type
2009	Ford	F-150	FX4	ALL	ALL
2009	Ford	F-150	King Ranch	4WD	ALL
2009	Ford	F-150	Lariat	4WD	ALL
2009	Ford	F-150	Platinum	4WD	ALL
2009	Ford	F-150	STX	4WD	ALL
2009	Ford	F-150	XL	4WD	ALL
2009	Ford	F-150	XLT	4WD	ALL
2010	Ford	F-150	FX4	ALL	ALL
2010	Ford	F-150	King Ranch	4WD	ALL
2010	Ford	F-150	Lariat	4WD	ALL
2010	Ford	F-150	Platinum	4WD	ALL
2010	Ford	F-150	STX	4WD	ALL
2010	Ford	F-150	XL	4WD	ALL
2010	Ford	F-150	XLT	4WD	ALL
2011	Ford	F-150	FX4	ALL	ALL
2011	Ford	F-150	King Ranch	4WD	ALL
2011	Ford	F-150	Lariat	4WD	ALL
2011	Ford	F-150	Lariat Limited	4WD	ALL
2011	Ford	F-150	Platinum	4WD	ALL
2011	Ford	F-150	STX	4WD	ALL
2011	Ford	F-150	XL	4WD	ALL
2011	Ford	F-150	XLT	4WD	ALL
2012	Ford	F-150	FX4	ALL	ALL
2012	Ford	F-150	King Ranch	4WD	ALL
2012	Ford	F-150	Lariat	4WD	ALL
2012	Ford	F-150	Platinum	4WD	ALL
2012	Ford	F-150	STX	4WD	ALL
2012	Ford	F-150	XL	4WD	ALL
2012	Ford	F-150	XLT	4WD	ALL
2013	Ford	F-150	FX4	ALL	ALL
2013	Ford	F-150	King Ranch	4WD	ALL
2013	Ford	F-150	Lariat	4WD	ALL
2013	Ford	F-150	Limited	4WD	ALL
2013	Ford	F-150	Platinum	4WD	ALL
2013	Ford	F-150	STX	4WD	ALL
2013	Ford	F-150	XL	4WD	ALL
2013	Ford	F-150	XLT	4WD	ALL
