2 Inch Leveling Kit Chevy Silverado GMC Sierra 1500 14-18 by BDS Suspension

OVERVIEW

Level the front of your 2014-2018 Chevy Silverado and GMC Sierra 1500 truck by installing this 2-inch leveling kit from BDS. Specially designed for the 14-18 GM truck, this 2" leveling kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop. To prevent maxing out ball joints or CV damage, BDS gets around this issue a small pre-load spacer is combined with a top spacer to properly achieve height.

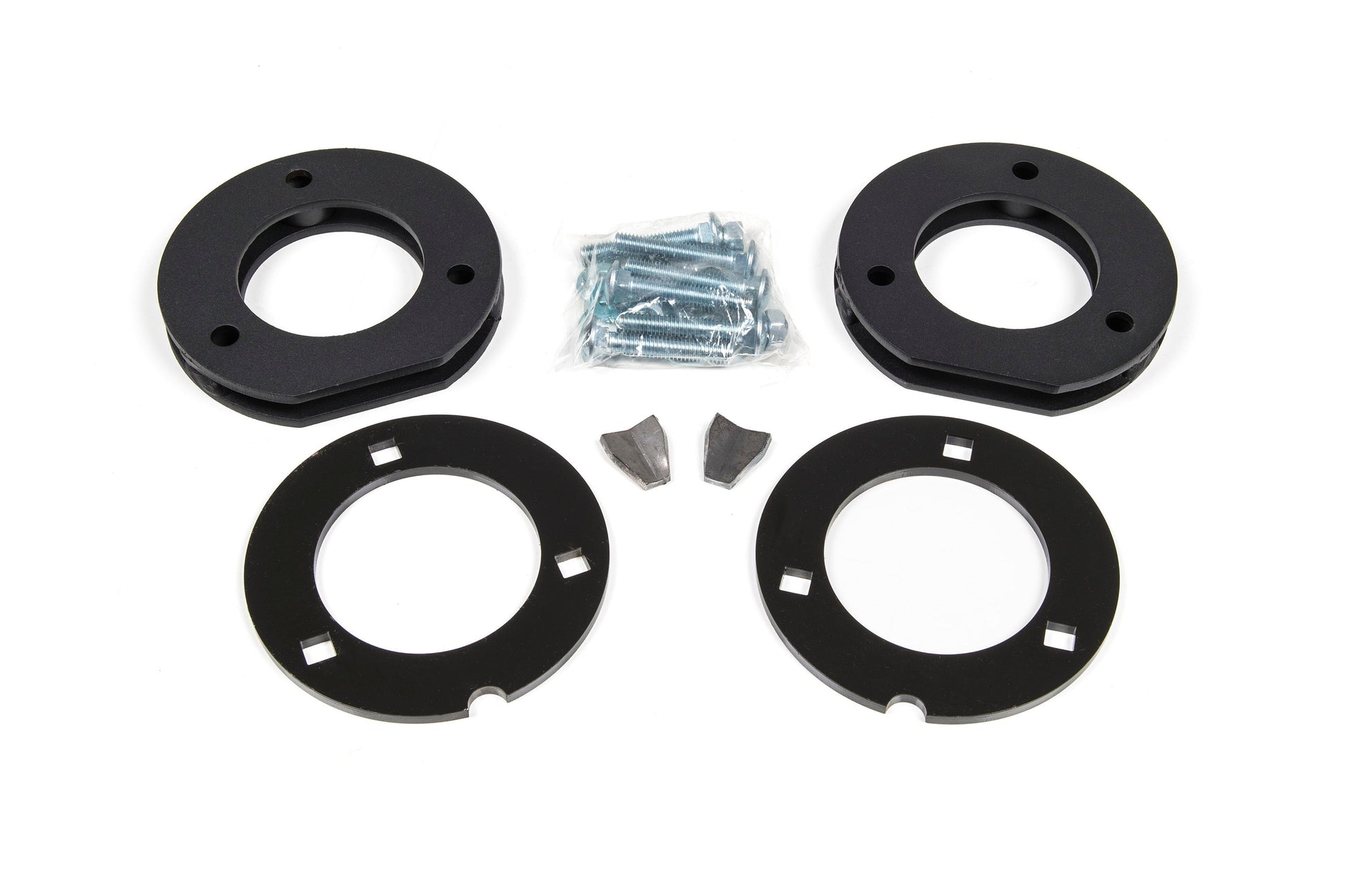

The lift kit includes steel top mount strut spacers and pre-load spacers. Take it up a notch by adding custom-tuned NX2 Nitro or FOX Performance series shocks. Give your Chevy 1500 the extra boost with this 2" leveling kit from BDS Suspension.

Features & Benefits

• Easy, 100% Bolt-on installation
• Maintains factory like ride quality
• Optional NX2 Nitro shocks with vehicle-specific valving for better control
• Optional Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

• 285 / 70 with 17 x 8 and in. Backspace

IMPORTANT NOTES

1. Strut compressor required for installation
2. Will NOT work on Auto Ride or Magneride equipped models

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

3 hrs

Difficulty Level :

Moderate



SPECIFICATION

• Front Lift Method : Strut Spacer
• Front Lift Height : 2"
• Rear Lift Method : Stock
• Rear Lift Height : 0"
• Shocks Included : No
• Lift Height : 2-3.5"

FITMENT
