BDS Suspension

1.75 Inch Lift Kit Jeep Cherokee XJ 84-01 by BDS Suspension

1.75 Inch Lift Kit Jeep Cherokee XJ 84-01 by BDS Suspension

$949.75 USD
$949.75 USD
Sale Sold out
Rear Axle Option
Shock Option

OVERVIEW

Designed to improve stance, performance, and capability. BDS Suspension has designed this 1-3/4 inch lift kit for your 1984-2001 Jeep Cherokee XJ. Specially designed for the Cherokee, this 1-3/4" lift kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.

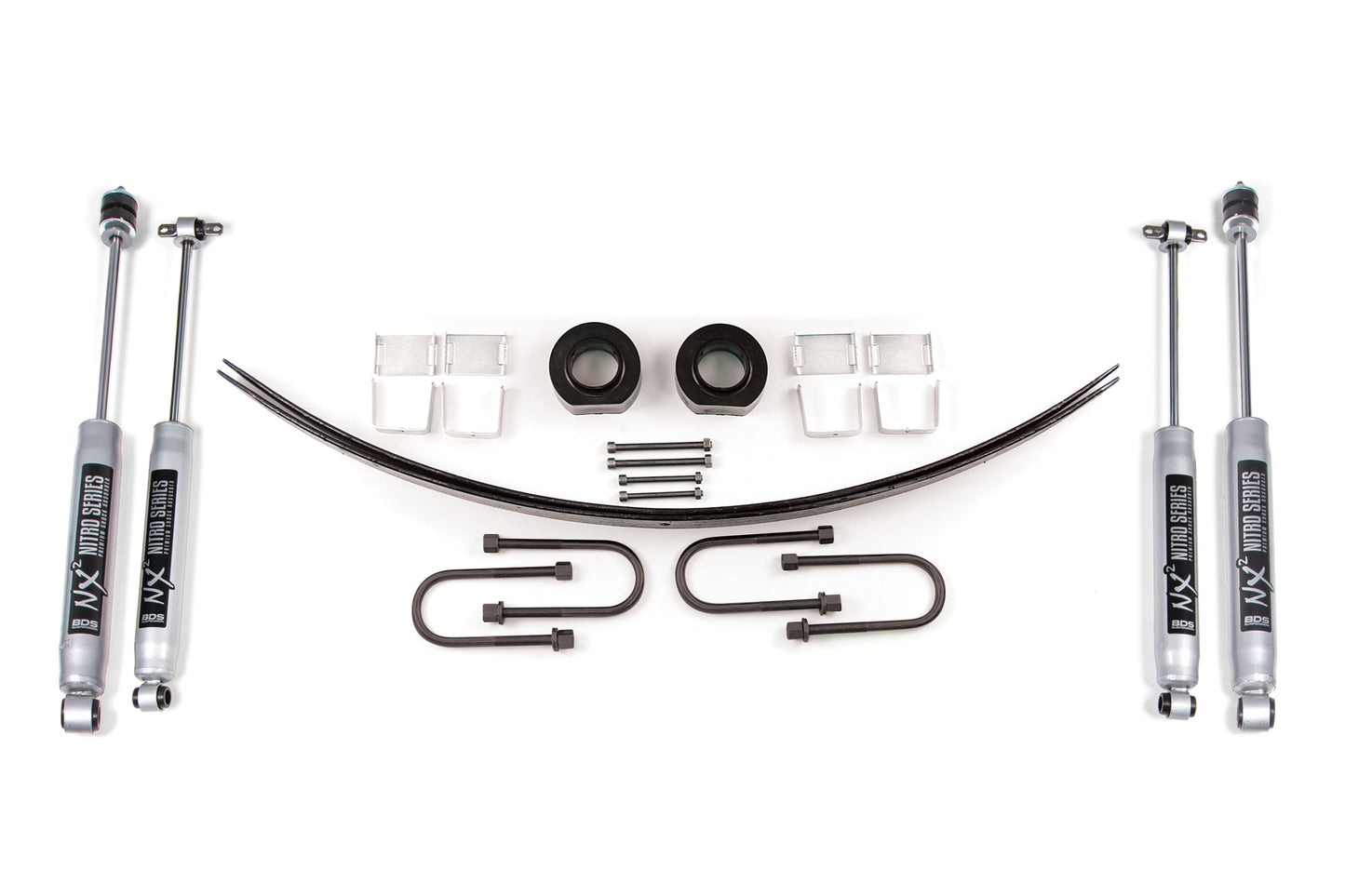

The lift kit includes two front 1-3/4" urethane coil spring spacers, long rear thin add-a-leaf springs, and NX2 Nitro or FOX Performance series shocks. Give your Cherokee XJ the extra height with this 1-3/4 inch lift kit from BDS Suspension.

Features & Benefits

  • Front urethane coil spacer maintains factory ride
  • Easy, 100% Bolt-on installation
  • NX2 gas shocks for improved damping
  • Allows clearance for 30" tires

Recommended Tires & Wheels

(Trimming may be required)

  • 30 x 9.5 with 15 x 7 and 4 in. Backspace

Rear Axle Option

The Jeep Cherokee was produced with two different rear axles (Chrysler 8.25 or Dana 35). You will need to measure your rear u-bolts to ensure that you get the correct new u-bolts. Basically, just measure the diameter of the axle or the I.D. of your rear u-bolts. Chrysler axles require 3" wide u-bolts and Dana 35 axles require 2-3/4" wide u-bolts. Some 1987-90 models came with a Dana 44. Measure and call BDS for proper u-bolt fitment.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

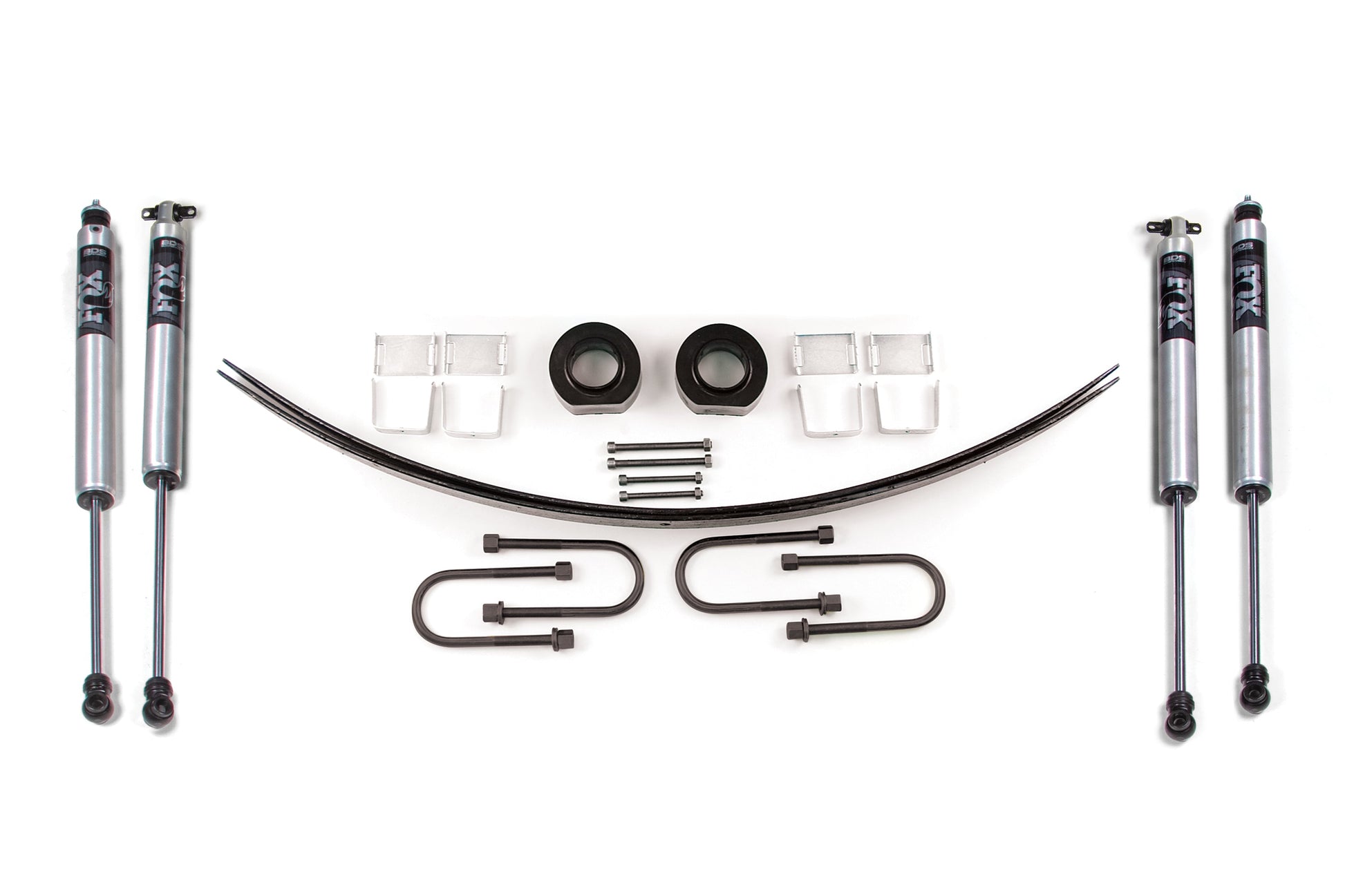

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

IMPORTANT NOTES

Transfer case lowering kit is not required for 2WD models.

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

4 hrs

Difficulty Level :

Moderately Easy

Tools Needed :

Torque Wrench, Torx Bit / Socket Set, Drill / Bit Set, Jack / Jack Stands

SPECIFICATION

  • Front Lift Method : Coil Spring
  • Front Lift Height : 1.75"
  • Rear Lift Method : Add-A-Leaf
  • Rear Lift Height : 2"
  • Shocks Included : Yes
  • Lift Height : 0-1.5"

FITMENT

Year Make Model Submodel Drive Type Fuel Type
1984 Jeep Cherokee ALL ALL ALL
1985 Jeep Cherokee ALL 4WD GAS
1986 Jeep Cherokee ALL 4WD GAS
1987 Jeep Cherokee ALL 4WD GAS
1988 Jeep Cherokee ALL 4WD ALL
1989 Jeep Cherokee ALL 4WD ALL
1990 Jeep Cherokee ALL 4WD ALL
1991 Jeep Cherokee ALL 4WD ALL
1992 Jeep Cherokee ALL 4WD ALL
1993 Jeep Cherokee ALL 4WD ALL
1994 Jeep Cherokee Country 4WD ALL
1994 Jeep Cherokee SE 4WD ALL
1994 Jeep Cherokee Sport 4WD ALL
1995 Jeep Cherokee ALL 4WD ALL
1996 Jeep Cherokee ALL 4WD ALL
1997 Jeep Cherokee ALL 4WD ALL
1998 Jeep Cherokee ALL 4WD ALL
1999 Jeep Cherokee ALL 4WD ALL
2000 Jeep Cherokee ALL 4WD ALL
2001 Jeep Cherokee ALL 4WD ALL
