1.75 Inch Lift Kit Chevy Silverado GMC Sierra 1500 AT4 Trail Boss 25-26 by Zone Offroad

1.75 Inch Lift Kit Chevy Silverado GMC Sierra 1500 AT4 Trail Boss 25-26 by Zone Offroad

$899.84 USD
$899.84 USD
Sale Sold out
Rear Shock Option

OVERVIEW

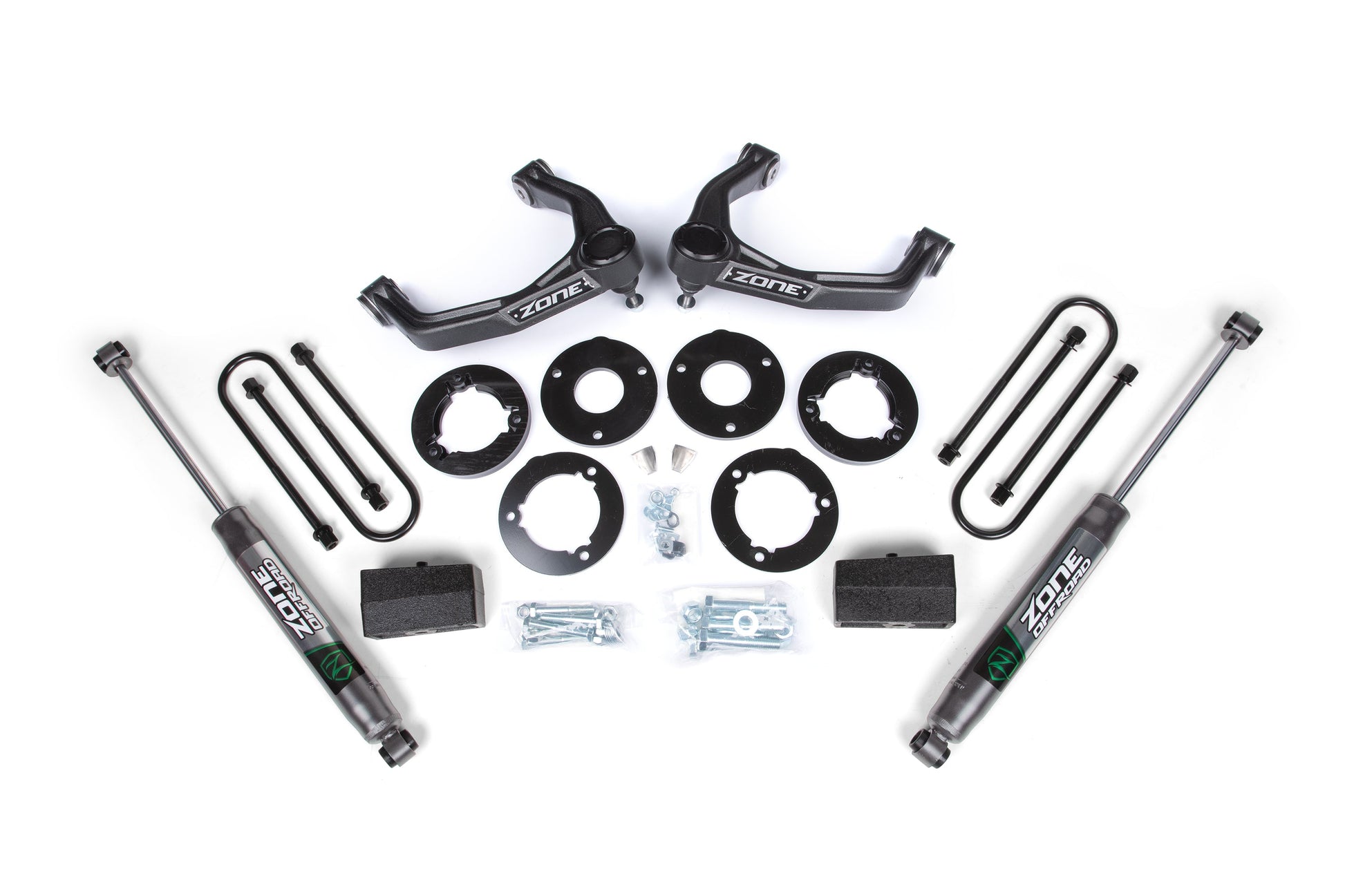

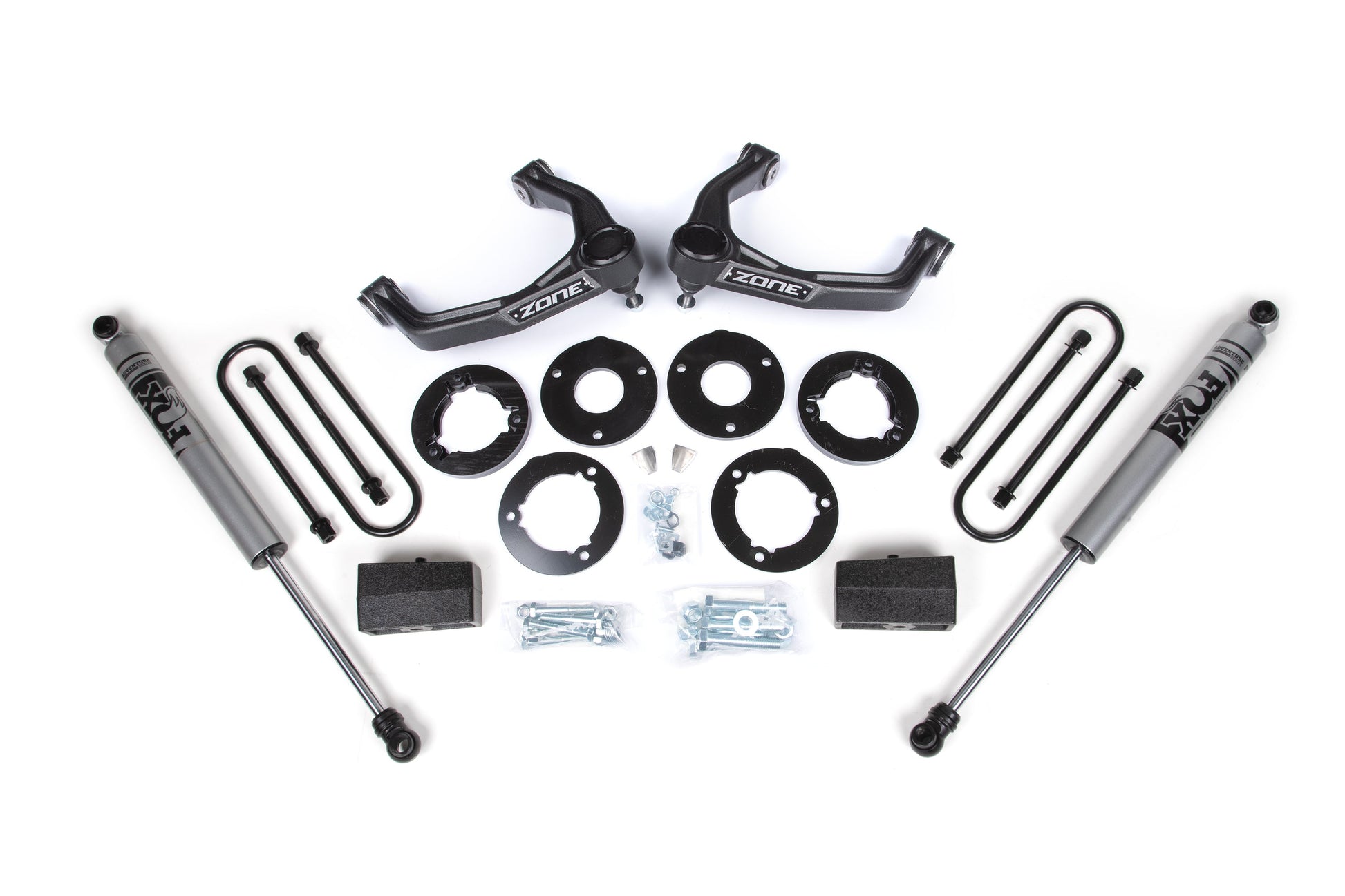

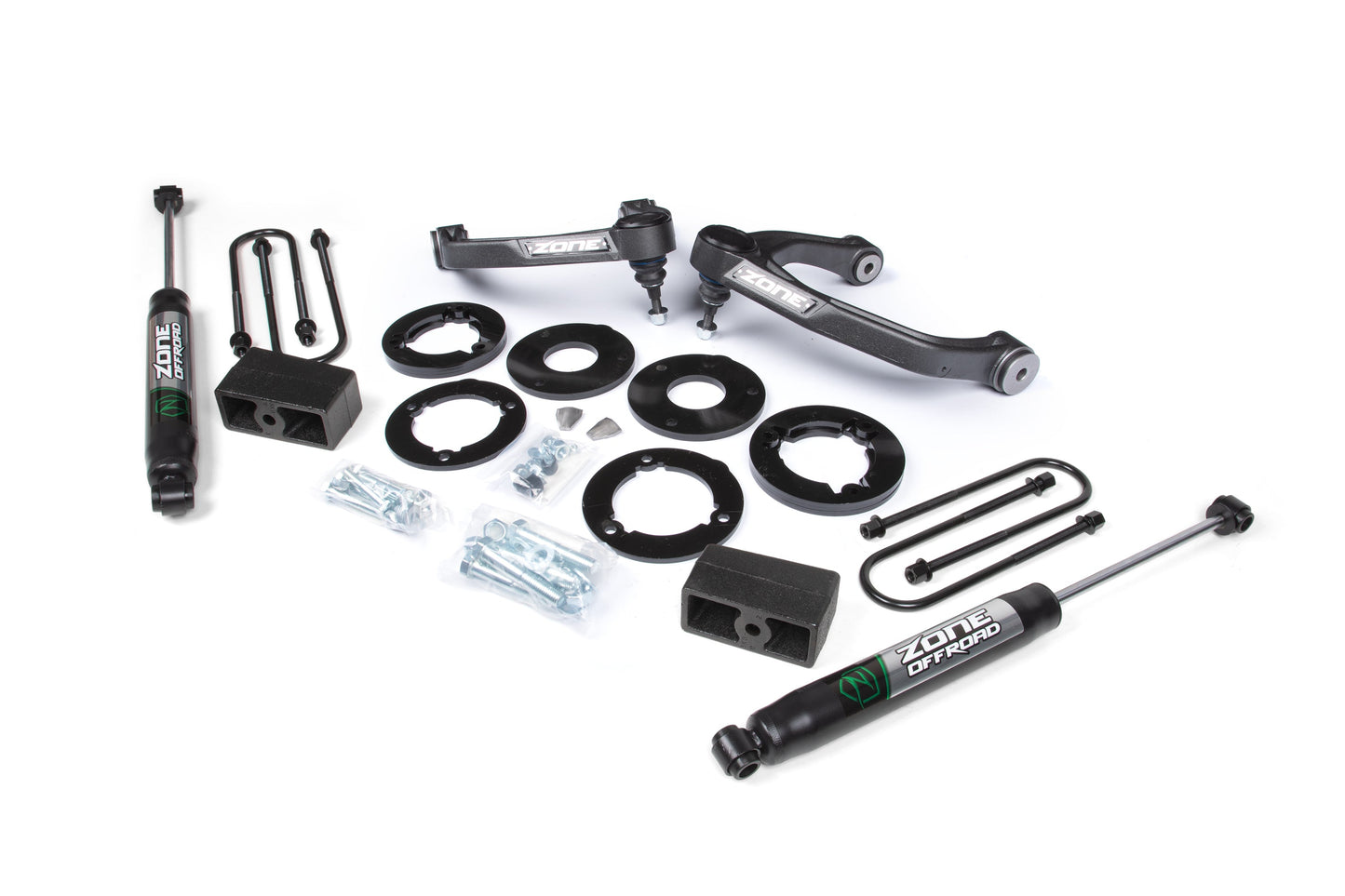

Specially designed for the 2025 + Chevy/GMC 1500 AT4 / Trail Boss trucks, these kits are designed to a higher standard, working within the parameters of the factory suspension and steering geometry to maximize potential while allowing optimal clearance for larger tires. Kits include strut spacers, adventure series upper control arms, hardware packs and steering stop extensions.

Features & Benefits

  • Maintains on-road handling while improving off-road performance.
  • Top mounted front strut spacer retains factory ride quality.
  • Adventure Series upper control arms for additional strength and durability.
  • Optionl FOX Adventure Series 2.0 rear shocks.

Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 18 x 9 and 5.5 in. Backspace
  • 33 x 12.5 with 20 x 9 and 5.5 in. Backspace

Rear Shock Option

Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

FOX 2.0 Adventure Series

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting silver coated finish

IMPORTANT NOTES

  1. Control arms typically add 1-2 degrees caster above stock alignment specifications.
  2. All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted.
  3. For replacement ball joints use service kit ZONF8202. Ball joint is directional and must be installed with the ‘dot’ facing either inward or outward on the vehicle, otherwise damage may occur.
  4. This kit will NOT fit AT4X or ZR2 models with the Multimatic Shocks
  5. Stock Wheels and Tires will require 1/4" Wheel Spacer to clear upper control arm.



Recommended Wheel and Tire Combinations:



    1. Chevy:
    2. 295/60 20x9 w/ 6.18-5.5" BS
    4. 35/12.50 18x9 w/ 20x9; 5.5" BS *
    5. 285/55 20x9; 285/60 18x9; 285/65 17x9 w/ 6.18-4.5" BS *
    6. 285/60 20x9; 285/70 18x9; or 285/75 17x9 w/ 6.18" to 5.5" BS
    7. GMC:
    8. 295/55 20x9 w/ 6.18-5.5" BS
    9. 33/12.50 18x9 w/ 20x9; 5.5" BS **
    10. 295/60 20x9 w/ 6.18-5.5" BS **
    11. 285/55 20x9; 285/60 18x9; 285/65 17x9 w/ 6.18-4.5" BS *
    12. 285/60 20x9; 285/70 18x9; or 285/75 17x9 w/ 6.18" to 5.5" BS

  1. INSTALLATION

  2. Installation Guides :

    Download Guide 1

    Download Guide 2

    Est. Install Time :

    3-4 hrs

    Difficulty Level :

    Moderate

    Tools Needed :

    Cut-off Tool

    SPECIFICATION

    • Front Lift Method : Strut Spacer
    • Front Lift Height : 1.75"
    • Rear Lift Method : Block
    • Rear Lift Height : 1"
    • Shocks Included : Yes
    • Lift Height : 0-1.5"

    FITMENT

    Year Make Model Submodel Drive Type Fuel Type Position Lift Height
    2025 Chevrolet Silverado 1500 Custom Trail Boss ALL ALL Front and Rear 1.75"
    2025 Chevrolet Silverado 1500 LT Trail Boss ALL ALL Front and Rear 1.75"
    2025 GMC Sierra 1500 AT4 ALL ALL Front and Rear 1.75"
    2026 Chevrolet Silverado 1500 Custom Trail Boss ALL ALL Front and Rear 1.75"
    2026 Chevrolet Silverado 1500 LT Trail Boss ALL ALL Front and Rear 1.75"
    2026 GMC Sierra 1500 AT4 ALL ALL Front and Rear 1.75"
